INSTALLATION E1XPLANATIONS
1 Installation Explanations:

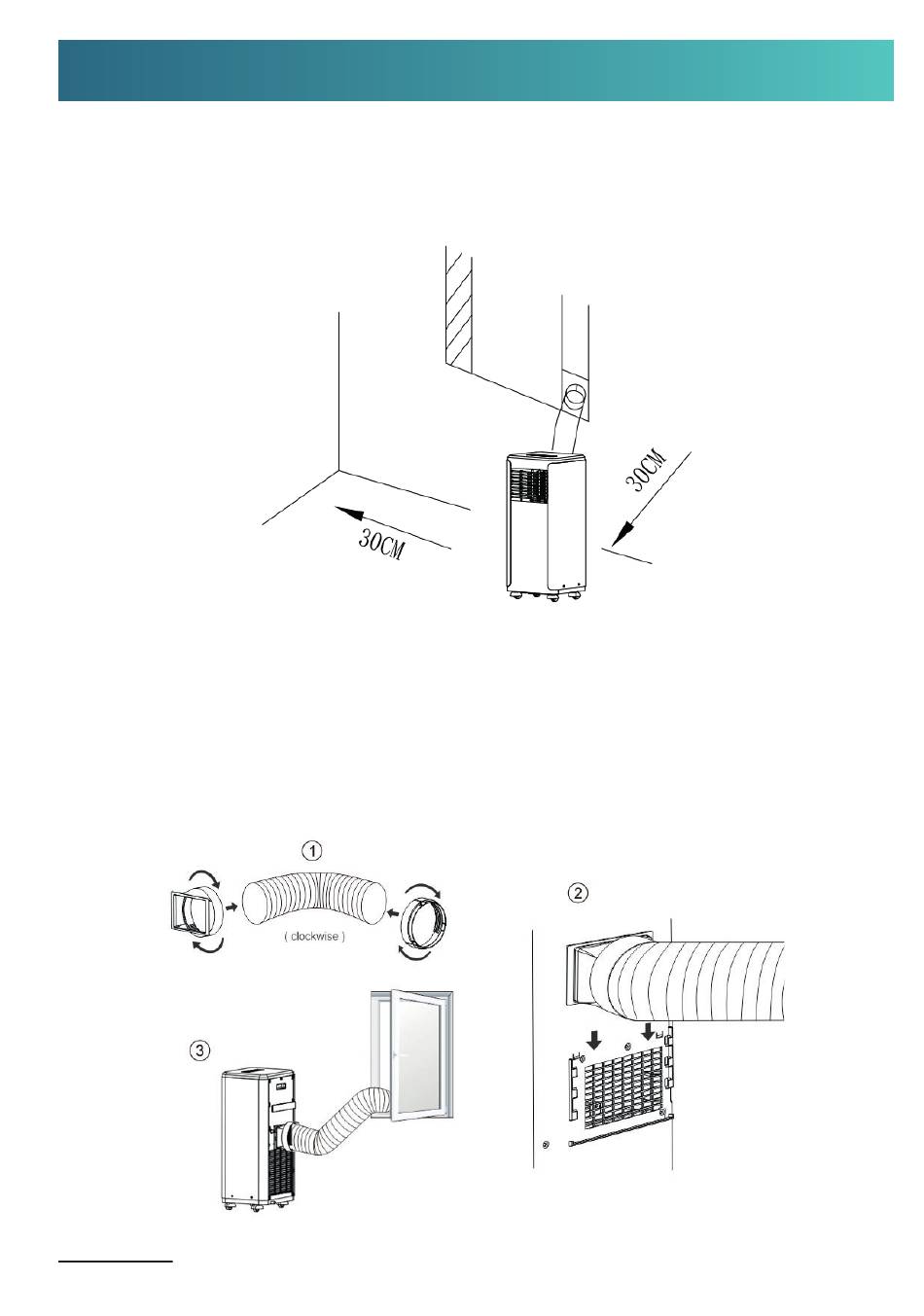

• A removal air-conditioner shall be installed in the fl at and empty place all around. Don't block the air
outlet, and the required distance around should be at least 30cm. (See Fig.3)
• Should not be installed in wet location, such as the laundry room.
• Socket wiring should be in accordance with the local electric safety requirements.
2 Introduction to Exhaust Hose Installation
A) Temporary installation
1. Twist the housing adaptor and the window Connector to the ends of the exhaust hose.
2. Insert the fi xing clip of the housing adaptor into the openings at back of the air conditioner
(see Fig.4).
3. Put the other end of the exhaust hose to the near windowsill.
1
Fig. 3
Fig. 4
