6. Detalii tehnice
Material corp yala
Material butuc si zavor
Alimentare
Timp operare
Durata de viata
Grosime recomandata
pentru usa
Chei incluse
Dimensiuni
Temperatura de
functionare
Nichel satinat
Alama
7 - 12 V d.c. / 2-3.5A
0,5 s la 12 V
cel putin 200.000
deschideri
35 - 50 mm
Da, 3 buc.
125,5 x 101 x 39 mm
-30℃ ~ 50℃
MANUAL UTILIZARE

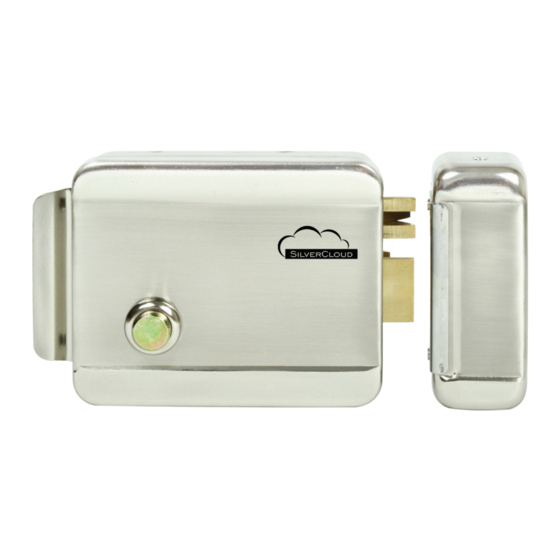

YALA ELECTROMAGNETICA SILVERCLOUD YR300
CU BUTUC, CU DESCHIDERE PE PARTEA DREAPTA, NC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SilverCloud YR300
Summary of Contents for SilverCloud YR300
- Page 1 6. Detalii tehnice Material corp yala Nichel satinat MANUAL UTILIZARE Material butuc si zavor Alama YALA ELECTROMAGNETICA SILVERCLOUD YR300 CU BUTUC, CU DESCHIDERE PE PARTEA DREAPTA, NC Alimentare 7 - 12 V d.c. / 2-3.5A Timp operare 0,5 s la 12 V cel putin 200.000...
- Page 2 1. Functii TOCUL 4. Schema instalare USII MARGINEA USII - Poate fi actionata atat electric, cat si manual. Are functii de securitate ridicata. - Compatibila cu sisteme de interfonie sau sisteme de control acces. PENTRU USA CU DESCHIDERE PE STÂNGA - Poate fi...
- Page 3 Satin nickel material USER MANUAL RIGHT SIDE ELECTRIC LOCK Cylinder, deadbolt and Brass hook latch material SILVERCLOUD YR300 WITH CYLINDER, NORMAL CLOSE Working voltage / 7 - 12 V d.c. / 2-3.5A current Operating time 0,5 s at 12 V more than 200.000...
- Page 4 1. Functions DOOR 4. Installation scheme FRAME DOOR EDGE - It supports electrical control or hand operation. It has functions of high guard and high security. - It is compatible with building door phones or access control systems. FOR LEFT HAND DOOR - It can be mounted in residential or commercial buildings, hotels, warehouses, schools etc.
