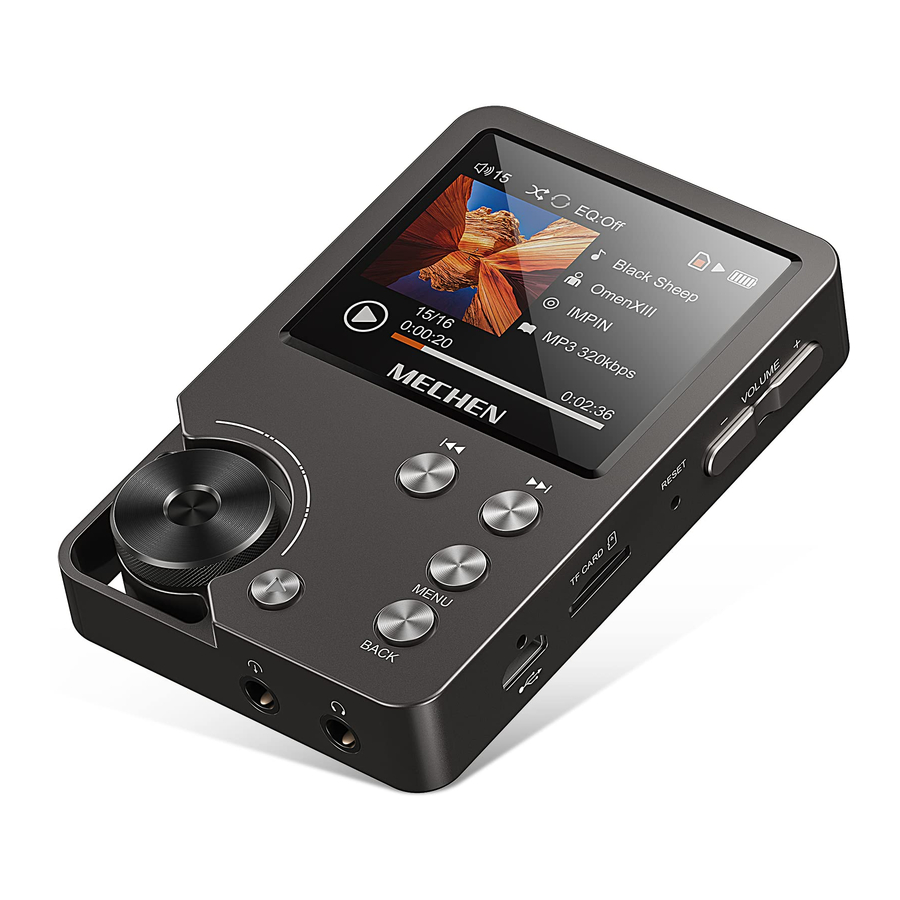

Mechen M30 - HIFI MP3 Player Manual

Welcome to download manuals at www.mechen.com.cn

Any after sales service needed, please feel free to contact us mechenservice@hotmail.com

Instruction of Buttons

Charge the Player

1. Use 5v, 1000mA Charger
   Plug one end of the USB cable into the USB port of a charger, the other end to the port on your device. After fully charged, disconnect the cable from your device by pulling it straight outward.
2. Charge by Computer
   Connect the device to a running computer via the included USB cable.

Note: If not used for a long time, you are supposed to charge the battery at least once every 2 months.

Quick Guide

Power on, off

Long press the power button for 3 seconds to turn on / off the player.

Lock screen

In standby or playing mode, short press the power button to lock the screen, and press it again to unlock. In this mode, These buttons (Last/Next song), PLAY/PAUSE, And VOLUME work. Only rotate clockwise/counterclockwise on the scroll wheel to increase/decrease the volume in this mode.

Back

Short press the "BACK" button to return to the previous menu. Long press to the home menu.

Volume

In any interface, press the "VOLUME" button to get into the v olume adjustment mode, then rotate the scroll wheel clockwise/counterclockwise or press the button to increase/decrease the volume, and press the "BACK" button to return.

Scroll wheel

Adjust the volume or browse the music track by rotating the scroll wheel.

Reset

If the device freezes, Poke the reset hole with a thin needle or hold the power button for 15s to restart it.

Data Transfer

Using the supplied USB cable, connect your computer and copy over media files as if it was a flash driver or use music management software such as Windows Media Player to transfer the files (not work for iTunes).

Main Functions

Music

Select "Music" on the main menu by pressing the button or rotating clockwise/counterclockwise via the scroll wheel and press the "MENU" button to get into the interface, then you'll find the related lists:

All songs: All songs you load up onto the memory card will be listed here. Select a song and press the "MENU" button to choose the option: Last Played, Now Playing(go to music playing interface), Play(Play the song you select), Add to Playlist(Add to the system's default playlist).

Artists: Sort songs by Artists

Albums: Sort songs by Albums Genres: Sort songs by Genres

Attention:

1. ONLY 4000 music tracks can be displayed in the music lists, please go to the folders to find the complete tracks.
2. If the songs you download contain both lyrics and cover, the player will priority display the lyrics instead of the cover.
3. CUE files supported. After you transferred CUE files to the player. Go "Music" and get into the songs list, Choose the song from CUE file and press"MENU" to the playing interface and press it again to go to the CUE playlist, all the songs inside will list here, Press "PLAY/PAUSE" button to play/pause.

Note:

1. The CUE files' name must be the same as the songs'.
2. The "Repeat folder" function won't work for CUE file.

Folder View

View all the folders you created.

Note:
The player does not support Bluetooth, Video, e-books, and pictures.

Equalizer

Select "Equalizer" on the main menu. Short press the "MENU" button to get into the interface, and pressbuttons to choose the optionincluding Rock, Pop, Soft, Jazz, Classical, Techno, Custom, and Off.

Custom settings: On the custom interface, press the "PLAY/PAUSE" button to choose the vertical axis and rotate the scroll wheel clockwise/counterclockwise to adjust the value you want them to, Press the "MENU" button to save the settings.

Note:
This player only supports sound effect adjustment with a sampling ratebelow 48KHz!

My Favorite

3 default playlists will list here, and you can add songs to each playlist in the playing interface. However, it is not reco mmended for you to sort your music here. The easiest way to create a playlist is to create some folders on your PC/Mac, and sort your music into these folders. Then transfer them to this player, you'll find these folders in the "Folder view" icon.

Play Settings

Select "Play setting" on the main menu, then you'll find the related lists:

Shuffle:On/Off(press " MENU" button to save). Songs will be played randomly, not in order.

Repeat:Repeat off/ Repeat1/ Repeat all/ Repeat Folder (Repeat folder means that it will only repeat the songs from the current folder where you are in.)

Default volume:
Memory: Memorizes the last volume value set when you turn it off

Custom: Memorize the volume value you just set The line level: Line output audio amplitude selection, including:

Volume synchronization: Line-output audio is controlled by volume adjustment

• 6db: Line-output audio is not controlled by volume, fixed at -6DB
• 0db: Line-output audio is not controlled by volume, fixed at-0DB

Settings

You can set Language, Update playlist, Brightness, Backlight timer, Sleep timer, Off timer, Format device, Factory settings here.

Auto upgrade: Update the firmware directly on the player.
(You need to transfer the firmware to the device first, and go " Setting", "Auto upgrade", And select "Yes" to update the device. After it's done, remember to turn it on by holding the POWER button. You could contact our technical support to get the recent firmware if needed.)

Support and Troubleshooting

Q: How to transfer music to the mp3 player?
A: Download music to your computer first, and then connect mp3 player with your computer thru charging cable. A new disk will pop on as flash driver, and drop all your musics to t he disk. You can create folders in the disk to sort your music.

Q: Why my computer can't detect mp3 player?
A: MECHEN Mp3 player can be paired for all computer systemwith latest USB driver. Please update your USB driver beforeplug in Mp3 player or try another charging cable. It you still can't connect the Player to you computer, please contact MECHEN customer service team for additional help.

Q: How can I continue audio play after turn the player off?
A: Turn the player off on any interface, it will continue playing audio when you turn it on again.

Q: How to insert the SD card into the card slot successfully?
A: Push it in with your fingernail tip till you hear a "Click! ", Push again and the card will pop back out of the SD card slot.

Q: How to repeat music from a single album ONLY?
A: Set the play mode to"Repeat Folder"in the"Play Settings" icon on the main menu. The function works for Artists, Albums, Genres, 3 default playlists, and folders you created your own on PC. Not work for CUE files.
