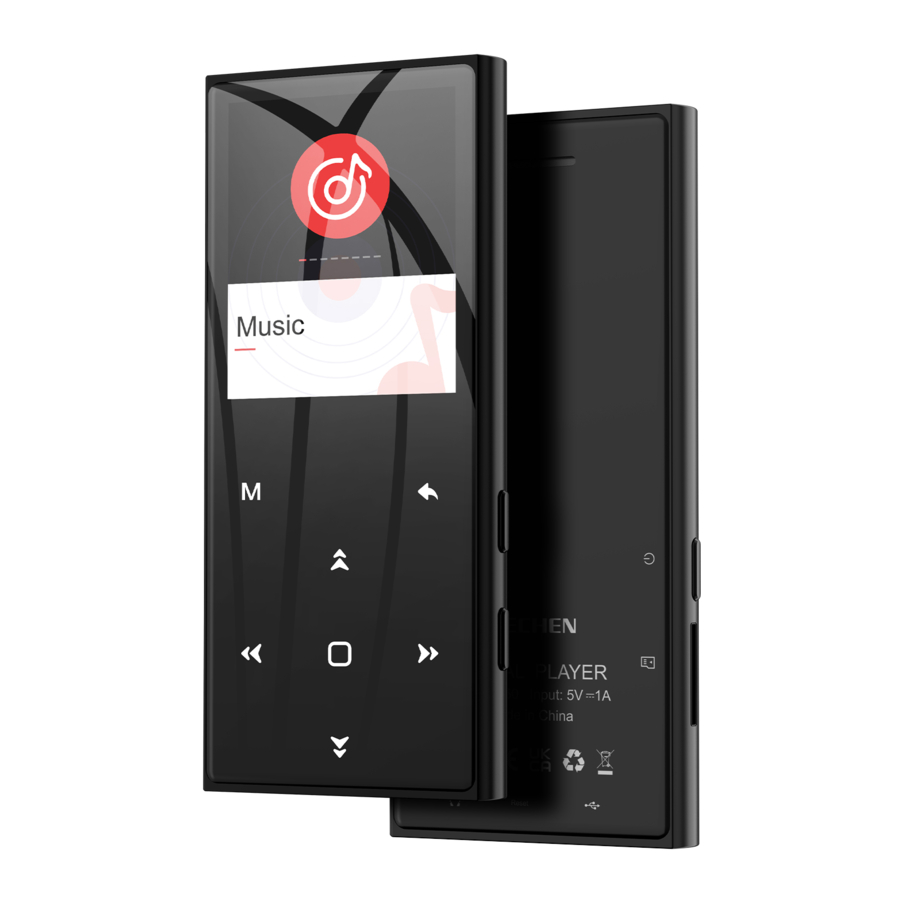

Mechen D50 - Bluetooth MP3 Player Manual

Introduction

Thanks for your purchase! Any after sales service needed, please feel free to contact us mzmechenservice@hotmail.com

Instruction of Buttons

Basic Operations

	Press it once, to back to previous page
	Hold down the button to go back to home menu directly
	Press it once to open the sub-menu
	Long press it to lock/unlock the device
	To confirm the operations
	Play or pause
	Move to the next station in FM radio>Auto tune
	Move to the previous track when viewing music lists in Music
	Move to the previous folder in Folder view
	Volume + when playing a song
	Move to the next track when viewing music lists in Music
	Move to the previous folder in Folder view
	Volume - when playing a song
	Switch to the previous track when playing a music
	Move to the previous station in FM Radio >Manual tune
	Move to the previous picture when viewing in Photos
	Switch to the next track when playing a music
	Move to the next station in FM Radio > Manual tune
	Move to the next picture when viewing in Photos

Charge the Player

1. Use 5V 1A Charger
   Plug one end of the USB cable into the USB port of a charger, the other end to the port on your device. After fully charged, disconnect the cable from your device by pulling it straight outward.
2. Charge by Computer
   Connect the device to a running computer via the included USB cable.
   Note: To prevent battery deterioration, you are supposed to charge the battery at least once a year.

Quick Guide

Multi-functions
Music, Bluetooth, Favorite, FM Radio, Recorder, Photos, Setting, Folder.

Power on, off
Long press the power button for 3 seconds to turn on / off the player.

Reset
Long press the power button for 15 seconds to reset this unit.

Touch Control
Tap the keys to control the MP3 Player.

Lock Screen
Long press the button M to lock the screen in case any wrong operation caused by unintentional touch. Unlock it by long press the button M again.

Memory Expansion
Support up to 128GB TF card.

Main Functions

Music

Menu under Music:
All songs, Resume, Now Playing/Last Played, Artists, Albums, Genres, Playlists, Update playlist, Card Folder(if you' ve insert a memory card), Local Folder.

When the song is being played, tap the button M onthe top left, you will find the sub-menu below.

when playing a song, tap the button

MP3, WAV, FLAC, APE, OGG, these music formats are supported

Data Transfer
Using the supplied USB cable, connect your computer and copy over media files as if it was a flash driver or use music management software such as Windows Media Player to transfer the files (not work for iTunes).

Attention:

1. ONLY 4000 music tracks can be displayed in the music lists, please go to the folders to find the complete tracks.
2. If your computer cannot detect the MP3 Player, pls update your USB driver or try another cable.

Favourite

This is a shortcut for you to enter the saved playlist(3 defaulted playlist, cannot create new playlist.)

Attention:
When you play songs from Favorite, it plays or repeat the songs from the 3 playlist ONLY. If you want to listen to other songs, please go back to Music and visit All songs to play

Bluetooth

How to pair D50 with Bluetooth devices?

1. Follow the routes: Bluetooth > Bluetooth on/off > Bluetooth on to turn on the Bluetooth mode.
2. Search for Device to find available Bluetooth device around.
3. Go to Device list and choose the Bluetooth device you want to pair, press the button @ to confirm Pair.
4. Once the Bluetooth connection is done, you will find a green Bluetooth icon on the screen.


Attention:

1. D50 cannot pair with Smart Phones.
2. Must select Bluetooth to reconnect with your Bluetooth device if you turned off the MP3 Player last time.
3. If you have connected your Bluetooth earphone with your mobile phone, please disconnect them before pairing with the D50, or the connection would be a failure.
4. When listen to radio by Bluetooth, wired headphones are needed as radio antenna.


FM Radio

Reminder: Must connect earphones to use as radio antenna!

Select FM Radio

Tap the button M to find more.

when playing the FM Radio, tap the button

Photos

Photos format in JPG and BMP ONLY

Settings

Check here to get what's in Settings.

Settings

Recorder

Below are what you' ll find in Recorder.

Recorder

You can not only record from the microphone but also from Line-In ( transfer audios from smartphone to this MP3 player directly)

How to record from Line-in?

1. Connect the mp3 player with smartphone by line-in cable
2. Select Recordings > Record from > Line in
3. Press the button to go back, then select Start voice recording
4. After saved the file, you can play it from Recordings library

Folder

MP3 and SD card' s memory will be sorted by edit time, the first file be dropped in will be listed at the top.

If you renamed the file or do some other modifications, the file goes to the bottom of the list. This trick only works for "Folder", not "Music". Don' t forget to add a bookmark when you use audio book.

Specifications
