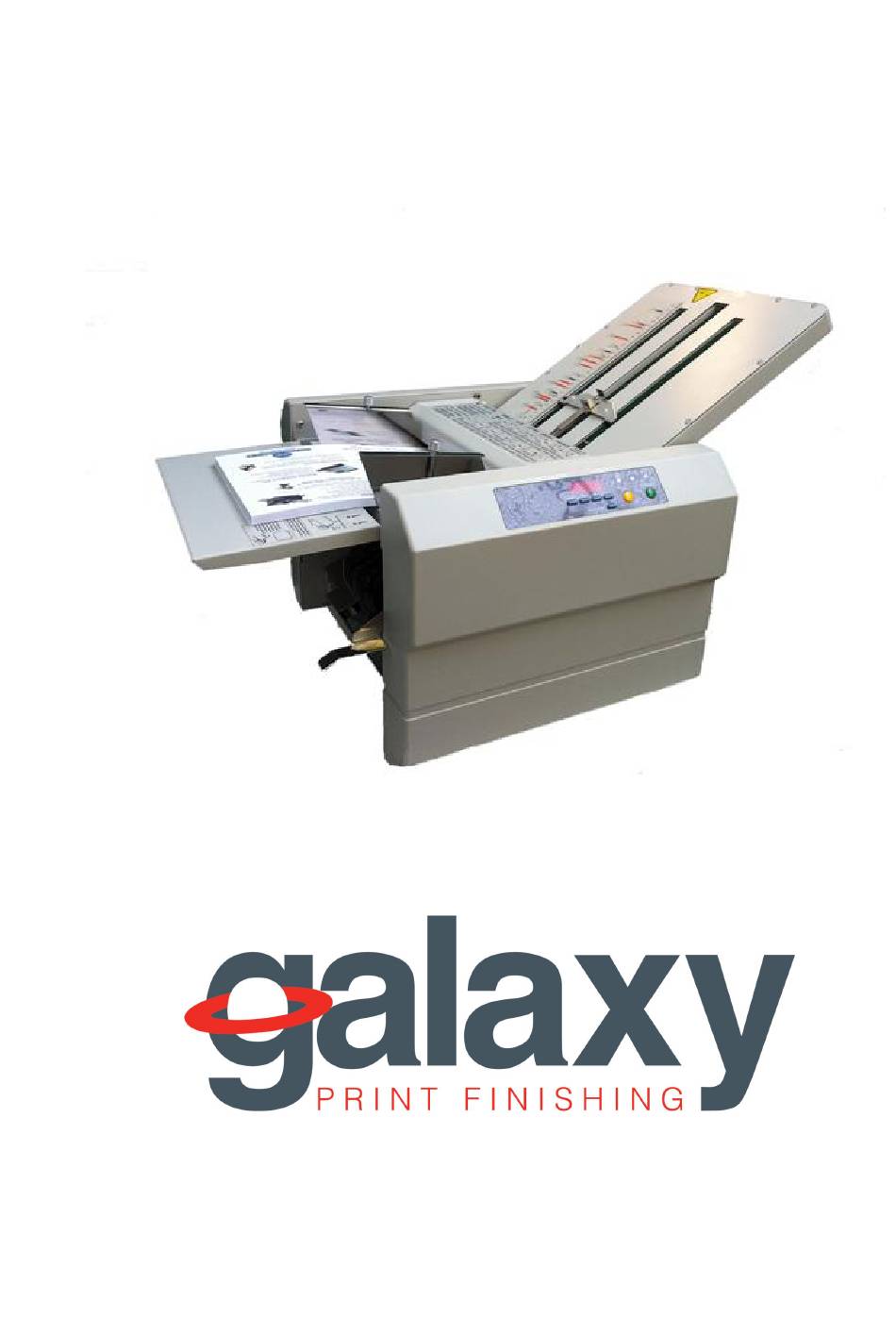

- Page 1 INSTRUCTION MANUAL Galaxy FM600 Paper Folding Machine Read this Operation Manual before using this machine. Keep the Instruction Manual with care in a fixed storage place so that it may be available whenever required.
-
Page 2: Safety Instructions
Safety Instructions Danger This Symbol stands for immediate danger, threatening the life and health of persons. Disregarding these instructions may cause severe damage to health and even serious injuries. Caution This symbol stands for an endangering situation that may occur. Disregarding these instructions may lead to slight injuries or damage to property. - Page 3 Caution Do not let hairs, a necktie, or necklace hang above the drive of the machine. Doing so may cause an injury. Do not put the machine on an unstable place such as a shaky stand or a slant floor. Doing so may cause the machine to drop or fall down, causing an injury. Do not put the machine in a moist or dusty place.
-
Page 4: Table Of Contents
Introduction Thank you very much for purchasing the Galaxy FM600 Paper Folding Machine. This machine enables users to achieve greater efficiency in clerical work by releasing them from paper-folding work that has manually been performed in the past. Please read this Operation Manual carefully before using this machine. -
Page 5: Information Before Use
1 Information Before Use (1) Precautions on Installation Caution Do not install it in an unstable place such as on a faltering bench or an inclined place. It may fall down or drop and cause an injury. Do not install it in a dusty place or a place of high humidity. It may cause a fire, or an electric shock. -
Page 6: Number Name
(3) Part Name 16 17 18 Number Name Number Name Roller cover (10) Table 1 Left side cover (11) Control panel Paper feed roller (12) Paper feed table Paper guide (13) Table 2 Auxiliary feed table (14) Right side cover Paper exit roller (15) Paper feed table lever... - Page 7 (4) Operation Panel and Functions Designation/Indication Function Test key Test folds two sheets without counting. Starts and stops the machine. Start/Stop key Clears counter indication resets error. Clear/Reset key Numerical key Inputs the desired number for subtraction counting . Show the number of sheets. Counter It lights when paper stock runs short, or indicates the Check lamp...
-
Page 8: How To Use
2 How to Use 1. Preparation (1) Setting Table 1 and 2 Fit (a) and (b) of Table 1 and (c) and (d) of Table 2 on the studs (a), (b), (c) and (d) at the left and right sides of the side plate. When setting Table 1, be sure to put the stopper plate in the center. -
Page 9: Operation Procedure
* Place the paper with its printed side down in case of fold-out. (5) Place the paper on the feed table so that it touches the paper lightly, and then tighten the paper setscrew. (6) Lower the paper feed table lever and set the paper. * If the paper does not come in contact with the paper feed roller, it may be fed improperly. -
Page 10: Stopper Plate
stopper adjustment knob. (3) Test Folding Fold position adjustment knob Stopper plate Press the Test key to feed two sheets of paper. Check if the paper has been folded correctly by examining the second one of the two folded sheets. * When the fold position is not correct, refer to “Adjustment Paper Fold Position”. -
Page 11: Table
(5) Slant Ejection Adjustment Turn the slant ejection adjustment knob to the right if the lower side of the folded paper slants to the right. Turn the knob to the left of the lower side slants to the left. * In cases other than single fold, place the folded paper with its face down on Table 1 and make slant ejection adjustment. -
Page 12: Maintenance
3 Maintenance (1) Before cleaning the machine, be sure to switch the power off and pull the power plug from the outlet. (2) When the unit is not in use, put its cover in place to prevent dust, paper dust, etc. to accumulating on the paper fold rollers. -
Page 13: Trouble Shooting
4 Trouble Shooting Trouble Possible Cause Measures Loosen the paper sufficiently or feed the Paper stuck just after it is printed paper after it is dry. Clean the paper feed separator using the Stains on the paper separator unit cleaner. The paper is not fed Clean the paper dust or ink on the paper Stains on the paper feed rubber roller. -
Page 14: Specifications
5 Machine Specifications Model Galaxy FM600 Paper Folding Machine 128x182 mm (B6) to 297 x 432 mm (A3) or 3.5” x 5.0” to 11” x 17” Paper size B7 size is for SINGLE only. B6 size cannot be folded into GATE.
