Galaxy PH40V Instruction Manual

Pharmaceutical paper folding machine
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
- PH40V
- PH45V

Advertisement

loading
Need help?

Need help?

Do you have a question about the PH40V and is the answer not in the manual?

Questions and answers

Related Manuals for Galaxy PH40V

Summary of Contents for Galaxy PH40V

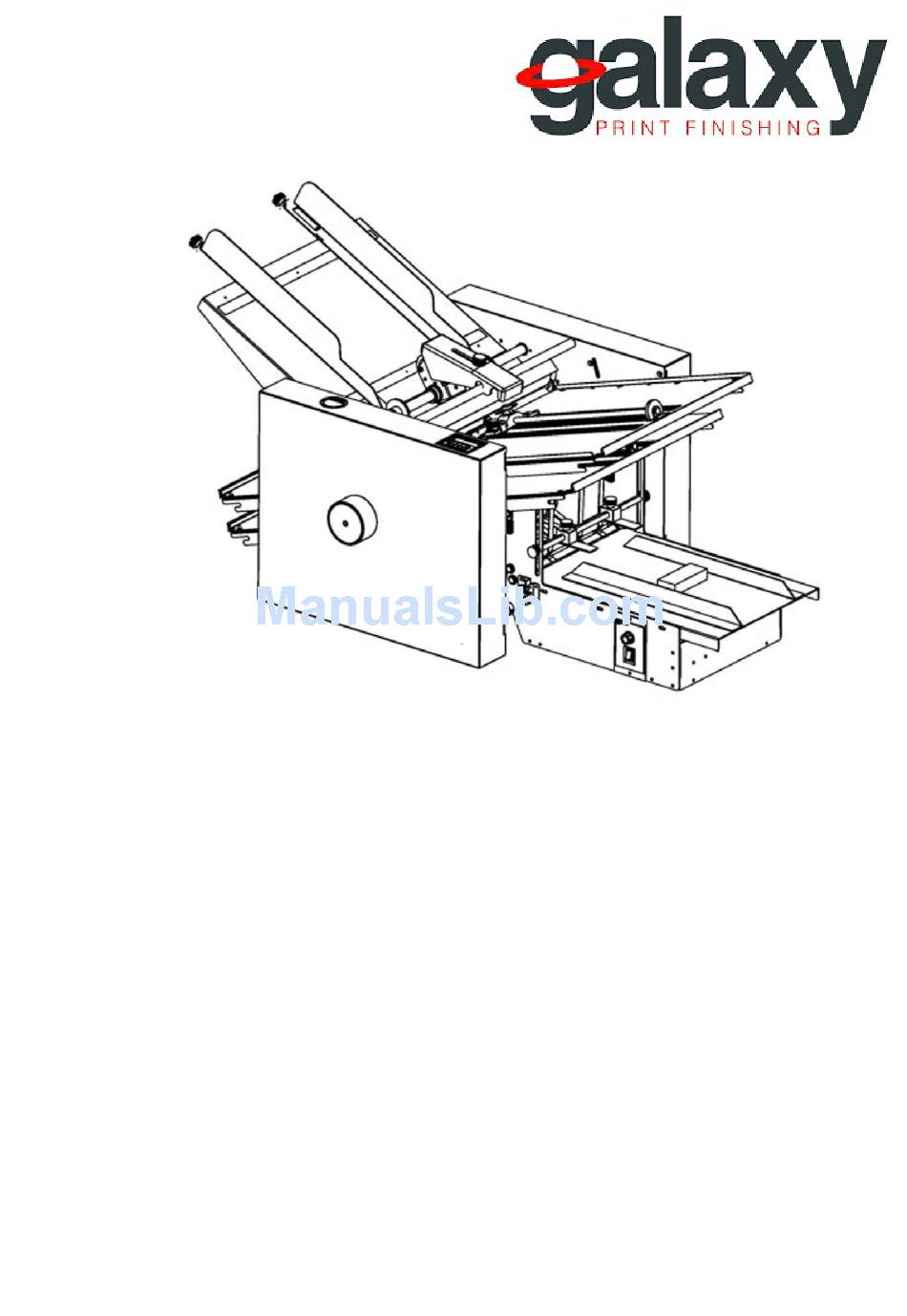

  • Page 1 INSTRUCTION MANUAL - PH40V - PH45V...
  • Page 2 CONTECTS SAFETY)..........................)1! INTRODUCTION)......................)2! SPECIFICATION)&)COMPONENTS)................)5 INSTALLATION)INSTRUCTIONS).................)6 ! A.! FEED TABLE)......................)6! B.! FOLDING)PLATES)....................)6! C.! VERTICAL STACKER)..................)6! FOLD)PRINCIPAL)AND)STYLE)GUIDE)................) FOLD)SETUP)ADJUSTMENT)..................)9 OPERATION)AND)FOLDS)....................)2 FOLD)CORRECTIONS)....................)2 OPTIONAL)ACCESSORIES)...................)26 A.! SCORING)OR)PERFORATING)WHEEL)..............)2 10.!FAULTS,)CAUSE)AND)REMEDY)..................)27!
  • Page 3 AFETY Please make sure to read this manual for safety in operation before using this product. Take good care of this manual and keep it where you can always find it. This manual contains cautions and warnings in order to prevent harm to the purchaser and other persons, lives, or the damage to the properties.
  • Page 4 The components/accessories available are as follow: • 4-Plate Folding Machine, PH40 & PH45 • Counter • Batch-Counter • Conveyor Belt • Vertical Stacker with the PH40v & PH45v...
  • Page 5 The model number shows the machine configuration, for example: PH-40 DF-30 Feed width of 300mm 4-Plate Folding Machine Vertical Stacker Counter DF-45 Feed width of 350mm 4-Plate Folding Machine Vertical Stacker Batch-Counter Note: 1. For all 4-Plate Folding Machine Unit configurations, Counter is included. 2.

  • Page 6: Specification

    & C PECIFICATION OMPONENTS Model PH40V PH45V Max. paper size (mm) 300(W)x 500(L) 350(W)x 540(L) Min. paper size (mm) 80(W) x 100(L) Folding paper weight (gsm) 45 to 150 Min. folding size (mm) Dimension (LxWxH in mm) 1100x525x510 1100x570x510 Weight (kg)

  • Page 7: Folding Plates

    A. Feed Table Hook in the Feed table. First place it on the support shaft, slide it down at an angle until the lower slots engage with the pins on the side panels. The upper slots must engage with the support shaft. After which, install the two bracket guides.
  • Page 8 Below are some of the common folds and setup guide that you will come across during your folding. With the 4-plate machine, there more combinations essentially based on these principal and setup. Basic Fold Style Fold Style Setting Guide Set To Paper Type of fold Fold Plate Length...
  • Page 9 Triple Parallel (8-Page) Zig-Zag/Accordion** 8 - Page Accordi on ** * The dash line – means to insert the fold plate with the paper deflector side into the machines. **For Accordion Fold, fold plate stops should be set so they increase by 1 mm from one plate to the next.
  • Page 10 • Paper Thickness Adjusting Knob: Variable adjustment for thickness of papers between 45-150 gsm. • Feeder: With adjustable infeed pressure roller. • Folding plates: With micro-adjust for length and angle setting, fitted with scales. • Vertical Stacker: Adjust the stacker wheels according to the paper size. •...
  • Page 11 Please remove the hand wheel before switching on the machine. Adjust Paper Thickness Paper thickness is to be adjusted so that the feeder only feeds one piece of paper at a time. By adjusting to the pressure roller, you can limit the passage gap to any paper thickness.
  • Page 12 Adjust Feed Guide First align the left feed bracket guide (1) so that the sheet is fed centered on the table as far as possible. A notch (2) in the table under the removable center panel marks table center, but you can also align the sheet using the feed or pressure roller as gauge.
  • Page 13 Paper Stack It is important to fan the paper stack before placing it on the feed table: Grip the left end of the paper with your left hand and bend it towards the right. Press on the right side of the paper with your right hand, and then release your left hand.
  • Page 14 Feeder Pressure To adjust the feed pressure, first place the feeder unit at its rest position (Infeed roller raised). Set the pressure of roller on feeder with the knurled nut (1). For paper weight from 60gsm to 90gsm, place the nut in the middle, neutral position.
  • Page 15 When the pressure is set, place the feeder to its work position. To sum up, set paper feed in the following steps: • Set gap between feed and pressure roller approximately to paper thickness. • Align guides. • Set infeed roller contact pressure with the knurled nut on the feeder. Setting the Folding Table According to the folding type, adjust the folding plate.
  • Page 16 needed, take it out and fit it reversely with the deflector (6) end into the machine. When the setting is completed, please test folding several papers first. You can fine-tune the stops for length and angle with the knurled screws. Angle Micro-Adjustment (2) Vertical Micro-Adjustment (3) Connect the Counter (for model number C &...
  • Page 17 Vertical Stacker Installation of the vertical stacker Insert the vertical stacker into the support shaft in the rear of folding machine using the groove (1) provided. Adjustment of the Vertical Stacker Belts Adjust the belts according to the width of the folded paper. The belt should have at least 10 to 15mm gap to the edge of the paper.
  • Page 18 Maximum Fold Size Adjustment Position the maximum size folded paper at the center of the stacker. Adjust the upper outer belt to space 1/4 of the paper length from the centre. The lower outer belt should be positioned as such that it leaves around 10~15mm to the edge of the paper.
  • Page 19 For this reason, it is advisable to place your left hand on the stack before switching on the power. Release the paper only when the machine has run up to the selected speed (you will hear the steady hum). The same applies when you switch the machine off with sheets of paper remain on the feed table.
  • Page 20 PERATION AND FOLDS Increase/Decrease, Left/Right Enter and Test Mode Selection Start/Stop Safety Caution Quantity Se tting and Counter Screen Select Button – Select “ Count ” Mode In Count 1. Choice between Auto/Manual for Counter Mode 2. Choice between increment or decrement count 3.
  • Page 21 In Count Mode • Press to move left for digit position • Digit flashes indicating the current position In Count Mode • Press to move right for digit position • Digit flashes indicating the current position When the counter is set and machine at the stop position, press Right button to perform test fold (3 sheets).
  • Page 22 1. Press to enter Count Mode. Auto and Manual LED will blink. Press to select Auto mode. Add and Sub LED will blink. Press to select Sub for decrement count style Use the direction buttons to set the number of sheets to fold. 2.
  • Page 23 Mark the first sheet you run through the machine with a cross on the top side, so that you know in which direction it has been fed. If it leaves the machine with the fold diagonally shifted from the straight line, first fold it by hand to an even more acute diagonal offset from the straight, then place it again on the feed table in the correct running direction.
  • Page 24 tape to the table. Place the fanned stack on top, holding it in position with your left hand and guiding it with the right. Cautiously slide the stack up to the feed roller working range so that the fanning will not collapse again. As the top sheet must be seized first, slide it closest to the feeder.

  • Page 25: Optional Accessories

    D irection of View Turn the adjustment nut (1) Anti-Clockwise: This action will push the rod and close the gap between the rollers. This step is to increase pressure on the fold rollers PTIONAL ACCESSORIES A. Scoring!or!Perforating!Wheel! First, mark the scoring position on a test paper then adjust the ejector roller to the paper edge.
  • Page 26 Perforating Stripper Perforating stripper eliminates the tendency of paper sticking on the perforating wheel, which might cause a jam during the output. Install perforating stripper on the hold - down roller shaft. 10. F AULTS AUSE AND EMEDY...
  • Page 27 Fault Cause Remedy Intermittent(and( 1.(Feed(bracket(set(too(narrow( 1.(Loosen(the(bracket(by(a(little( irregular(feed( 2.(Gap(between(feed(and( 2.(Increase(gap(with(setting(knob(( pressure(roller(too(narrow( 3.(Infeed(roller(pressure( 3.(Increase(feed(on(the(feeder(or( insufficient(or(roller(worn(out( replace(infeed(roller( 4.(Feeder(Shaft(drive(belt(worn( 4.(Replace(belt( Very(lightDweight( 1.(Infeed(roller(pressure(too( 1.(Reduce(feed(pressure(with( strong( knurled(nut( paper(grade( 2.(Gap(between(feed(and( 2.(Increase(gap(with(setting(knob(( becomes(creased( pressure(roller(too(narrow( 3.(Speed(too(high( 3.(Reduce(speed( 4.(Paper(runs(at(an(angle( 4.(Correct(with(feed(brackets( 5.(Pressure(of(first(pair(of((fold( 5.(Have(pressure(and(parallel(fold( rollers(too(strong(our(uneven( roller(alignment(set(by(our( service(engineer(((fold(roller( arrangement(is(suitable(for(all( paper(grades(in(general(use,(but( for(some(very(thin(papers,(fold( roller(pressure(can(be(altered()( Two(or(more(sheets( 1.(Gap(between(feed(and( 1.(Narrow(gap(with(setting(knob( pressure(roller(too(wide(...

This manual is also suitable for:

Ph45v
