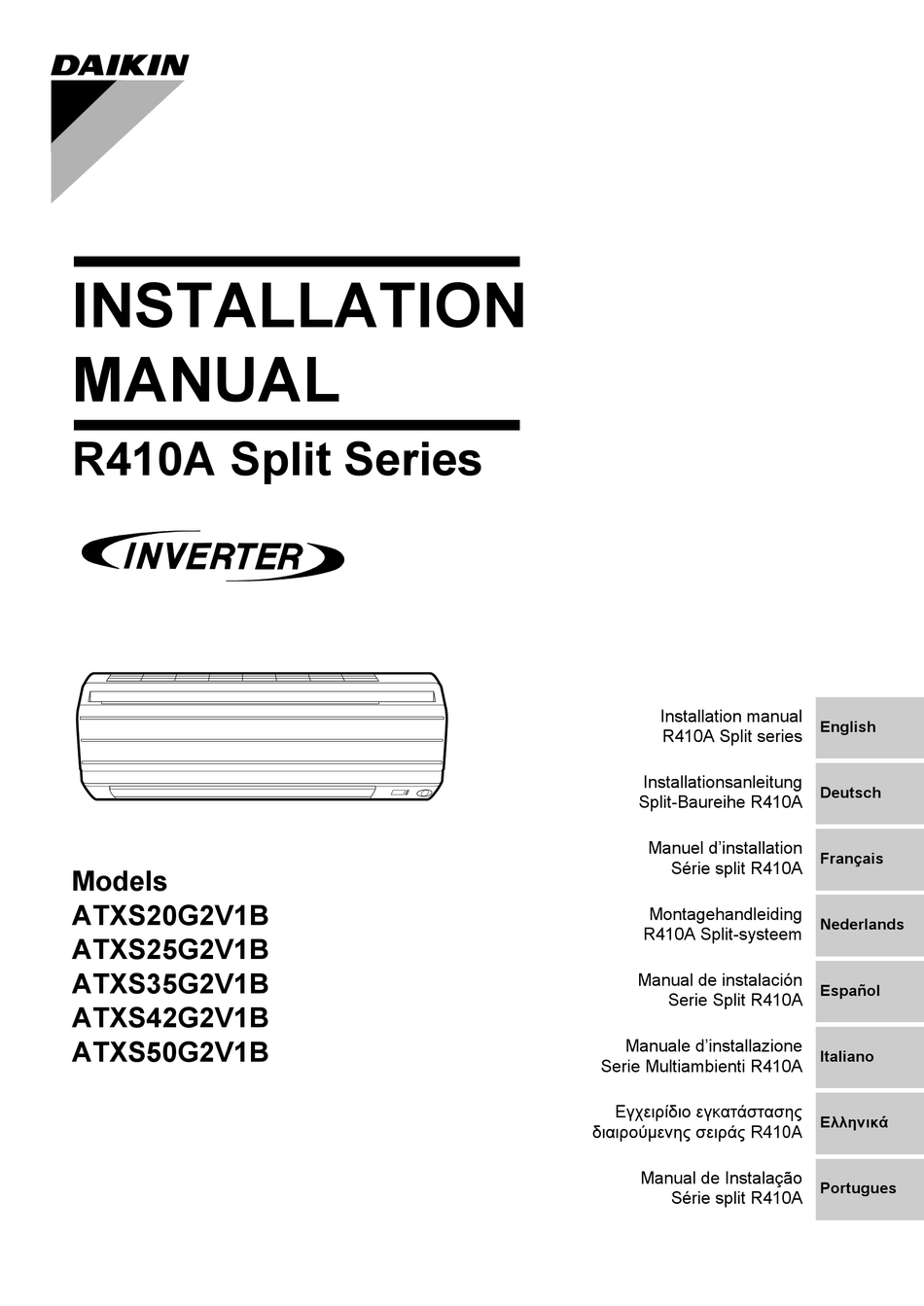

  • Page 1 R410A Split series Installationsanleitung Deutsch Split-Baureihe R410A Manuel d’installation Français Série split R410A Models ATXS20G2V1B Montagehandleiding Nederlands R410A Split-systeem ATXS25G2V1B ATXS35G2V1B Manual de instalación Español Serie Split R410A ATXS42G2V1B ATXS50G2V1B Manuale d’installazione Italiano Serie Multiambienti R410A Εγχειρßδιο εγκατÜστασηò ΕλληνικÜ διαιροýìενηò σειρÜò R410A Manual de Instalação...
  • Page 2 3SB64417-7B...
  • Page 3: Safety Precautions

    Safety Precautions • The precautions described herein are classified as WARNING and CAUTION. They both contain important informa- tion regarding safety. Be sure to observe all precautions without fail. • Meaning of WARNING and CAUTION notices WARNING ..Failure to follow these instructions properly may result in personal injury or loss of life. CAUTION ..
  • Page 4: Choosing An Installation Site

    Accessories – ndoor unit Mounting plate Remote controller holder Operation manual Titanium Apatite Dry batteries AAA. LR03 Installation manual Photocatalytic (alkaline) Air-Purifying Filter Indoor unit fixing screws Wireless remote controller (M4 × 12L) Choosing an Installation Site • Before choosing the installation site, obtain user approval. Indoor unit.
  • Page 5: Installation Tips

    Installation Tips Removing and installing front panel. • Removal method Hook fingers on the panel protrusions on the left and right of the main body, and open until the panel stops. Slide the front panel sideways to dis- engage the rotating shaft. Then pull the front panel toward you to remove •...
  • Page 6: How To Set The Different Addresses

    How to set the different addresses. When 2 indoor units are installed in 1 room, the 2 wireless remote controllers can be set for different addresses. 1) Remove the metal plate electrical wiring cover. (Refer to the Removal/attachment methods of metal plate electrical wiring covers.) ADDRESS 2) Cut the address jumper (JA) on the printed circuit board.
  • Page 7 Installation Tips Attachment methods of metal plate electrical wiring covers Attach the metal plate electrical wiring covers as shown below. Type A 1) Lean the metal plate electrical wiring cover as shown in the figure and attach tab (1) on the lower side to the electrical wiring box.
  • Page 8: Indoor Unit Installation Drawings

    Indoor Unit Installation Drawings How to attach the indoor unit. Mounting Hook the claws of the bottom frame plate to the mounting plate. If the claws are difficult to hook, A Mounting plate remove the front grille. Clip How to remove the indoor unit. Push up the marked area (at the lower part of the front grille) to Bottom frame...
  • Page 9: Indoor Unit Installation

    Indoor Unit Installation Installing the mounting plate. • The mounting plate should be installed on a wall which can support the weight of the indoor unit. 1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring points on the wall.
  • Page 10: Boring A Wall Hole And Installing Wall Embedded Pipe

    Boring a wall hole and installing wall embedded pipe. • For walls containing metal frame or metal board, be sure to use a wall embedded pipe and wall cover in the feed-through hole to prevent possible heat, electrical shock, or fire. Inside Outside •...
  • Page 11 Indoor Unit Installation 3-2. Left-side, left-back, or left-bottom piping. Remove pipe 1) Attach the drain hose to the underside of the refrigerant pipes port cover here for left- with adhesive vinyl tape. side piping. Left-side piping Left-back Remove pipe port cover here for left-bottom piping. piping Left-bottom piping 2) Be sure to connect the drain hose to the drain port in place of a drain plug.
  • Page 12: Drain Piping

    Wiring. ith a multi indoor unit , install as described in the installation manual supplied with the Multi outdoor unit. 1) Strip wire ends (15mm). 2) Match wire colours with terminal numbers on indoor and outdoor unit’s terminal blocks and firmly screw wires to the corre- sponding terminals.
  • Page 13: Refrigerant Piping Work

    Refrigerant Piping Work ith a multi indoor unit , install as described in the installation manual supplied with the Multi outdoor unit. Flaring the pipe end. (Cut exactly at 1) Cut the pipe end with a pipe cutter. right angles.) Remove burrs 2) Remove burrs with the cut surface facing downward so that the chips do not enter the pipe.
  • Page 14: Pump Down Operation

    2-1. Caution on piping handling. Wall Be sure to 1) Protect the open end of the pipe against dust and moisture. place a cap. 2) All pipe bends should be as gentle as possible. Use a pipe bender Rain If no flare cap is for bending.
  • Page 15: Trial Operation And Testing

    Trial Operation and Testing Trial operation and testing. 1-1 Measure the supply voltage and make sure that it falls in the specified range. 1-2 Trial operation should be carried out in either cooling or heating mode. • In cooling mode, select the lowest programmable temperature; in heating mode, select the highest programmable temperature.
  • Page 16 Two-dimensional bar code is a code for manufacturing. 3P207052-2A M07B017A (0812) HT...
