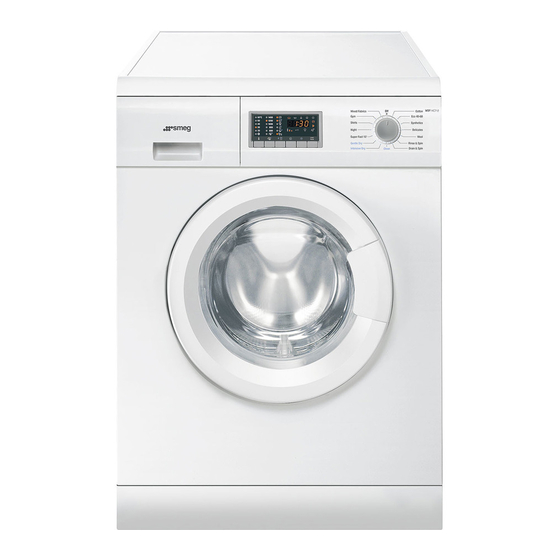

Smeg WDF14C7-2 Instruction Manual
  1. Manuals
  2. Brands
  3. Smeg Manuals
  4. Washer/Dryer
  5. WDF14C7-2
  6. Instruction manual

Smeg WDF14C7-2 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
WASHER-DRYER
EN
INSTRUCTION MANUAL

Advertisement

loading

Related Manuals for Smeg WDF14C7-2

Summary of Contents for Smeg WDF14C7-2

  • Page 1 WASHER-DRYER INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Contents 1. PRECAUTIONS FOR SAFETY AND USE ................... 2 2. INSTALLATION INSTRUCTIONS ....................7 3. DESCRIPTION OF CONTROLS ....................11 4. USING THE APPLIANCE FOR WASHING ................12 5. USING THE APPLIANCE FOR DRYING .................. 20 6. CLEANING AND MAINTENANCE ................... 23 7.

  • Page 3: Precautions For Safety And Use

    READ THE INSTRUCTIONS Attention! You are advised to read all the instructions in this manual carefully; it will inform you about the right conditions for the proper, safe use of your washer-dryer It is very important to keep this instruction manual with the appliance for future reference. In the event of sale or transfer, ensure that the manual always accompanies the appliance, to provide the necessary information about its use.
  • Page 4 Safety instructions  This appliance is intended for domestic use and similar applications such as staff kitchen area in shops, offices and other working environments, farm houses, and for the use by clients in hotels, motels, bed and breakfast type environments, and other residential facilities and is compliant with Directives 2014/35/EU and 2014/30/EU currently in force.
  • Page 5  When connecting the hose to a sink also check that the water drains from it quickly, as otherwise the sink may overflow.  Do not overload the appliance.  Never use detergents which contain solvents or chemicals for washing in the washer-dryer.
  • Page 6  Items that have been soiled with substances such as cooking oil, acetone, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer ...
  • Page 7  It is necessary to install in the fixed wiring an all-pole disconnection device having a gap between contacts of at least 3,5mm. After installation the disconnection device has to be easy to reach.  The connection to the mains must be carried out by a qualified technician in ac- cordance to the scheme shown below and the regulations in force L = brown N = blue...

  • Page 8: Installation Instructions

    2. INSTALLATION INSTRUCTIONS Important! The appliance must be installed by a qualified engineer in compliance with the relevant regulations. The washer-dryer is heavy. Take care when lifting it. 2.1 UNPACKING The unit on flexible mounts is fixed in place for transport using the screws (A) on the rear of the washer-dryer, with the relative plastic spacers (B).
  • Page 9 2.2 POSITIONING AND LEVELLING Place the appliance in the chosen position. Level the appliance carefully in all direc- tions with the aid of a spirit level, adjusting the height of the feet if necessary. Once done, fix the feet in place with the locknuts provided.
  • Page 10 Warning!  This operation must be carried out with care to prevent the washer-dryer from vibrating, moving or generating excessive noise during use.  If the appliance is installed on a carpeted floor, take care to ensure that the openings in the bottom of the washer-dryer are not obstructed. ...
  • Page 11 In all cases, check that the end of the drain hose is securely fixed to prevent the repulsive force of the water from pushing it out of place. Warning!  Avoid kinks or restrictions to ensure effective drainage.  Any drain hose extensions must be no more than 1 metre long, must be of the same diameter and must be free from restrictions of all kinds.

  • Page 12: Description Of Controls

    3. DESCRIPTION OF CONTROLS 3.1 CONTROL PANEL All the appliance's control and monitoring devices are placed together on the front panel. Display: shows the settings (washing temperature, spin speed, cycle status, flexi time, maximum recommended weight, drying levels, child lock, clean programme, time drying and automatic drying levels).

  • Page 13: Using The Appliance For Washing

    4. USING THE APPLIANCE FOR WASHING 4.1 PREPARING THE ITEMS FOR WASHING Subdivide the items for washing by fabric type and colour fastness. Wash white and coloured items separately. New coloured items should be washed sep- arately the first time. Normally, items carry labels with washing instructions. The following is a short description of the symbols used on these labels.
  • Page 14 4.2 OPENING THE DOOR The appliance is fitted with a safety device which prevents the door from being opened while the programme is in progress. Check that all the water has been drained from the tank and the drum is at a stand- still.
  • Page 15 Following the recommendations in the "Pro- grammes Table" supplied with this manual, place the detergent and any additives in the drawer be- fore the start of the programme. Never fill with liquids above the maximum level marked; otherwise the trays will empty too quickly. Before pouring dense additives into the container, dilute with a little water to ensure they do not clog the outlet.
  • Page 16 4.8 DESCALERS Descalers can be added to the prewash and main wash compartments as recommended by their producers. Place the detergent in the compartments first, followed by the descaler. 4.9 PROGRAMMES AND FUNCTIONS For advice on selecting programmes in relation to the type of fabric, refer to the "Pro- grammes Table", supplied with this manual.
  • Page 17 4.11 SELECTING AND CONFIRMING OPTIONS Options Confirm option Start Pause Option selection 1. The Option Selection button can be used to select the following options in sequence (from the top down): Time to End: key can be pressed repeatedly to select the time after which the washing programme will end.
  • Page 18 4.12 TIME TO END Option Time to end Time to symbol Start pause symbol Start Pause Option selection Confirm option 1. To select options “time to end”,press the “Option selection” button, pressing repeatedly the “Confirm option” button options you can select when the wash cycle ends.. The time to end of cycle function calculates the initial duration of the washing/drying cycle, the settings made (temperature, spin speed and options) which may shorten or lengthen the cycle's initial duration, and the delay time the user wishes to add before the cycle...
  • Page 19 4.13 STARTING THE WASHING PROGRAMME 1. To start the washing programme after making your personal settings, press the Start Pause button. 2. Once the cycle has started, the display shows the time remaining before the end of the cycle and the Start Pause symbol on the display is constantly on. 3.
  • Page 20 4.15 PROGRAMME END Washing/drying programmes are completed automatically. The word END appears on the dis- play and the "Time remaining" light goes out. 1. Switch the appliance off by turning the programmes knob to OFF 2. Unload the laundry from the drum. 3.

  • Page 21: Using The Appliance For Drying

    5. USING THE APPLIANCE FOR DRYING 5.1 GENERAL During drying cycles, the water tap must be turned on and the drain hose correctly po- sitioned. This appliance can be set to perform wash only, dry only and wash-and-dry programmes. In the wash-and-dry programme, the appliance switches from washing to drying automatically, with no need to use the controls (at the end of the wash) to obtain the complete cycle.
  • Page 22 5.2 WASH-AND-DRY PROGRAMME Automatic washing and drying can be carried out in the tough fabrics (cotton and colours) and synthetic/delicate fabrics programmes. If the wool wash programmes are selected, automatic drying after the wash cannot be set. For automatic washing and drying, the load of laundry must not exceed 4 kg of cotton or 2 kg of synthetic fabrics.
  • Page 23 5.4 INTERRUPTING OR CHANGING THE DRYING PROGRAMME The drying programme can be interrupted by the same procedures as the washing pro- gramme. To end the programme and remove the laundry, it is best first to cool the load. Use the selector button to set a drying time of 20 minutes.

  • Page 24: Cleaning And Maintenance

    6. CLEANING AND MAINTENANCE Important – Before carrying out any cleaning or maintenance procedure, the plug must be disconnected from the power supply socket. 6.1 CLEANING THE OUTSIDE OF THE APPLIANCE  Regular, thorough cleaning will keep your appliance looking good. ...
  • Page 25 Free-Standing Model – Insert a small screw- driver through the slits in the front of the plinth, then apply upward leverage with the screwdriver to release the top of the plinth from the cabinet. Tilt the plinth forward slightly and pull it up- ward to remove it completely.
  • Page 26 6.6 CLEANING THE WATER INTAKE FILTERS The machine is fitted with a filter which protects the water intake valves. The filter is in the fitting on the intake hose which is connected to the tap The filter must be cleaned if the washer-dryer is not taking in water or the amount of water is insufficient.

  • Page 27: Troubleshooting

    7. TROUBLESHOOTING This produce complies with the relevant regulations governing the safety of electrical equip- ment. For safety reasons, any technical inspections or repairs must be performed by qualified staff, to prevent all hazards for the user. If the appliance does not work, before calling the After-Sales Service, to avoid unnecessary expense, check yourself that the operations listed in this troubleshooting table have been car- ried out..
  • Page 28 Appliance does not spin Anti-imbalance safety device tripped because laundry not evenly distributed in drum. If laundry is still wet at end of cycle, rearrange it in the drum by hand and repeat spin programme only. Emptying water from In the event of a power blackout or appliance failure, the water can drum be removed from the drum using the emergency procedure.

  • Page 29: Additional Information For The User

    8. ADDITIONAL INFORMATION FOR THE USER The following information is provided in accordance with the European Ecodesign regulation (EU) 2019/2023 The values indicated for programmes other than Eco 40-60 are indicative only. Automatic and timed dry washer-dryer Programme Rated Energy con- Water consu- Programme Temperature...
  • Page 30 ** Eco 40-60 program Test programme compliant with European Ecodesign regulation (EU 2019/2023) and the European regulation on energy labelling using cold water (15°C) (EU 2019/2014). Washing program that is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C together in the same washing cycle.
  • Page 31 PROGRAM GUIDE Detergent drawer compartments Options Programs Temp. Max. Spin Max. Max. drying Prewash Wash Softner Prewash Intensive Easy Iron Extra rinse Flexi Drying after Wash program description (°C) (rpm) washing load (kg) time wash if load (kg) selected Cotton Delicate coloureds with light dirt / 20°...
