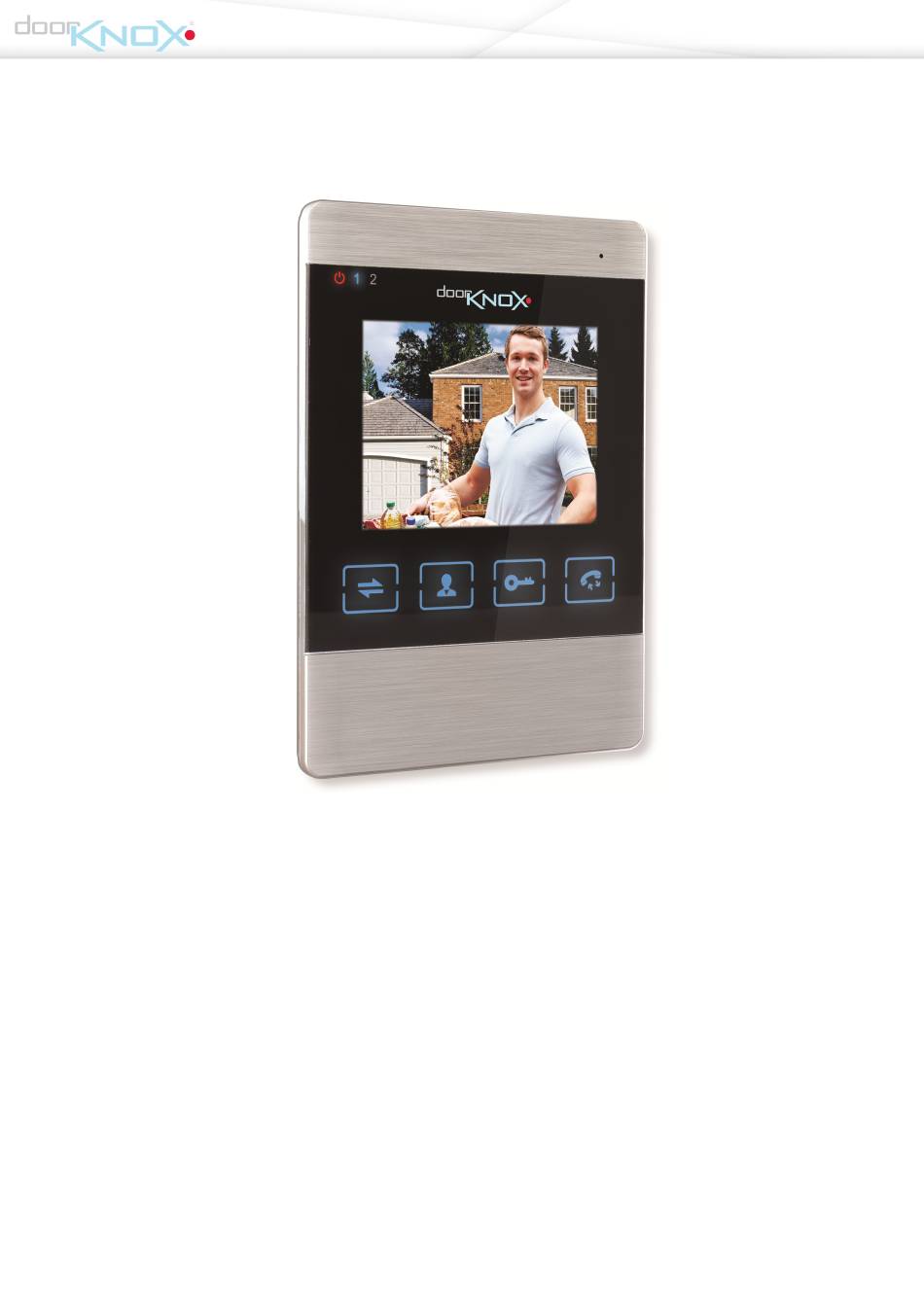

- Page 1 Instruction Manual VDP304 © 2023 System Q Ltd DoorKnox.com...
-
Page 2: Table Of Contents
Part 8 Using the Door Entry System 1 Visitor Calls ........................13 Part 9 Monitor Features Part 10 Troubleshooting Part 11 General Maintenance Part 12 Extra Resources Part 13 Specifications Part 14 Conditions Index © 2023 System Q Ltd DoorKnox.com... -
Page 3: Part 1 Introduction
· Customise ringtone MP3 · Motion detection · Ring at camera · Automated Message & Video Mail Recording · Local Unlock · Standby Screen Saver Customisation · Media Player - Music, Video & Pictures © 2023 System Q Ltd DoorKnox.com... -
Page 4: Part 2 User Information
VDP304 User Information · Do not expose to moisture or high humidity conditions. This product is rated for internal use only. · Take care when transporting, storing and installing the monitor · Always use and conform to current standards to install and use these. The signal cables should be kept way from high voltage equipment. -
Page 5: Part 3 Connections And Wiring
Connections and Wiring Connections and Wiring © 2023 System Q Ltd DoorKnox.com... -
Page 6: Cameras
VDP304 3.1 Cameras All of the DoorKnox cameras have connection cables terminated into the same 7 colour coordinated wires. 4 wires are used to connect to the monitor and then 2 of the 3 remaining wires are used to connect to an electronic door lock. The common (COM) wire is always used along with either the normally open (NO) or normally closed (NC) wire depending on the lock type, power for the lock is separate as the Door Lock relay does not provide power output. -
Page 7: Monitors
TV monitor or DVR. The 3 wire y-lead is terminated for the local relay plug and is used to unlock a local relay like a door release local to the monitor. © 2023 System Q Ltd DoorKnox.com... -
Page 8: Powering Cameras
VDP304 3.3 Powering Cameras Door cameras and auxiliary cameras can be powered in two ways, either locally or via the main monitor. The DoorKnox monitors can supply a 12V DC output to any of the four cameras but can only supply a maximum of 400mA across all outputs. To power a camera locally connect the Audio (white) and Video (yellow) to the door monitor, the GND (black) to the PSU and the door monitor and then the 12V DC (red) to the PSU only. -
Page 9: Cable Runs
CAT5+2 Up To 100m Up To 100m 4 Core Cable (0.3mm2 4 Core Cable (0.3mm2) Up To 50m Main Monitor to Auxiliary Monitors Cable Type Max Cable Run PTZ Combo Cable (RG59+4) Up To 30m (Per Monitor) © 2023 System Q Ltd DoorKnox.com... -
Page 10: Part 4 Mounting
VDP304 Mounting Mark the hole positions using the mounting bracket. Drill the holes and install the wall plugs. Secure the mounting plate and then slot the monitor onto the bracket, when the monitor clicks it is secured in place. 09/06/2023 DoorKnox.com... -
Page 11: Part 5 Controls And Features
5. Unlock - Sends command to unlock 6. Answer Intercom - Answer / End call / Return 7. Microphone 8. Settings - Enter / Up and down 9. Volume Control 10. Micro SD card slot © 2023 System Q Ltd DoorKnox.com... -
Page 12: Part 6 Menu Navigation
VDP304 Menu Navigation 09/06/2023 DoorKnox.com... -
Page 13: Part 7 Basic Monitor Settings
See the Full Manual for more information on settings in the monitor. 7.2 Camera Switch Coming soon Using the Door Entry System Coming soon 8.1 Visitor Calls Coming soon Monitor Features Coming soon Troubleshooting Coming soon © 2023 System Q Ltd DoorKnox.com... -
Page 14: Part 11 General Maintenance
VDP304 General Maintenance · Ensure that nothing is obscuring the field of view, position the camera to ensure the subject is in field of view and can be seen clearly. · Ensure that the Microphone is clear and not obscured at all. ·... -
Page 15: Part 13 Specifications
Power / Consumption 12V DC / 1200mA (2A PSU Supplied) Build Plastic (Silver) Operating Temperature -10°C +60°C Installation Internal Use Surface Mount Intercom Duration 120s Dimensions (H) 165 x (W) 245 x (D) 23mm © 2023 System Q Ltd DoorKnox.com... -
Page 16: Part 14 Conditions
VDP304 Conditions All specifications are approximate. System Q Ltd reserves the right to change any product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be...
