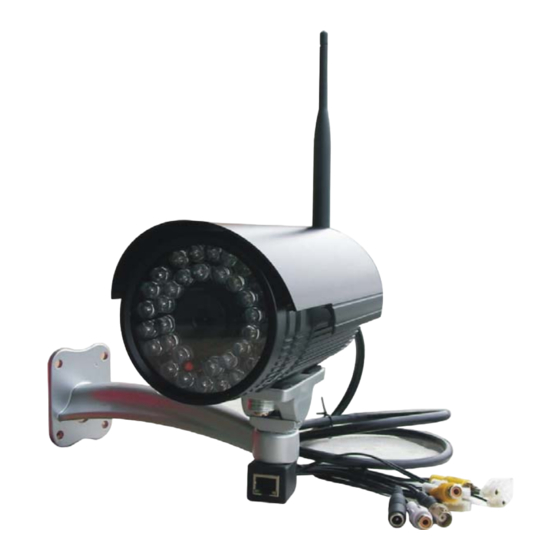

- Page 1 C1212HW(POE) User’s Manual Outdoor H.264 IR-C1212HW(POE) Stand Alone IP Camera MANUAL Firmware 2.2.0.5 Version Revision Date : 2009.06.01 Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 2 The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 3 • Clean the glass window frequently to ensure good clear view, remove the snow and ice accumulated outside and inside of class window shield, keep camera inside dry by blow dryer. • Must use PSE come with C1212HW-POE Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 4: Table Of Contents
6.12 Storage Settings .......................... 45 6.13 Local Settings ..........................47 Appendix 1 Network Port for IP Camera ..........................48 Appendix 2 Network Factory Defaults ........................... 48 ........................ 49 Appendix 3 Cross Ethernet Cable Making Tip Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 5: Chapter 1 Features
- Support Bi-directional real time transmission of audio talk-back & broadcast. - Network self-adapting technology to adjust video frame rate automatically according to the network bandwidth. - Auto-recovery function if exception occurs and auto-connection if the network fails - Provide SDK and client demo source code. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 6 Dimensions (mm, L x H x W): Weight (g): Input Power Supply: Optional POE-PSE Less than 8W, optional Maximum Power: DC 48V POE-PD -10 ~ +55 ℃ Operating Temperature: -20 ~ +70 ℃ Storage Temperature: IP64 Weather Proof: System Requirements: Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 7 C1212HW(POE) User’s Manual Operation System: Microsoft Windows XP, VISTA, Windows 7 Browser: Microsoft Internet Explorer 6.x or above Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 8: Chapter 2 Packing Detail
2. Installation Software utilities CD 3. AC Adaptor & Power Cord 1. C1212H(W) H.264 outdoor IR IP Camera (optional Wi-Fi or POE) 2. Installation Software utilities & Central Management Software CD 3. AC Adaptor (DC12V/ 2A) & Power Cord Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 9: Chapter 3 Cable And Connectors
5. RCA plug : Male audio input port to sound monitor. 6. Terminals (Alarm) : Alarm input (NC or NO) / Alarm output ( on/off output, 220VAC 1A/ 24VDC 1A) 7. RJ-45 : Network Ethernet connector, LEDs flashing when accessing Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 10: Rear View
C1212HW(POE) User’s Manual 3.2 REAR VIEW ○ ○ Port Name Description RSMA Connector 5 dBi omni antenna ○ Tail Cable 3 feet wire ○ Connect BNC output to monitors Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 11 Connect Pan/ Tilt Seat D+ , D- : Connect PT control line ( 485A , 485B terminal ) Alarm input: To connect the Active Infrared Sensor to IP CAMERAR camera ALARM IN, will trigger alarm when light beams interrupted. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 12 WARNING: If connect higher power loading (> 1A) directly to camera alarm out will cause damage the camera. Higher current (>0.5A) will accelerate aging of the relay on camera PCB, external relay box is always recommended to protect the camera. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 13: Chapter 4 System Requirement
ATI Radeon 7000/7200/7500/8500/9550/9600/9700/9800 and X & HD series, • Matrox G450/ 550; • INTEL 865G/ 875G and its series. Operation System ◆Chinese; English: Windows2000/ Windows XP/ Windows Vista/ Windows 7. Software ◆IE 6.0 or above ◆DirectX 8.0 or above ◆TCP／IP protocol Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 14: Chapter 5 Installation
(See more in section 6.8 Network Settings). You will see two IP address by camera search software utility, if you didn’t remove the Ethernet cable before the camera wireless connection. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 15 To get your PC IP configuration information: click 【Start】--- go to command mode by 【Run】”, then input “command” or “cmd”(Windows 2000/XP system).click “ok”, then input “ ipconfig” and press “Enter” button, you will get following information: Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 16 Please remember the IP Address，Subnet Mask, Default Gateway，then setup the IP Camera IP address according to your PC IP address. For example :192.168.1.100. Please make sure the Default Gateway and Subnet Mask must be same. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 17 The message shown on above indicates the IP Camera is functioning normally and connects to same subnet (LAN) correctly. If the screen displays other information, please confirm the IP address settings and check the network cables again. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 18: Connect To Wan
& mvDDNS setup on Reference User’s Manual. Note: C1212H(W) supports PPPoE auto-dial-up, that you can connect your camera directly to an ADSL modem, please remember to setup DDNS and email parameters before you enable PPPoE function. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 19: Install Activex And Login
C1212H(W) IP address or URL to your IE trusted sites list”. In order to download & install ActiveX controls, you will need to add your C1212H(W) camera sites” IP/ url address to your IE browser “Trusted IE browser “Tool” “Internet Options” “Security“ Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 20 Type in http://C1212H(W)_IP_address or URL to “Add this website to the zone:” field, click on “Add” button. You can add you LAN subnet to your trusted sites by adding http://192.168.0.* if your LAN subnet is 192.168.0.xxx. Choose Custom level and enable all ActiveX features of Trusted sites zone Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 21 Enable:Download unsigned ActiveX controls Enable:Initialize and script ActiveX controls not marked as safe Enable:Run ActiveX controls and plu-ins After installed CAMERA ActiveX controls, enable “Run ActiveX controls and plu-ins”, you can view camera video as followed: Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 22 “Install” button， after installed the ActiveX will show “Install OK”. Again, type IP address of the IP camera in Internet Explore address field; Click “Enter” to bring up the camera Login page as illustrated below: Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 23 C1212HW(POE) User’s Manual admin Input User name (Default: admin)、 Password (Default: admin)， click “Submit” to bring up camera video page: Live View System Settings Video Settings ….. Etc…….. Pan/ Tilt control: To control Motion Left, Right, Up, Down, Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 24: Chapter 6 Software Configurations
Video/ Audio Settings Motion Alarm Alarm Set Sensor Network Fault Zoom in Basic Set Full Screen Network Set Advanced Images Set User management Lens Control Device set Terminal P/T Control Record Set Storage Set Snap Set Local Set Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 25: Live View Page
【Speaker】Speaker on/ off，The working status as : 【Alarm】While there is an alarm, click on【Alarm】to stop the alarm manually . 【Log】Evens log 【Zoom in】Click on “Zoom in” change to red color, Select area to zoom in (live view) Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 26 【Pan control】up, down, left, right, Automatic, speed adjusting 【Image Parameters】 CCD IP Camera: brightness, contrast, chroma, saturation adjustment as follows: 【Lens Control】It can be adjusted Zoom, Focus, Aperture, Light, Clip, Preset, and Pan operation. 【P/T Control】Pan / Tilt operation, PAN speed adjustable Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 27 PC with more advanced processor. Minimum system requirement are: CPU: PIII 2.0GHz or above; AMD processors are not supported Display card : DirectX 9c compliant. Start Run input DXDIAG DirectDraw、Direct3D、AGP Texture Acceleration must be enabled Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 28 C1212HW(POE) User’s Manual Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 29: Video Playback
【Date】User can check the recorded video files or snapshot pictures according to the selected date, click the button : calendar appears: Click “《 ”icon to previous year Click “ 》”icon to next year Click “〈 ”icon to previous month Click “ 〉”icon to next month Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 30 】Searching the recorded video file or snapshot pictures which downloaded 【 from SD card in Play list, click the “ ” button to download it to local PC. 】following window pop up after click the “ ”: 【 Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 31: System Settings
C1212HW(POE) User’s Manual Click【Pause】to pause download manually，click【Start】to continue downloading the remaining files，click【Delete】to del the file，click【Close】to close the download information window. 6.4 System Settings System Clock: click: “Time Sync”, The camera time will be synchronized with your computer. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 32 Never power off C1212H(W) during upgrading firmware. Don’t interrupt the power and network connection during upgrading IP camera. Must upgrade IP camera according to the correct order, first upgrade the kernel Application, then OCX file and Page file. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 33: Video Settings
PAL system D1 (704*576)/ HD1 (704*288)/ CIF (352*288)/ QCIF (176*144); NTSC system D1 (704*480)/ HD1 (704*240)/ CIF (352*240)/ QCIF (176*120) 【Quality】: Options for Fine, Normal, Basic and there is advanced image setting. 【Advanced image setting】 as follows: Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 34 This IP Camera adopts most advanced H.264 Main Profile compression with Dual compression (h.264 & MJPEG) & Dual video Streams output, which means you can choose most suitable compression/ resolution/ frame rate/ quality according to real application scenario. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 35: Motion Alarm Setting
( The snapshots stored on SD card can be downloaded to PC on 【replay】page) 【Schedule】Set the time of motion alarm detection. 【Alarm output】Alarming, trigger alarm signal output. 【Alarm delay】Alarming, delay the alarm (the period of time after alarm that continuous Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 36: Sensor Alarm Settings
【Alarm delay】 Alarming, delay the alarm (the period of time after alarm that continuous alarms will be ignored) automatically ,set the time from 0~86400 seconds. 【Alarm record on PC】Automatically recording video and stored it on PC storage when alarming if no SD card in camera. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 37 10 seconds; it will capture an image store on SD card every 10 seconds. The snapshots on SD card can be downloaded to PC when 【replay】 . And when the SD is full, the old file will be over-written automatically. After setting, click the 【save】button. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 38: Network Setting
1. Broadband router is firewall in nature will block all accesses from Internet, you will need to set virtual server (port forwarding) on your router, normally we will always suggest to use port > 1024 to avoid conflicts, port <1024 are frequently used by other applications. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 39 【HTTP Port Map No】Default :80, is the TCP/IP port open on your Gateway/ Firewall which will forward http access to your camera. Note: If other than port 80 used, you will need to add http port number every time you access your camera by IE browser. (ex: http://Camera_IP_Address(URL):port Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 40 (30fps @D1, NTSC; 512kbps ~2Mbps maximum). 4. Avoid obstacles in between AP & IP Camera. Choose different wireless channels for adjacent AP. 5. Choose 802.11a (5.8GHz) for longer range wireless link, or under serious interference to ensure good wireless link quality. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 41: Advanced Settings
PC. UPNP Setting: Port mapping automatically: The Gateway/ Firewall server with UPNP function will map port for camera automatically. 【UPNP Network Card】The camera interface connect to UPNP Gateway/ Firewall. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 42 WARNING: If RTSP enabled, to playback live authentication is not required video & audio by vlc media player. Please be aware of privacy risk. To play on vlc, Coreplayer (iPhone, Smart phones), Realplayer (Nokia Sabian) Syntax rtsp://Camera_url_or_WAN_IP:rtsp-port Example: rtsp://www.ipcamera.com.tw:554 Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 43: User Management
Note: Username/ Password are case sensitive, consisted of letters, numbers, underline or dot up to 16 characters. Default Administrator Name: admin password: admin Default Guest Name: guest password: guest Note: It’s case sensitive, must use the correct upper case/ lower case characters Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 44: Rs-485 Settings
6.11 RS-485 Settings When Speed Dome or PTZ Decoder connect to RS485 port. Correct Address, Protocol, Baudrate, Date bit, Stop bit, Perity Check, Flow Control must be set. Download the corresponding protocol for the decoder. click【save】after setting. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 45: Storage Settings
C1212HW(POE) User’s Manual 6.12 Storage Settings Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 46 C1212HW(POE) User’s Manual CAUTION: Never hot-swap SD card or valuable recording stored in SD card will be lost!! Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 47: Local Settings
C1212HW(POE) User’s Manual 6.13 Local Settings 【Record file path】Setting storage path for recorded video file and captured snapshot file. Default path: C:\XDNVS Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 48: Appendix 1 Network Port For Ip Camera
Web port: 80 Gateway: 192.168.55.1 DHCP: Wireless network defaults: IP Address: 192.168.1.160 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 Frequency /Mode: Auto Note: The wireless network can’t be the same as the wired network. Must be different subnet Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 49: Appendix 3 Cross Ethernet Cable Making Tip
Connect LAN Cable Part-A and LAN plug by order as one to one . b. Connect to LAN cable Part-B & Part-A, Replace order No.1 & 3, No.2 & 6. c. Connect LAN cable Part-B No. 3 to LAN plug No. 1 and connect the next by order. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 50 C1212HW(POE) User’s Manual ========================== The End ========================= Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
