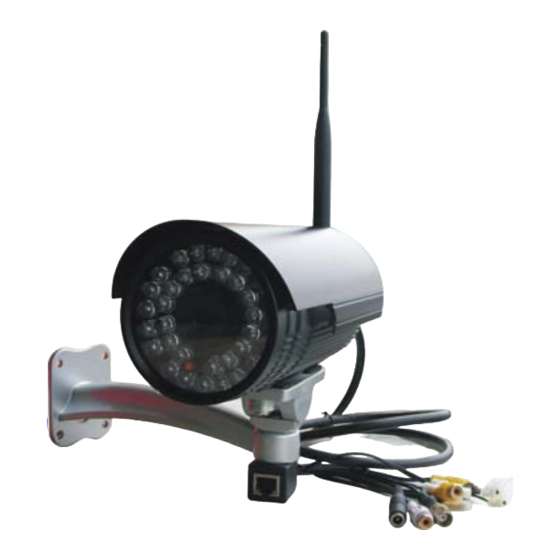

- Page 1 C1212H(W) User’s Manual Outdoor H.264 IR-C1212H(W) Stand Alone IP Camera MANUAL Firmware 2.0 Version Revision Date : 2008.07.01 Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 2 Specifications are subject to change without notice. The information herein is subject to change without notice. This manual is periodically reviewed and revised. No responsibility is assumed for any errors or omissions in this document. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 3 The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 4 • Clean the glass window frequently to ensure good clear view, remove the snow and ice accumulated outside and inside of class window shield, keep camera inside dry by blow dryer. • Must use IEEE802.3af standard PSE for C1212H-POE Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 5: Table Of Contents
6.9 Advanced Settings ............................35 6.10 User Management ............................ 36 6.11 RS-485 Settings ............................37 6.12 SD Card Info..............................37 Appendix 1 Network Port for IP Camera..........................38 Appendix 2 Network Factory Defaults...........................38 ......................39 Appendix 3 Cross Ethernet Cable Making Tip Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 6: Chapter 1 Features
36 cameras video on single screen, support video lost、motion detection and sensors alarm functions, Able to set 396 detective zones (22 x 18) and 100 levels sensitivity - Support masks function to mask sensitive area. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 7 Maximum Power: -10 ~ +55 °C Operating Temperature: -20 ~ +70 °C Storage Temperature: IP64 Weather Proof: 30 meters IR Light : Operation System: Microsoft Windows XP System Requirements: Browser: Microsoft Internet Explorer 6.x or above Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 8: Chapter 2 Packing Detail
2. Installation Software utilities CD 3. AC Adaptor & Power Cord 1. C1212H(W) H.264 outdoor IR IP Camera (optional Wi-Fi or POE) 2. Installation Software utilities & Central Management Software CD 3. AC Adaptor (DC12V/ 2A) & Power Cord Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 9: Front View
5. RCA plug : Male audio input port to sound monitor. 6. Terminals (Alarm) : Alarm input (NC or NO) / Alarm output ( on/off output, 220VAC 1A/ 24VDC 1A) 7. RJ-45 : Network ethernet connector, leds flashing when accessing Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 10: Rear View
C1212H(W) User’s Manual 3.2 REAR VIEW ○ ○ Port Name Description RSMA Connector 5 dBi omni antenna ○ Tail Cable 3 feet wire ○ Connect BNC output to monitors Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 11 RS-485 port can be used to connect the external PAN/ TILT Seat DESCRIPTION 485A(TX+) RS485:Transmit data 485B(TX-) RS485: Receive data Connect Pan/ Tilt Seat D+ , D- : Connect PT control line ( 485A , 485B terminal ) Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 12: Chapter 4 System Requirement
• ATI Radeon 7000/7200/7500/8500/9000/9200/9500/9600 and its series, • Matrox G450/ 550; • INTEL 845G/ 865G and its series. Operation System ◆Chinese; English: Windows2000/ WindowsXP/ Windows Vista. Software ◆IE 6.0 or above ◆DirectX8.0 or above ◆TCP／IP protocol Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 13: Chapter 5 Installation
(See more in section 6.8 Network Settings). You will see two IP address by camera search software utility, if you didn’t remove the Ethernet cable before the camera wireless connection. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 14 To get your PC IP configuration information: click 【Start】 go to command mode by ---【Run】”, then input “command” or “cmd”(Windows 2000/XP system).click “ok”, then input “ ipconfig” and press “Enter” button, you will get following information: Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 15 Please remember the IP Address，Subnet Mask, Default Gateway，then setup the IP Camera IP address according to your PC IP address. For example :192.168.1.100. Please make sure the Default Gateway and Subnet Mask must be same. Click 【Set】to set “Network Parameter” as illustrated below: Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 16 (LAN) correctly. If the screen displays other information, please confirm the IP address settings and check the network cables again. Warning: Please consult your office network administrator to get a free IP for your IP Camera, duplicated IP address will cause undesired problems. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 17: Connect To Wan
Please reference more details of Router & mvDDNS setup on Reference User’s Manual. Note: C1212H(W) supports PPPoE auto-dial-up, that you can connect your camera directly to an ADSL modem, please remember to setup DDNS and email parameters before you enable PPPoE function. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 18 5.3 Install ActiveX and Login Note: Before accessing C1212H(W) through IE browser, please follow below steps to “Add C1212H(W) IP address or URL to your IE trusted sites list”. Step1: Open Internet Options (from Control Panel) Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 19 Type in C1212H(W) IP address or URL to “Add this website to the zone:” field, click on “Add” button. You can add you LAN subnet to your trusted sites as illustrated. Remember to set the Security level of “trusted sites” to Click “Apply” or “OK” to save Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 20 C1212H(W) User’s Manual Step 3. Enable Un-signed Add-ons (ActiveX plug-in) Choose Custom level and enable all ActiveX features of Trusted sites zone. Enable download and run un-signed ActiveX plug-ins. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 21 Close current Internet Explorer Window, click “Install” button， after installed the ActiveX will show “Install OK”. Again, type IP address of the IP camera in Internet Explore address field; Click “Enter” to bring up the camera Login page as illustrated below: Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 22 C1212H(W) User’s Manual admin Input User name (Default: admin)、 Password (Default: admin)， click “Submit” to bring up camera video page: Live View System Settings Video Settings ….. Etc…….. Pan/ Tilt control: To control Motion Left, Right, Up, Down, Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 23: Chapter 6 Software Configurations
System/ NTP/ Storage Settings Call Video/ Audio Settings Speaker Motion/ Alarm Settings Alarm PTZ Control Sensor/ Alarm Settings Image Parameters Network/ WiFi/ DDNS/ PPPoE Settings Mail/ UPnP Settings User management COM/ PTZ Protocol settings SD Card Information Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 24: Live View Page
Audio function. The working status as: 【Speaker】Speaker on/ off，The working status as : 【Alarm】While there is an alarm, click on【Alarm】to stop the alarm manually . 【Pan control】up, down, left, right, Automatic, speed adjusting Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 25 C1212H(W) User’s Manual 【Image Parameters】 CCD IP Camera: brightness, contrast, color, saturation adjustment as follows: 【Lens Control】It can be adjusted Zoom, Focus, Aperture, Light, Clip, Preset, and Pan operation. Error Message Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
- Page 26 PC with more advanced processor. Minimum system requirement are: CPU: PIII 1.5GHz or above; AMD processors are not supported Display card : DirectX 9c compliant. Start Run input DXDIAG DirectDraw、Direct3D、AGP Texture Acceleration must be enabled Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 27: Video Playback
【Date】User can check the recorded video files or snapshot pictures according to the selected date, click the button : calendar appears: Click “《 ”icon to previous year Click “ 》”icon to next year Click “〈 ”icon to previous month Click “ 〉”icon to next month Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 28 】Searching the recorded video file or snapshot pictures which downloaded 【 from SD card in Play list, click the “ ” button to download it to local PC. 】following window pop up after click the “ ”: 【 Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 29: System Settings
System Clock: click: “Time Sync”, The camera time will be synchronized with your computer. 【NTP Parameter】: Please input the correct NTP server address and select the correct time zone. After save it, switch to 【Live View】 , The NTP sever will show the correct time got from NTP Server. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 30 Never power off C1212H(W) during upgrading firmware. Don’t interrupt the power and network connection during upgrading IP camera. Must upgrade IP camera according to the correct order, first upgrade the kernel Application, then OCX file and Page file. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
-
Page 31: Video Settings
If users don’t need audio status; please close audio input to save the DSP resource and network resource. 【Video Mask Set】 Mask all image or Mask part image, the whole image divided into 22 * 18 blocks. Select the blocks to mask, or cancel the mask setting. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 32: Motion Alarm Setting
SD is full, the old file will be over written automatically. 【Area set】: Hold the left button of mouse and drag the motion detect area. 【All】Set whole image as motion detect area 【Clr】Clear all motion detect area. After setting, click the 【save】button. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 33: Sensor Alarm Settings
10 seconds; it will capture an image store on SD card every 10 seconds. The snapshots on SD card can be downloaded to PC when 【replay】 . And when the SD is full, the old file will be over-written automatically. After setting, click the 【save】button. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 34: Network Setting
【DDNS RegName】User account registered on DDNS server 【DDNS Password】User Password of DDNS server. 【DDNS Domain】The unique URL set for internet access. 【DDNS Server URL】Dynamic Domain Name Service provider URL. 【DDNS Port】Default :30000. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 35: Advanced Settings
【Snap picture】When there is a motion alarm or a sensor alarm, the camera will take snapshot and store it in the local PC. UPNP Setting: Port mapping automatically: The Gateway/ Firewall server with UPNP Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 36: User Management
There are two user accounts. One is Administrator another is Guest. Administrator can change parameters of IP Camera. Guest is not allowed to change parameter of IP Camera. Note: Username/ Password are case sensitive, consisted of letters, numbers, underline or dot up to 16 characters. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 37: Rs-485 Settings
When Speed Dome or PTZ Decoder connect to RS485 port. Correct Address, Protocol, Baudrate, Date bit, Stop bit, Perity Check, Flow Control must be set. Download the corresponding protocol for the decoder. click【save】after setting. 6.12 SD Card Info. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 38: Appendix 1 Network Port For Ip Camera
Web port: 80 Gateway: 192.168.55.1 DHCP: Wireless network defaults: IP Address: 192.168.1.160 Subnet Mask: 255.255.255.0 Gateway: 192.168.1.1 Frequency /Mode: Auto Note: The wireless network can’t be the same as the wired network. Must be different subnet Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... -
Page 39: Appendix 3 Cross Ethernet Cable Making Tip
Connect LAN Cable Part-A and LAN plug by order as one to one . b. Connect to LAN cable Part-B & Part-A, Replace order No.1 & 3, No.2 & 6. c. Connect LAN cable Part-B No. 3 to LAN plug No. 1 and connect the next by order. Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk... - Page 40 C1212H(W) User’s Manual ========================== The End ========================= Solwise Ltd., www.solwise.co.uk, sales@solwise.co.uk...
