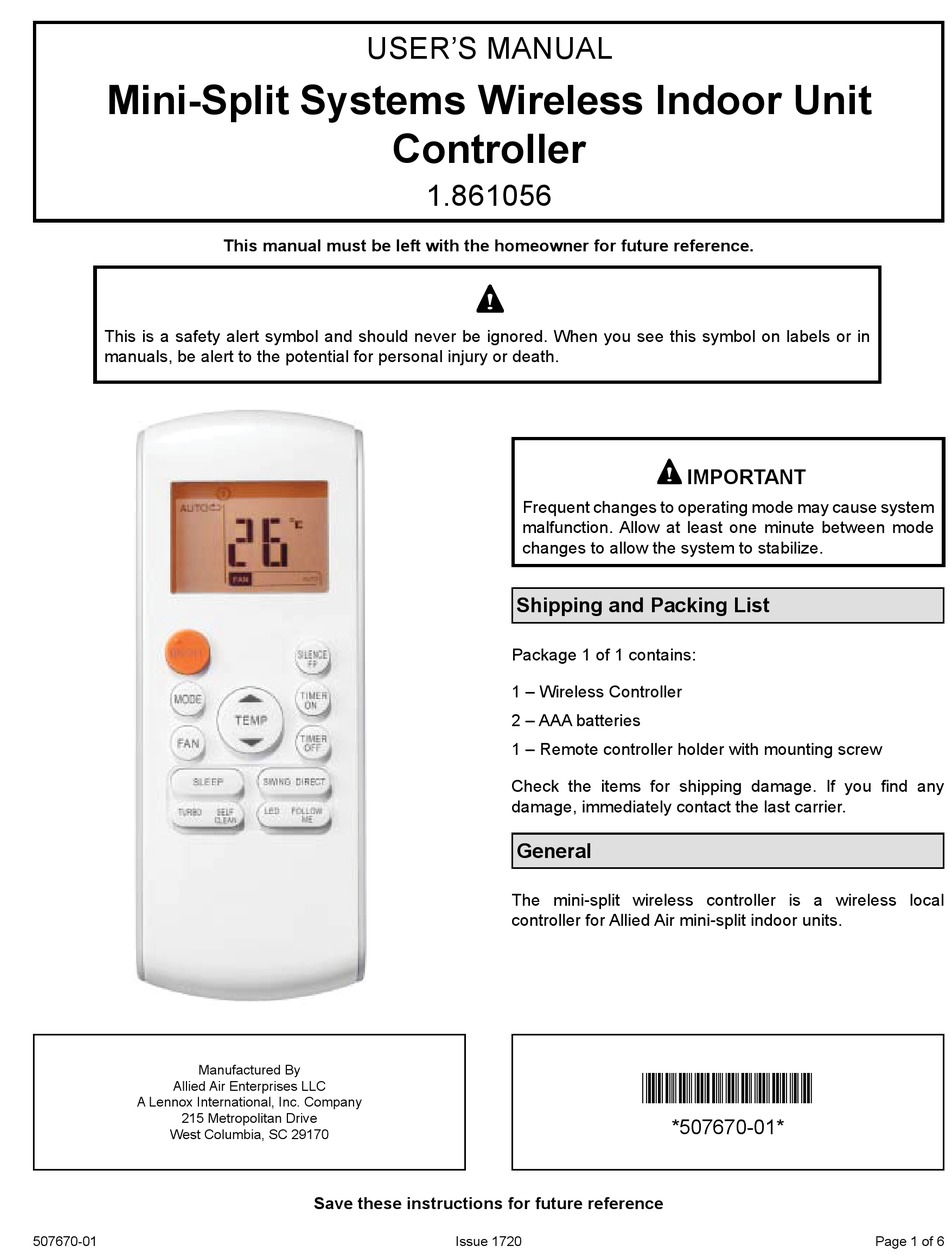

Mini-Split Systems Wireless Indoor Unit
This is a safety alert symbol and should never be ignored. When you see this symbol on labels or in
manuals, be alert to the potential for personal injury or death.
Manufactured By
Allied Air Enterprises LLC
A Lennox International, Inc. Company
215 Metropolitan Drive
West Columbia, SC 29170
507670-01
USER'S MANUAL
Controller
This manual must be left with the homeowner for future reference.
Save these instructions for future reference
1.861056
Frequent changes to operating mode may cause system
malfunction. Allow at least one minute between mode
changes to allow the system to stabilize.
Shipping and Packing List
Package 1 of 1 contains:
1 – Wireless Controller
2 – AAA batteries
1 – Remote controller holder with mounting screw
Check the items for shipping damage. If you find any
damage, immediately contact the last carrier.
General

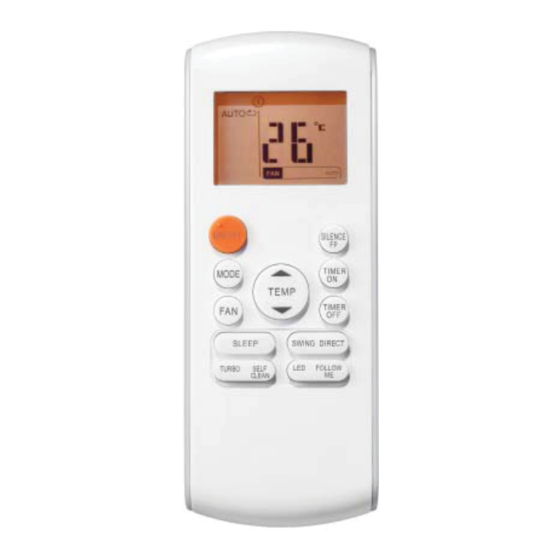

The mini-split wireless controller is a wireless local
controller for Allied Air mini-split indoor units.
Issue 1720
IMPORTANT
*507670-01*
*507670-01*
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Allied 1.861056
Summary of Contents for Allied 1.861056
- Page 1 Check the items for shipping damage. If you find any damage, immediately contact the last carrier. General The mini-split wireless controller is a wireless local controller for Allied Air mini-split indoor units. Manufactured By *507670-01* Allied Air Enterprises LLC A Lennox International, Inc. Company...
- Page 2 Requirements Function Buttons See Table 2 for information on how to operate the function Using the Remote Controller buttons of the remote controller. • Point the remote controller directly at the indoor unit. • Stand within 26 ft. (8m) of the indoor unit. •...
- Page 3 Button Use Instructions Press to increase the temperature setpoint or to scroll through settings options. Up arrow On/Off Press to turn the indoor unit on or off. Press to scroll through the operation modes: Auto → Cool → Dry → Heat → Fan. Mode Fan speed Press to scroll through the fan speeds: Auto →...
- Page 4 Display Timer OFF Remote controller on Timer ON Not used Transmitting display Battery charge status Night mode Follow me Operation mode Not used Setpoint or Room Fan speed temperature Not used Icon Description Icon displays to indicate that the remote controller is on. Remote controller On Transmitting display Icon blinks once when a signal is sent from the wireless remote controller.
- Page 5 Operation Instructions Batteries To Set the Operation Mode Remove battery cover from back of remote. Press the Mode button to scroll through the mode selections. Insert batteries into battery compartment. Replace cover on controller. • Auto – System operates in cooling or heating mode as determined by the setpoint and the room temperature.
- Page 6 Timer Operation Timer OFF Operation Timer ON and Timer OFF are used to turn on and turn off Press the Timer OFF button. The Timer OFF icon, the the indoor unit at selected intervals. last auto-off time, and “h” will display. Press the Timer OFF button again to set the amount Timer ON Operation of time before the indoor unit stops operation.
