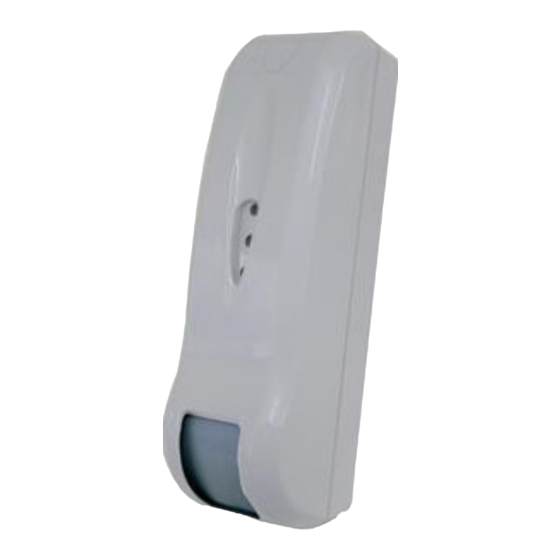

Sensore doppia tecnologia da esterno, effetto tenda, con funzione anti-
mascheramento
Double technology outdoor detector with antimasking system, curtain effect
IT
EN
TECHNICAL
MANUALE
MANUAL
TECNICO
D T 1 2E C A M
D T 1 2E C A M
D T 1 2E C A M
D T 1 2E C A M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT12ECAM and is the answer not in the manual?

Questions and answers

Summary of Contents for Comelit DT12ECAM

  • Page 1 TECHNICAL MANUALE MANUAL TECNICO D T 1 2E C A M D T 1 2E C A M D T 1 2E C A M D T 1 2E C A M Sensore doppia tecnologia da esterno, effetto tenda, con funzione anti- mascheramento Double technology outdoor detector with antimasking system, curtain effect...
  • Page 2 1.DESCRIZIONE Usare un cacciavite per togliere l’inserto, che nasconde la vite che blocca il coperchio di chiusura, posto nella parte superiore del rilevatore: CON STAFFA AD ANGOLO FISSAGGIO A PARETE Staffa di montaggio angolare reversibile Staffa di montaggio a parete...
  • Page 3: Collegamento Cavi

    2.COLLEGAMENTO CAVI Descrizione morsettiera del rilevatore : 12V = Positivo 12Vcc. GND = GND ( negativo) AMK = Uscita contatto antimasking N.C. = Uscita temper antiapertura (N.C.) MEM = Ingresso inibizione e abilitazione memorie (positivo) = Uscita contatto allarme N.C. Segnalazione dei LED LD4 = Led blu allarme LD5 = Led giallo microonda...
  • Page 4 3.DIAGRAMMI DI COPERTURA SEZIONE MW IR 30 cm PIANTA 12 m MW IR 7,5° 12 m 4.SEGNALAZIONI LED ACCESO FISSO LAMPEGGIANTE Rilevazione IR LED ROSSO ///////////////// Senza allarme Rilevazione MW LED GIALLO ///////////////// Senza allarme Rilevazione IR LED BLU+ROSSO ///////////////// CON allarme Rilevazione MW LED BLU+GIALLO...
  • Page 5 5.INDICAZIONI DI INSTALLAZIONE...
  • Page 6: Installazione

    6.INSTALLAZIONE Per un corretto funzionamento del rilevatore a doppia tecnologia occorre tener presente che: Alla prima accensione, si visualizzerà un lampeggio alternato dei tre led (stabilizzazione del sensore), e successivamente il lampeggio veloce del led ROSSO, ed infine il lampeggio veloce del led GIALLO.
  • Page 7: Specifiche Tecniche

    Attivi / disabilitati tramite microinterruttori Memoria Allarme Immunità RFI/EMI Fino a 2 GHz Led di segnalazione MW > giallo ; PIR > rosso; Allarme > blu Temperatura d’esercizio Autocompensazione Colorazione contenitore Art. DT12ECAM -> Bianco Dimensioni 37 x 125 x 40 mm...
  • Page 8: General Description

    1.GENERAL DESCRIPTION Remove screw plastic protection, in the upper side of detector, using a screw driver. ANGULAR BRACKET WALL MOUNTING Angular reversibile mounting bracket Staffa di montaggio angolare reversibile Staffa di montaggio a parete Wall mounting bracket...
  • Page 9 2.WIRING Terminal block description and purpose: 12V = Positive 12Vcc. GND = GND ( negative) AMK = Antimasking Output N.C. = TAMPER (N.C.) MEM = Inhibition input and alarm memory enable (positive) = Alarm output N.C. LED indicator LD4 = Blue Led (alarm) LD5 = Yellow Led (microwave) LD6 = Red Led (IR) Trimmer...
  • Page 10: Side View

    3. DETECTION PATTERN CHART SIDE VIEW MW IR 30 cm TOP VIEW 12 m MW IR 7,5° 12 m 4.LED INDICATORS STEADY ON BLINKING IR detection RED LED ///////////////// (no alarm) MW detection YELLOW LED ///////////////// (no alarm) IR detection BLU+RED LED ///////////////// (alarm)
  • Page 11 5. GENERAL INSTALLATION GUIDE Windows and door protection...
  • Page 12: Installation

    6.INSTALLATION To avoid troubles on the detector, it is necessary to check what follows: When the detector is powered on, LED indicator will flash alternatively (stabilization time). After that GREEN LED will flash fast and in the end YELLOW LED will flash fast. GREEN LED flashing fast means that detector is acknowledging environmental conditions necessary for “Beam antimask”...
  • Page 13: Technical Characteristics

    Enabled/disable through DIP Switch Alarm memory RF interference No Alarm up to 2GHz Led indicator purpose MW > yellow ; PIR > red; Alarm > blue Operating temperature Auto compensation Cover color Art. DT12ECAM -> white Dimension 37 x 125 x 40m...
  • Page 14 This page intentionally left blank...
  • Page 15 This page intentionally left blank...
  • Page 16 Made in Italy...
