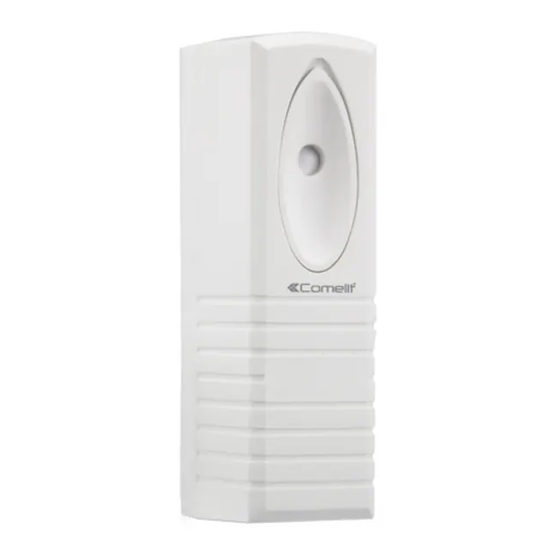

Comelit SD01A Quick Start Manual
  1. Manuals
  2. Brands
  3. Comelit Manuals
  4. Accessories
  5. SD01A
  6. Quick start manual

Comelit SD01A Quick Start Manual

Hide thumbs
1
2
3
4

Advertisement

Available languages

Available languages

Table of Contents

CODE: SD01A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD01A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comelit SD01A

Summary of Contents for Comelit SD01A

  • Page 1 CODE: SD01A...
  • Page 2 DIGITAL VIBRATION SENSOR Function introduction Digital vibration sensor, with microprocessor control, alarm triggered by a single vibration amplitude, or by a number of different sizes vibration signal accumulation within a time limit. The weak vibration signal shielding, and does not accumulate to generate an alarm, only the strong vibration or shock is repeated until the signal is considered valid and will be stored in the internal memory of the pulse count.
  • Page 3 Note: This device must be regularly tested to ensure proper analysis. The device is invalid when suffer man-made sabotage or power outage. Specifications: Sensor: Vibration sensor Calculator: Micro-processing control Alarm reply output: Solid-state relays, normally closed contact (approximately 30 ohms internal resistance), the largest 100mA/30V, open when an alarm Relay capacity: 100mA 12V, A 30ohm resistor in series Sensitivity setting: Continuously adjustable Pre-heat: Immediately...
  • Page 4 Rimontaggio del coperchio sulla base Avvitare le viti nella sede cava e quindi procedere a serrarle, chiudendo accuratamente il coperchio frontale. Installazione Fissare il rivelatore sulla superficie del serramento da proteggere. Cablaggio 1. Morsetti di alimentazione collegati alla sorgente di alimentazione a 12 VCC 2.
