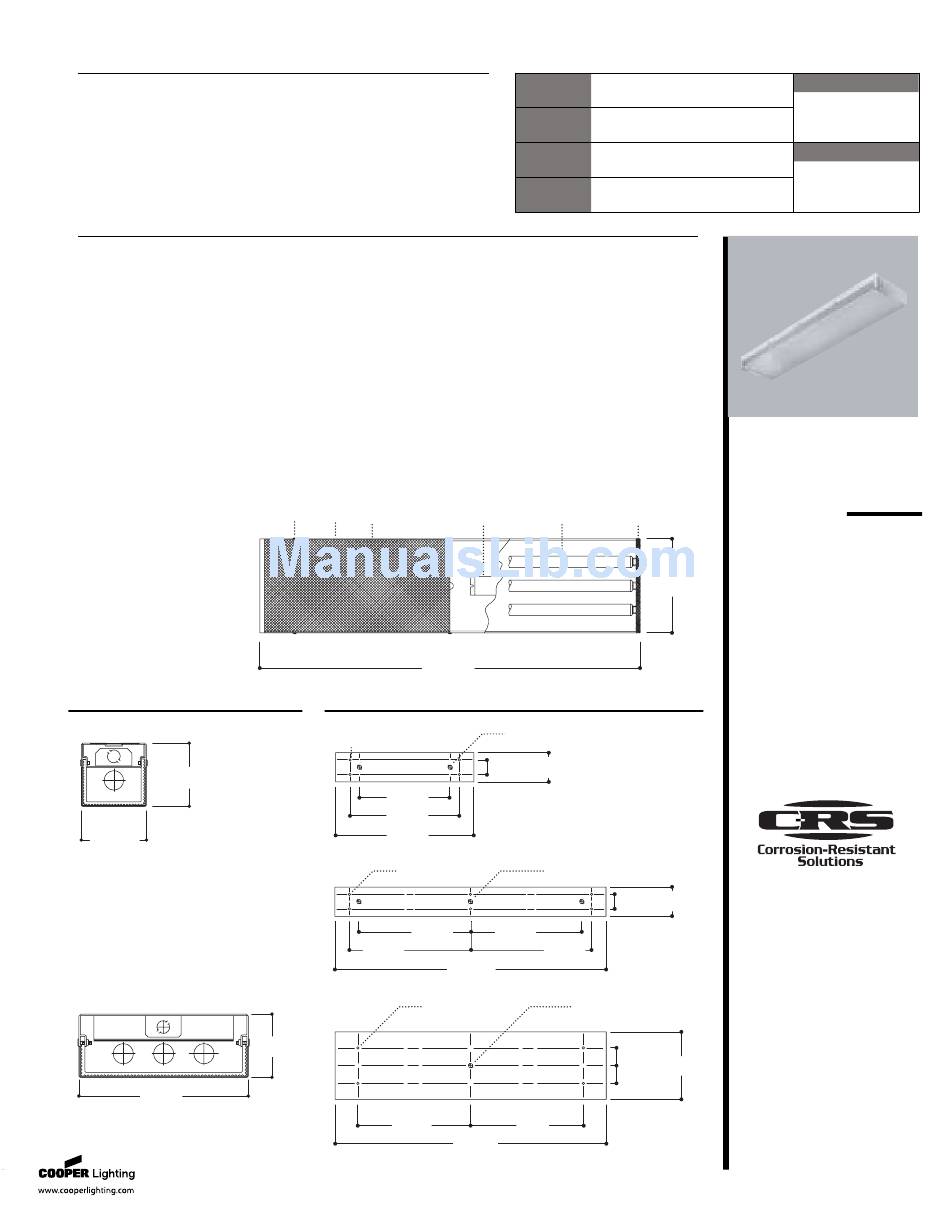

Cooper Lighting Fail-Safe FWSCR Specification Sheet

DESCRIPTION
The Fail-Safe FWSCR series combines maximum corrosion resistance and
energy-saving technology for your industrial environment. Designed to
retain the features of a commercial wraparound, the FWSCR assures a
maintenance-free light source for any corrosion-prone area. The surface-
mounted luminaire utilizes a stainless-steel continuously welded housing.
The flexible size of this 1- to 3-lamp fixture is capable of lighting any area.
Ceiling-mount, U.L.-listed and C.S.A.-certified for wet location.
SPECIFICATION FEATURES
Application
The FWSCR series is an excellent
choice for all corrosion-prone
industrial environments.
Consideration should be given to
any atmosphere consisting of
acids, alkalis, salts, gases or water.
Critical locations are where water,
condensation, vaporization,
heating and cooling may occur.
A ... Lens
Nominal .156 UV-stabilized clear
K12, impact-resistant, prismatic
polycarbonate refractor for high
efficiency, low surface brightness
and maximum strength.
SIDE DIMENSIONS
4 9/16"
[116mm]
4"
[102mm]
12 1/8"
[308mm]
TORX is a registered trademark
®
of Camcar Division of Textron Inc.
B ... Fasteners
Four to six captive stainless-steel
fasteners. Phillips head is standard.
Also available with tamper-
resistant screws.
C ... Housing
Die-formed 20-ga. stainless-steel
body with continuously welded
and ground ends. Standard 304
stainless-steel, cold-rolled and
annealed, with a natural brushed
finish.
D ... Lamps
(By Others)
B C A
[1245mm]
MOUNTING DIMENSIONS
(4) 3/8" [10mm]
Dia. Mt. Holes
16"
[406mm]
20"
[508mm]
25"
[635mm]
(6) 3/8" [10mm]
Dia. Mt. Holes
19 1/2"
[495mm]
22"
[559mm]
(4) 3/8" [10mm]
Dia. Mt. Holes
4 11/16"
[119mm]
20 1/2"
[521mm]
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
E ... Gasket
Concealed, polyurethane end
gaskets inhibit the entrance of
environmental contaminants.
F ... Ballast
Standard Class P, CBM/ETL ballast.
Labels
U.L.-listed, C.S.A.-certified wet
label.
F D
49"
(4) 7/8" [22mm]
Dia. KO
4"
2 1/2"
[102mm]
[64mm]
(5) 7/8" [22mm]
Dia. KO
[64mm]
19 1/2"
[495mm]
22"
[559mm]
49"
[1244mm]
7/8" [22mm]
Dia. KO
20 1/2"
[521mm]
49"
[1244mm]
FAIL-SAFE
E
Clear Prismatic or White
12 1/8"
[308mm]
2 1/2" 4"
[102mm]
E N E R G Y D A TA
For Energy Management related
technical data to support the
performance of this fixture series,
refer to the ordering information for
input wattage.
3 1/2"
[89mm] 12 1/8"
[308mm]
3 1/2"
[89mm]
04/09/2007 11:12:18 AM
®
Type
Date
FWSCR
17W - 120W
Fluorescent
STAINLESS-STEEL
SURFACE LUMINAIRE
1 and 3 Lamp
ADC041733
