Cooper Lighting Fail-Safe FDX Specification Sheet

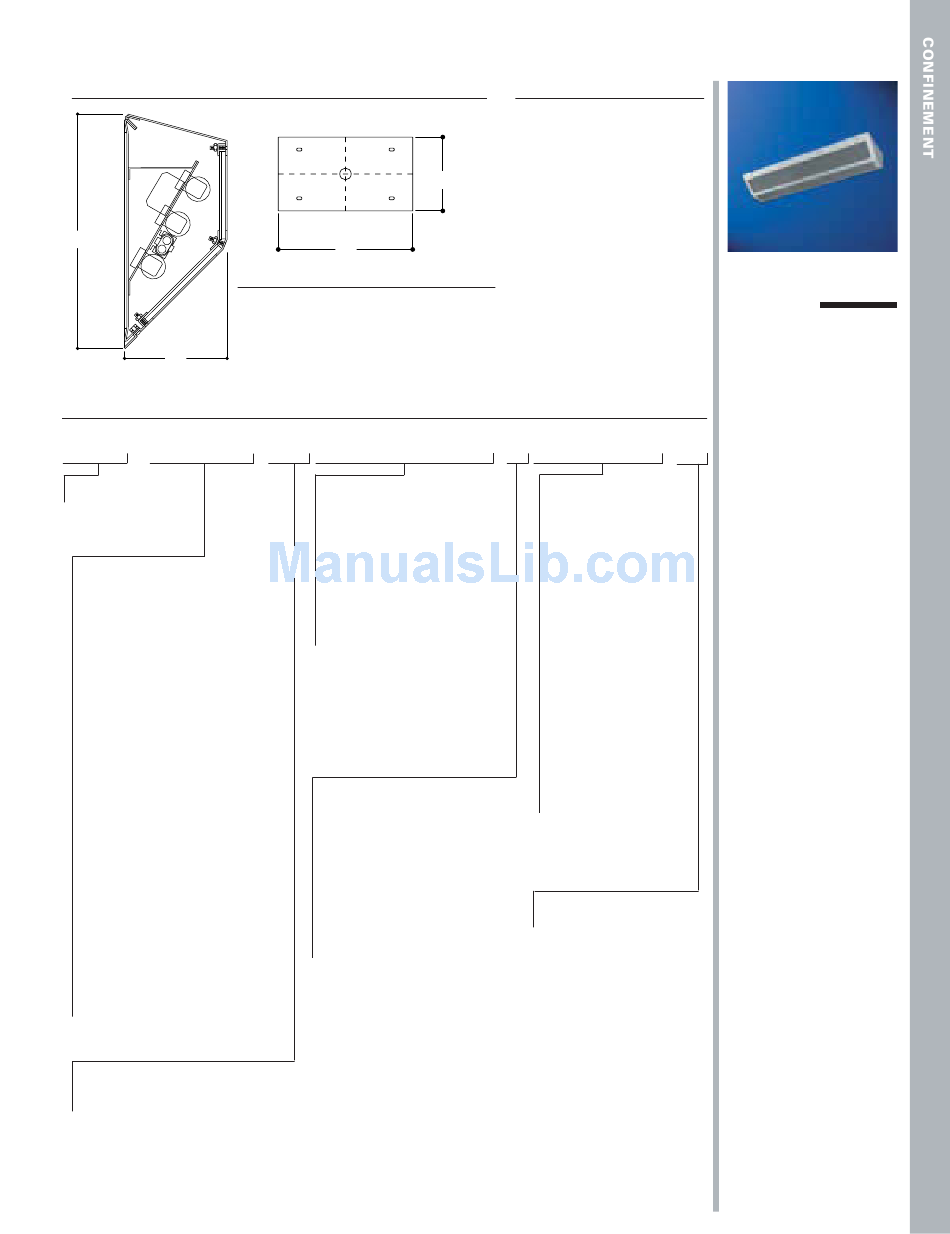

D I M E N S I O N S
B
B
1' Nom. Length
2' Nom. Length
4' Nom. Length
A
A
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : F D X - 1 / 1 1 3 - 1 2 0 - 8 0 / 8 6 - E B T 1 - G L R
Product Family
FDX=Maximum
Security
Wall
Luminaire
Lamp Type Biaxial Fluorescents
1' Nom. Length 1/140BX=(2) 40W
Lamps
Compact
1 Up, 1
Fluorescents
Down
1/113=(2) 13W Lamps
1 Up, 1 Down 4' Nom. Length
1/213=(3) 13W Lamps
T5 Fluorescents
1 Up, 2 Down
1/128=(2) 28W Lamps
2/113=(3) 13W Lamps
1 Up, 1 Down
2 Up, 1 Down
1/28=(3) 28W Lamps
2/213=(4) 13W Lamps
1 Up, 2 Down
2 Up, 2 Down
2/128=(3) 28W Lamps
2' Nom. Length 2 Up, 1 Down
2/228=(4) 28W Lamps
T5 Fluorescents
2 Up, 2 Down
1/114=(2) 14W Lamps
1 Up, 1 Down T8 Fluorescents
1/214=(3) 14W Lamps 1/132=(2) 40W Lamps
1 Up, 2 Down 1 Up, 1 Down
2/114=(3) 14W Lamps
1/232=(3) 32W Lamps
2 Up, 1 Down
1 Up, 2 Down
2/214=(4) 14W Lamps
2/132=(3) 32W Lamps
2 Up, 2 Down
2 Up, 1 Down
T8 Fluorescents 2/232=(4) 32W Lamps
1/117=(2) 17W Lamps 2 Up, 2 Down
1 Up, 1 Down
T12 Fluorescents
1/217=(3) 17W Lamps
1/140=(2) 40W Lamps
1 Up, 2 Down
1 Up, 1 Down
2/117=(3) 17W Lamps
1/240=(3) 40W Lamps
2 Up, 1 Down
1 Up, 2 Down
2/217=(4) 17W Lamps
2/140=(3) 40W Lamps
2 Up, 2 Down
2 Up, 1 Down
2
T12 Fluorescents 2/240=(4) 40W Lamps
1/120=(2) 20W Lamps 2 Up, 2 Down
1 Up, 1 Down
1/220=(3) 20W Lamps
1 Up, 2 Down
2/120=(3) 20W Lamps
2 Up, 1 Down
2/220=(4) 20W Lamps
2 Up, 2 Down
Voltage
120=120V
277=277V
UNV=120V through 277V
Notes: For additional options, consult your Cooper Lighting Representative. Specifications and Dimensions subject to change without
notice. Electronic ballast may cause interference with other electronic devices. If interference occurs, move the device away from the
product or plug/connect into a different circuit/outlet.
1 For specific electronic ballast, specify brand and catalog number.
require 80 option on fixture side. 4 For use with Compact Fluorescent, Biaxial, and 20W T12 lamps.
the TCS option see pages 1106 and 1107.
M O U N T I N G
B B
C C
A B C
6 3/8" 14 3/8" 12 3/16"
(162mm) (365mm) (310mm)
6 3/8" 14 3/8" 26 3/16"
(162mm) (365mm) (665mm)
6 3/8" 14 3/8" 50 3/16"
(162mm) (365mm) (1275mm)
Lens Type
/
Inner Layer Environmental
Side
(optional)
84=.125 Clear
90=.005 UV
Polycarbonate
Absorbing
Overlay 85=.187 Clear
Polycarbonate
Fixture Side
86=.250 Clear
80=.125 Prismatic
Polycarbonate
Acrylic
87=.375 Clear
81=.156 Prismatic
Polycarbonate
Polycarbonate
88=.500 Clear
82=.187 Prismatic
Polycarbonate
Polycarbonate
94=.187 Clear
93=.156 Prismatic
Tempered
Tempered
Glass
Glass
96=.250 Clear
Tempered
Glass
97=.375 Clear
Tempered
Glass
98=.500 Clear
Tempered
Glass
Ballast
Blank=Magnetic Ballast (Standard)
LEOC8=T8 Energy Saving Ballast
LE3=40W T12 Energy Saving Ballast
Electronic Ballast 1
EBT1=(1) Ballast for use with Compact Lamp
EBT2=(2) Ballasts for use with Compact Lamp
EB81=(1) Ballast for use with T8 Lamp
EB82=(2) Ballasts for use with T8 Lamp
EB51=(1) Ballast for use with T5 Lamp
EB52=(2) Ballasts for use with T5 Lamp
EB21=(1) Ballast for use with T12 Lamp
EB22=(2) Ballasts for use with T12 Lamp
EBX1=(1) Ballast for use with Biaxial Lamp
EBX2=(2) Ballasts for use with Biaxial Lamp
2 Electronic ballast not available for F20T12 lamps.
D E S C R I P T I O N
The Fail-Safe FDX Series
combines maximum security
construction features with
energy saving technology. This
wall mounted luminaire utilizes
a one piece clamshell housing,
security lensing and tamper
resistant fasteners to maximize
impact resistance and prevent
contraband concealment and
unauthorized fixture
penetration. An emergency
battery pack is available as an
option. U.L. listed and C.S.A.
certified for wet locations.
Options
DSR=Duplex Security
Receptacle
EBP=Emergency Battery
Pack
FNL=Fluorescent Night
Light
(Lamp by others.)
GLR=Fuse and Holder
RIF=Radio Interference
Filter
SPK=Speaker Housing
Compartment
3
(extends housing)
Auto Control Modules
ACM/FNL=for FNL
On/Off Switches
SPS=Security Push Button
TCS=Touch Control
System 5
Stainless Steel Housing
SSN=Natural Brushed
Finish
3
SSP=Polyester Powder
Coat Finish
4 Fasteners
SF3=Allen-Head
(center pin reject)
Accessories (Order Separately)
9306=Allen-Head Wrench
2
®
VRSD=TORX -Head Vandal
2
Resistant Screwdriver
3 88 and 98
5 For additional information about
FAIL-SAFE ®
FDX
1 3 W - 1 6 0 W
F l u o r e s c e n t
M A X I M U M S E C U R I T Y
W A L L L U M I N A I R E
• Lens choice of prismatic
acrylic, prismatic poly-
carbonate or prismatic
tempered glass on fixture
side, clear polycarbonate or
clear tempered glass on
environmental side
• Stainless steel tamper-
resistant TORX ® screws
with center pin reject are
standard. Allen-head
screws with center pin
reject are optional
• Clamshell design combines
die-formed 14 ga. CRS
body with continuous
welded and ground ends.
Standard white high
reflectance polyester
powder coat finish
• Lamps by others
• Lens secured by thru-studs
and vertically adjustable
internal CRS hold-downs
• Continuous, concealed
piano hinge
• Die-formed CRS backplate
(gauge to match housing)
• Standard Class P, CBM/ETL
ballast
• U.L. listed, C.S.A. certified,
standard wet label
COOPER LIGHTING
1453
