Features
• Four channels of active speaker level inputs (up to 40V input
handling)
• Variable outputs with discrete level controls
• AccuBASS® processing for correction of bass roll-off
• Internal channel summing
• Load Selection Switch
• GTO
Signal Sensing
TM
• Audio Sense turn-on
• Ground Isolation Switch
• ACR-1 dash remote included
• Fun for all ages

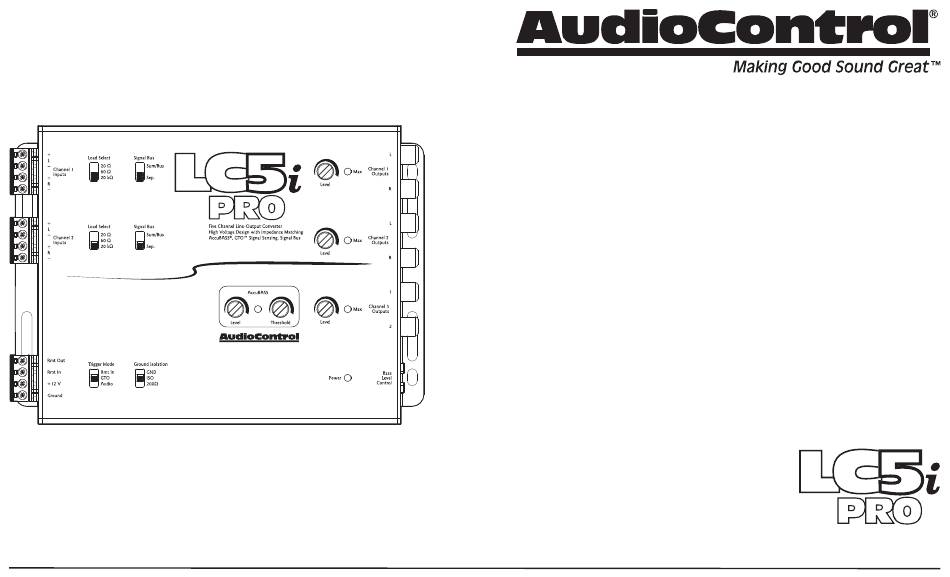

FIVE CHANNEL LINE OUTPUT CONVERTER WITH ACCUBASS®
Quick Start Guide
Advertisement
Table of Contents
Related Manuals for AudioControl LC5i PRO
Summary of Contents for AudioControl LC5i PRO
- Page 1 Features • Four channels of active speaker level inputs (up to 40V input handling) • Variable outputs with discrete level controls • AccuBASS® processing for correction of bass roll-off • Internal channel summing • Load Selection Switch • GTO Signal Sensing •...
-
Page 2: Important Safety Instructions
10. Provide +12V and ground wiring of sufficient size to ensure adequate Recycling notice: If the time comes and this apparatus has fulfilled current to the device. For the LC5i PRO, this means 16-14 gauge wire. its destiny, do not throw it out into the trash. It has to be carefully 11. -
Page 3: Quick Start
14. Adjust AccuBASS using the AccuBASS Threshold and Level knobs. 2. Pick a suitable mounting location that will provide access to the controls and connections. Protect the LC5i PRO from heat, moisture, and dirt. 15. Enjoy the drive! 3. Use the integrated mounting brackets to mount the LC5i PRO. - Page 4 3. Ground Isolation – This handy switch allows the you to change how the Rmt In - This is the traditional way to turn on the LC5i PRO and gives you LC5i PRO is grounded. Sometimes when installing car audio equipment, more control of exactly when the unit will turn on.
-
Page 5: Channel Inputs
C) have your LC5i PRO professionally installed by an authorized AudioControl Dealer. 5. Load Select – The LC5i PRO is designed to present NO load to the output of the factory amp, which can make some factory amps upset and stop passing audio. -
Page 6: Channel Outputs
LC5i PRO. With the factory system set to its maximum undistorted volume, match the output level of the LC5i PRO to the input maximum of your after market amplifier. If the Maximized Light turns on, the LC5i PRO output is distorting. - Page 7 Setting AccuBASS® AccuBASS is a feature that restores bass frequencies on factory systems that To keep AccuBASS on all of the time so it does not turn on/off at a set roll off the bass as you increase volume. If you can hear that the bass does not threshold, turn AccuBASS Threshold all the way up (clockwise).
-
Page 8: Signal Bus
Signal Bus can be set to route (bus) the audio signal from Channel 2 to Channel 3 for that much-needed subwoofer channel. Below are some diagrams of typical scenarios of how you can setup your LC5i PRO Add a sub channel to a 4 channel system by setting Channel 2 to Sum/Bus. This will split and route the signal on Channel 2 to the Channel 3 Outputs. - Page 9 System Examples System #1: Basic Factory Upgrade System FACTORY SOURCE FRONT FRONT REAR FRONT REAR REAR REMOTE OUT Notes: Channel 2 Signal Bus switch set to Sum/Bus to route (bus) Channel 2's signal to Channel 3 Outputs.
- Page 10 System Examples Continued System #2: Factory Amplified Upgrade System FACTORY SOURCE TWEETER MIDRANGE HIGH PASSED FACTORY PASSED AMPLIFIER WOOFER REMOTE OUT SUBWOOFER Notes: The factory amplifier has a 90Hz & UP high passed outputs going to factory component speakers and 90Hz & DOWN low passed output for factory subwoofer. Channel 1 and 2 Signal Bus switches set to Sum/Bus to combine (sum) both signals.
-
Page 11: Specifications
Weight & Dims ........1.10 lbs. / 7”L x 5.1”W x 1.14”H Warranty ....5 Year Warranty (www.audiocontrol.com/warranty/) For more information about this fine product, and for details of the limited warranty and repair services, please visit www.audiocontrol.com... - Page 12 The End ( This page is an easy read) Quick Start Guide PN 915-037-0 Rev D...
