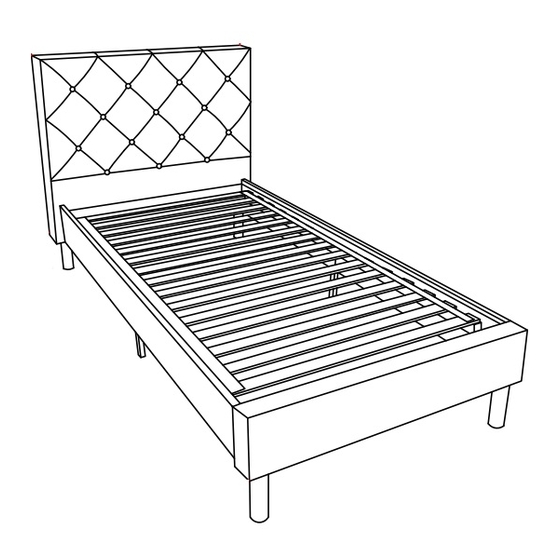

ASSEMBLY INSTRUCTION
RAYNA SINGLE BED
ITEM CODE 75824
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart furniture, Customer Service Free call 1800 351 084
1
75824
Advertisement
Table of Contents
Related Manuals for Amart Furniture RAYNA 75824
Summary of Contents for Amart Furniture RAYNA 75824

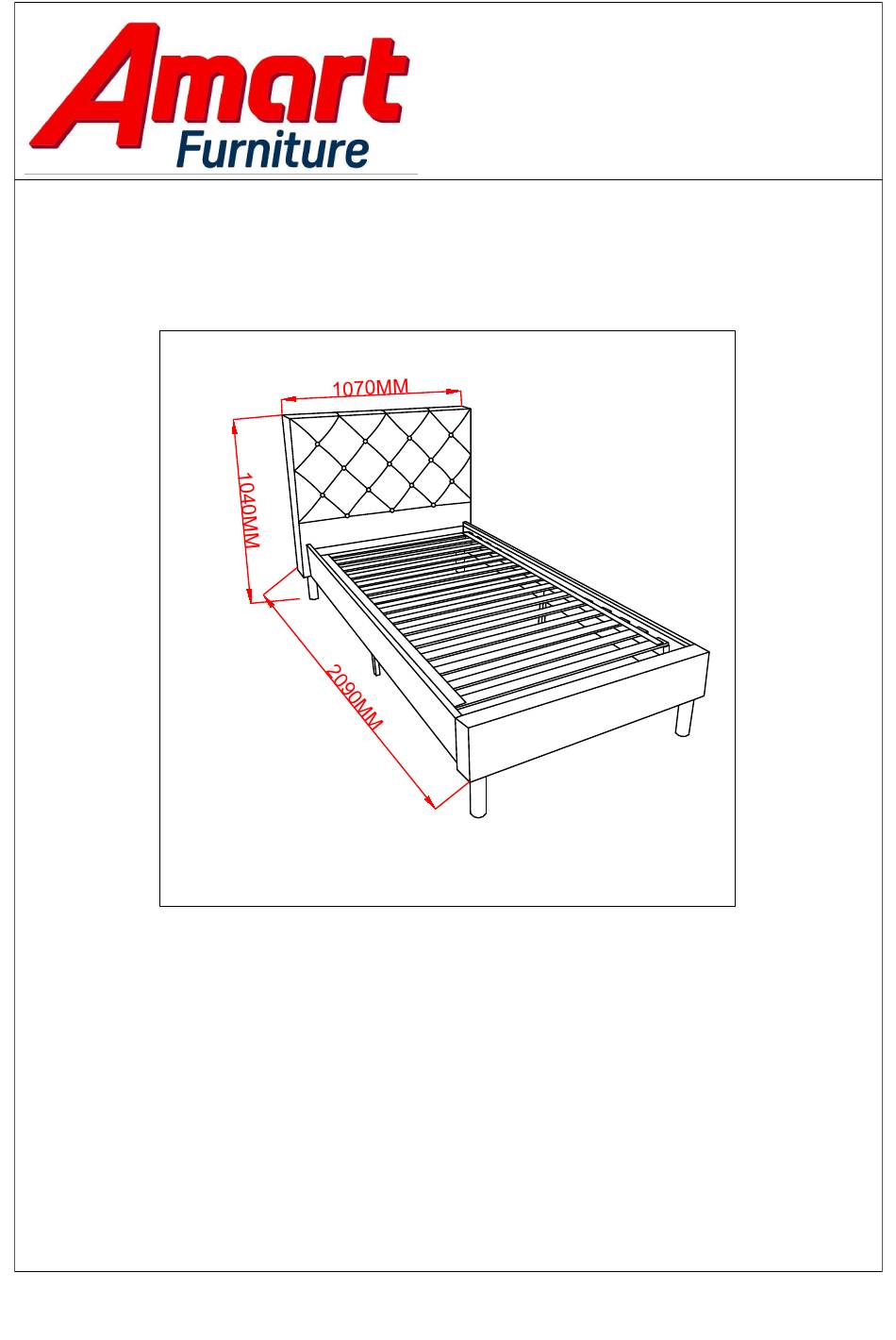

- Page 1 ASSEMBLY INSTRUCTION RAYNA SINGLE BED ITEM CODE 75824 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart furniture, Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd,Qld, Brisbane Australia.
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.
- Page 3 PARTS LIST 1PCS 1PCS 1PCS 1PCS 1PCS 1PCS Right Rail Right Rail Left Rail Left Rail Footboard Headboard 2PCS 1PCS 4PCS Support leg Slat M5X100mm x1pcs M6X19mm x8pcs M4X65mm x1pcs M6X20mm x8pcs M4X30mm x8pcs Screw Flat washer Bolt Allen key Allen key 75824...
- Page 4 STEP 1 Lay the Headboard(1) down, bottom facing up.Fasten the Feet(9) to the Headboard(1). STEP 2 Lay the Footboard(6) down, bottom facing up.Fasten the Feet(9) to the Footboard(6). 75824...
- Page 5 STEP 3 Connect the side rails together by attaching the support leg (7) with bolts (C) and washers (E) and tighten with Allen key (A). Loosen bolts in Headboard / Footboard (1/6), place brackets of side rails (2/3) and (4/5) over the STEP bolts and tighten bolts using Allen key (B).
- Page 6 Attach slats (8) to side rails (2/3) (4/5) using screws (D). STEP 5 ASSEMBLY IS COMPLETE CAUTION: ALWAYS LIFT YOUR BED WHEN MOVING/ RELOCATING - DO NOT DRAG. DRAGGING CAN CAUSE THE SUPPORT LEGS TO BEND/BREAK . 75824...
- Page 7 Fabric Care and Maintenance REGULAR CARE: • Protect from direct sunlight • Vacuum regularly using low suction • Rotate reversible cushions regularly CLEANING: • Do not remove cushion covers for separate cleaning even though they may have zippers • Do not wash, Do not dry clean, Do not shampoo clean •...
