Shaw HDDSR 800 How To Install

How to install your new set-top box.
Follow these simple steps to install your new set-top box and your new Shaw Direct remote.
What's in the box?
Power
Time to get connected
1. Connect the coax cable from your wall to the "Sat 1" port
on your set-top box. Make sure the connection is secure.
Television
HDMI In
SAT 1 VIDEO L AUDIO R
OUT
3. Connect the power cord to the set-top box and an electrical outlet.
Wait one minute while your set-top box powers on.
4. When prompted, use your new Shaw Direct remote to go through a
short initial setup process. If you have Internet, connect your set-top
box to your WiFi network for instant access to Video On Demand and
Pay-Per-View titles.
5. Continue to follow the on-screen prompts until the screen reads 'Signal Found!'
This step should take approximately 5 minutes to complete.
HDMI
2. Connect the HDMI cable to the HDMI port on your set-top box and the HDMI
port on your TV. You can also use RCA cables (not included) for a standard
definition TV.
Turn on your TV and set it to the same HDMI input you connected the cable to.
HDMI Out
2
USB INTERNET SERIAL POWER
Shaw Direct Remote
Wall Outlet

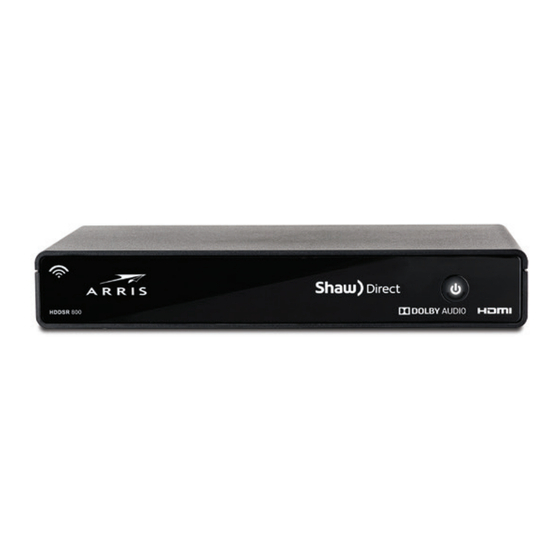

Set-Top Box
(HDDSR 800)
SAT 1 VIDEO
SAT 1 SAT 1 VIDEO VIDEO L AUDIO R USB INTERNET SERIAL POWER
OUT
SAT 1
Power
SAT 1 VIDEO L AUDIO R USB INTERNET SERIAL POWER
OUT
1
3
