AMTC FOAMFLO ASD-500 Installation & Operation Manual

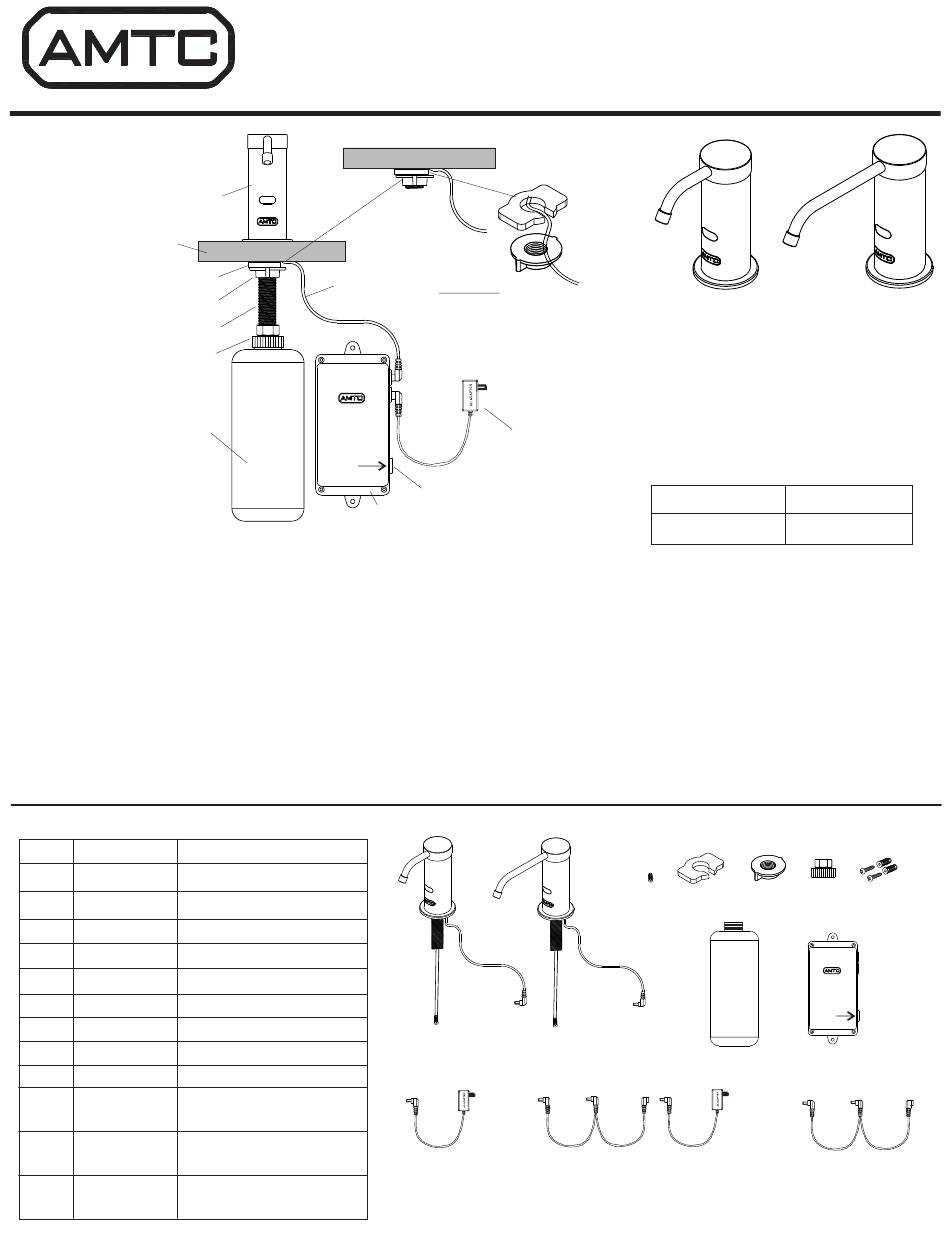

Installation Diagram

Spout
Countertop or Sink
Max. Thickness: 2" (50mm)
Spacer
Mounting Bracket
Threaded Stem
Soap Bottle Coupler
Foam Soap Bottle
(800 mL)
Installation Instructions (refer to installation diagram above)
1. If hole is not present drill a 1" (25.4mm) hole on countertop (refer to installation template on page 3).
2. Mount the spout onto the countertop or sink and hand tighten mounting bracket and spacer without damaging sensor cable.
3. Install batteries into battery pack and mount battery pack onto back wall using provided hardware
(battery pack must be installed within 15" (380mm) of spout).
Note: An optional 6 Volt AC power adapter (Part# AD05) can be purchased separately if electrical power is required.
4. Screw soap bottle coupler onto threaded stem and hand tighten.
5. Fill up bottle with foam soap (Important: Use low viscosity non-lotionized foaming soap with no abrasives).
*Viscosity Range: (mPa•s or Cp): 1-100 / pH Range: 5.5 - 8.5
*Failure to use soap products within the required range of viscosity and pH may result in damage to product and
void warranty.
6. Screw soap bottle onto soap bottle coupler and hand tighten.
7. Connect sensor cable onto battery pack (you will hear pumps and soap will purge for approximately 5 seconds).
8. Soap dispenser is now ready for use.

Parts List

Ref # Part #
A ASD-5SPT Spout
A-1 ASD-5SPTEL EL Spout (6" Long)
B ASD-5FA Spout Filter Assembly
C
ASD-5SPA Spacer
D ASD-5MB Mounting Bracket
E ASD-5SBC Soap Bottle Coupler
F ASD-5MSC
Mounting Screws
800ml Soap Bottle
G ASD-5SB
H ASD-5BP Battery Pack
6-Volt AC Power Adapter
AD05
I
(Optional)
6-Volt AC Power Adapter
AD05-2
J
w/Extension for 2 Devices
Extension Only for AC
K AD05-2-EXT
Power Adapter
AUTOMATIC FOAM SOAP DISPENSER
INSTALLATION & OPERATION MANUAL
™
Sensor Cable
Foam soap refill only
(Solo jabon de espuma)
www.amtcorporation.com
Reset Button
Press and hold for 7 seconds to prime soap
(Aprete y sostenga por 7 segundos para subir el jabon)
Battery Pack
4-D Size
(Batteries Sold Separately)
Description
ASD-500 FOAMFLO
Attention:
Make sure sensor cable is passed
through the opening of the spacer
to avoid damage.
AD05
(Optional) 6 Volt AC Power Adapter
(Optional-Sold Separately)
Reset Button
A A-1
I
(Optional-Sold Separately)
Page 1 of 3
®
ASD-500
Low Battery Indicator
Low Soap Indicator
B C
Foam soap refill only
(Solo jabon de espuma)
G
J
(Optional-Sold Separately)
ASD-500EL
Flashing BLUE LED
Flashing RED LED
D E
F
www.amtcorporation.com
Reset Button
Press and hold for 7 seconds to prime soap
(Aprete y sostenga por 7 segundos para subir el jabon)
H
K
(Optional-Sold Separately)
