- Page 1 LED Curing Light USER MANUAL...
-
Page 2: Table Of Contents
Contents 1. Symbols ..................2 2. Technical Data................3 3. Scope ..............4 4. Before Use .................5 5. Setting up ............6 6. Use Interface ................8 7. Setting ..................9 8. Operation ..................10 9. Operation mode ..............12 10. Maintenance ................13 11. Error Warning ................13 12. Troubleshooting ..............14 13. -
Page 3: Symbols
1. Symbols If the instructions are not followed properly, Warning operation may lead to hazards for the product or the user/patient. Additional information, explanation of NOTE operation and performance. Do not dispose of with normal household waste.(WEEE) Serial number Catalogue number Manufacturer Date of manufacturer Type B applied part... -
Page 4: Technical Data
2. Technical Data Model Dimensions（C25 Plus) 217mmX132mmX90mm Weight 600g ±10% Li-18650 batter y: 3.7V, 2600mAh, Power supply 9.62Wh Charger power supply AC 100-240 V, ±10% Charger power output 5.0V 1A Power Frequency 50/60Hz，±10% Charger nominal power input 2500mW/cm² Light intensity 1200mW/cm²... -
Page 5: Scope

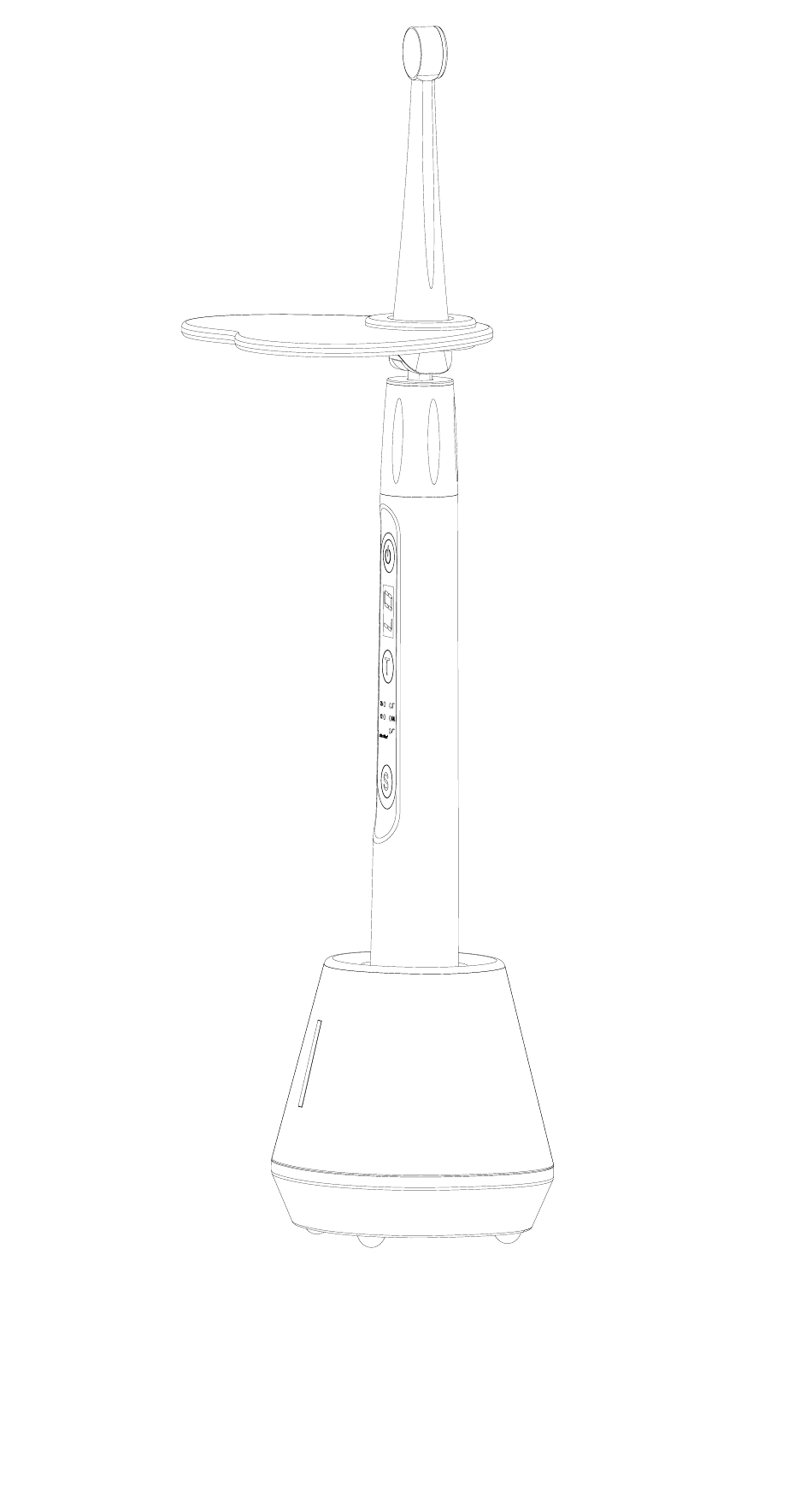

Scope Parts Identification Light source head Protective light shield handpiece Adapter Disposable sleeve Charging base... -
Page 6: Before Use
Components and accessories Handpiece (1pcs) Light source head(1pcs) Disposable sleeve（100pcs） Adapter (1pcs) Charging base (1pcs) Protective light shield (1pcs) Before Use Scope of application Suitable for the purpose of curing dental resins and composites or detecting caries. This device must only be used in hospital environments, clinics or dental offices by qualified dental personnel. -
Page 7: Setting Up
Setting up 5.1 Install the light source head 5.3 Install the protective light shield Make sure the light source head alignment the slots of handpiece, M a ke s u re t h e l i g h t s o u rc e p l u g t h e m to g e t h e r u n t i l i t head alignment the slots of the “click”... - Page 8 5.4 Charging Put the handpiece all the way into the charge base, the charge state will show on the screen and plug the USB of adapter into the charge base, and plug the other end into a power outlet, the Power LED on charge base will light up (green).
-
Page 9: Use Interface
Use Interface Panel key main switch “T” Timing key “S” Selecting key Turn Power On Press more than 0.5 seconds to turn on the device Time Change P re s s T i m i n g ke y d u r i n g standby state Mode Change Press Selecting key during... -
Page 10: Setting
Setting Modify setting Curing Mode There are 3 built-in memory programs, namely NORMAL, RAMP, PULSE. Press selecting key to change the working mode during standby state. Light intensity setting The RAMP and PULSE mode are setting on 1200mW/cm², and NORMAL mode cand be changed to 1200mW/cm²... -
Page 11: Operation
Operation Charge It means the battery is too low, less than 15% remains, please charge. NOTE If the power if less than 15%, must be recharged within 30 days, otherwise the battery will be damaged. Charging indicator appears on the screen, and flashes slowly , when battery is fully charged or in a state near full charge, the flash will stop and show as picture. - Page 12 Handpiece operation After the handpiece main unit is turned on, press to start the light intensity output, and the time will start counting down. Press any key to interrupt the output during the light intensity output. There is a beep every 5s while working, and the output is automatically turned off after the countdown ends.
-
Page 13: Operation Mode
Warning 1. Before using, please try it outside the oral cavity to ensure that there is no problem with the function of the device. 2. Do not disassemble the lamp during treatment . NOTE 1. If there is any abnormal functioning, stop using the device and report to company 2. -
Page 14: Maintenance
Maintenance Disinfection components handpiece Light source head Adapter Charging base Protective light shield Wipe all the surfaces with a cloth lightly moistened with Ethanol for Disinfection (Ethanol 70 to 80vol%) at least 2min, repeat for 5 times. Warning 1. Do not use anything except Ethanol for Disinfection (Ethanol 70 to 80 vol%). -
Page 15: Troubleshooting
Troubleshooting When trouble is found, check the following points before contact- ing your distributor. If none of these are applicable or the trouble is not remedied even after action has been taken, the product may have failed. Contact your distributor. Ref. -
Page 16: Emc Tables
EMC Tables Guidance and manufacturer’s declaration – electromagnetic emissions The C25 Plus is intended for use in the electromagnetic environment speci- fied below. The customer or the user of the C25 Plus should assure that it is used in such an environment. E l e c t r o m a g n e t i c e n v i r o n - Emissions test Compliance... - Page 17 M a i n s p o w e r Electrical fast ±2kV ±2kV quality should be Transients 100kHz repetition 100kHz repetition that of a typical /bursts frequency frequency c o m m e r c i a l o r IEC 61000-4-4 hospital environ- ment.
- Page 18 Guidance and manufacturer’s declaration – electromagnetic immunity The C25 Plus is intended for use in the electromagnetic environment specified below. The customer or the user of the C25 Plus should assure that it is used in such an environment. Electro Compliance magnetic Immunity test...
- Page 19 Recommended minimum separation distances Nowadays, many RF wireless equipments have being used in various health- care locations where medical equipment and/or systems are used. When they are used in close proximity to medical equipment and/or systems, the medical equipment and/or systems’ basic safety and essential performance may be affected.
-
Page 20: Statement
Statement Service Life The service life of products is 5 years. Disposal The package should be recycled. Metal parts of the device are disposed as scrap metal. Synthetic materials, electrical components, and printed circuit boards are disposed as electrical scrap. The lithium batteries are disposed as special refuse.
