- Page 1 TR-DPM03 Free Fog Mirror User Manual...

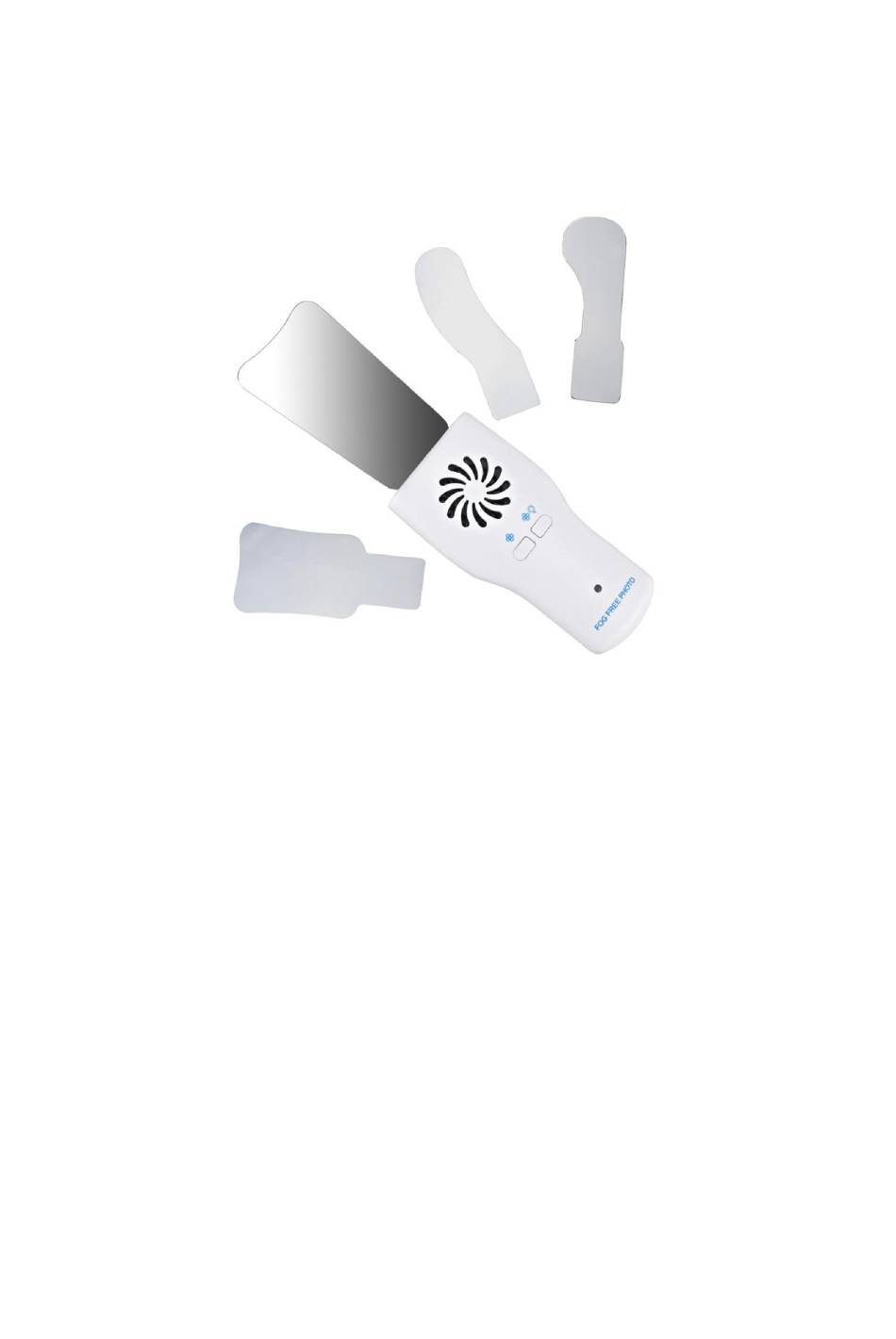

- Page 2 1. Component Introduction 1.Matching four reflectors with different roles. 2.It is made of 8K mirror 304 stainless steel material, stamping process and highly polished finish. 3.The reflector is uniquely designed by experienced clinical experts, and the turning angle distance at the back has been repeatedly demonstrated. 4.It conforms to the Asian’s design, and can fully open the soft tissues of the cheeks at the back of the mouth, so that the joints can be photographed completely and clearly.
- Page 3 2. Host parameters It is powered by a lithium battery, and the charging voltage is 5V. In the charging process, the red light, full, green light, charging time of about 2-3 hours. 3. Description of the buttons on the main unit 1.The right button of the main unit is the air blowing and LED light source switch, lightly press to turn on the air blowing and LED light...
- Page 4 4. Usage and precautions 1.Using a pulling hook to pull the corners of the mouth apart 2.The reflector is placed on the pin position of the host. 3.Turn on the blower and light buttons. 4.The reflector rotates into the mouth. 5.Pay attention to the position of the reflector, don’t lift up and touch the teeth to be photographed 6.The shooting is completed when the subject's mouth is at its maximum.
- Page 5 Then rinse with clean water and blow dry in time with an air gun. Drying is not recommended, because moisture will leave marks and corrode the mirror surface. 6. Storage Store in a cool and dry place. If it is not used for a long time, please place it in a dry environment.
