  • Page 1 Operation and Installation Manual Without WI-FI Type...

  • Page 2: Table Of Contents

    Contents ..........3 1. Introduction………………… 1.1. Introduction of products ..................3 1.2. Standard configuration..................3 1.3. Optional configuration..................4 1.4. Characteristic....................4 Function..…………………………………………………………. 2.1 LCD monitor…. …………………………………..……………………………………4 2.2 Teeth bleaching………………………………………………………………………...5 2.3 intra oral camera ...…………………………………………………………………….5 ..............6 Operation 3.1 Teeth bleaching……………………………………………………………….…………6 3.2 intra oral camera……………………………………………………………..………….8 3.3 Assembling instruction illustration……………………………………………………12 4.

  • Page 3: Introduction

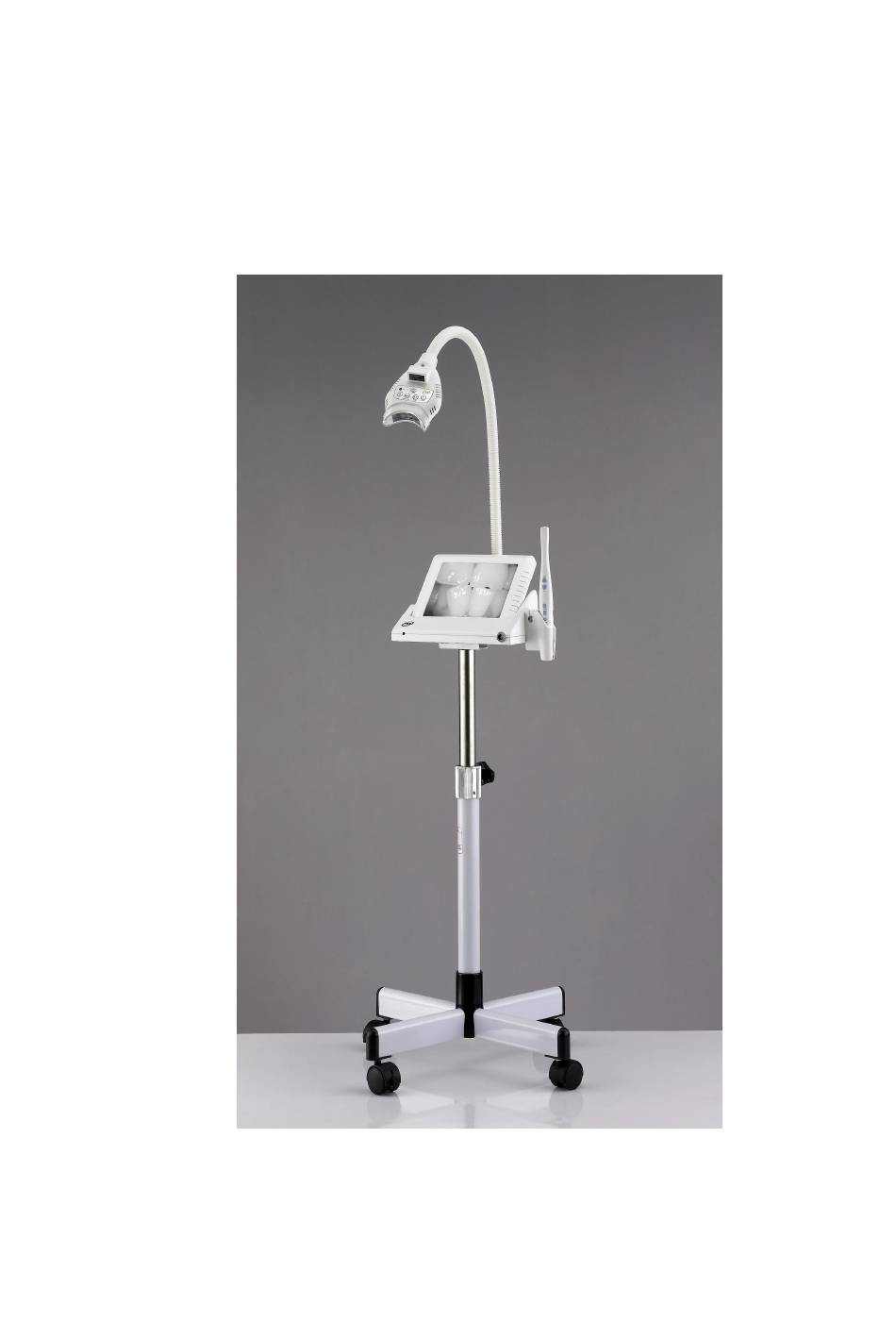

    1. Introduction 1.1. Introduction of products Dear customers, Thanks for buying our company’s products, this product is a multifunctional teeth bleaching machine, it contains teeth bleaching, intra oral camera and 8inch monitor. It makes the machine more useful and convenient. 1.2.

  • Page 4: Characteristic

    1, Wireless transmitter M-91B 2, Wireless receiver M-97B 3, Small screen M-99 1.4. Characteristic 1. Combines 8inch LCD monitor, teeth whitening machine and an intra oral camera. It’s a multi-functional all-in-one teeth whitening machine. . 2. High efficiency goose pipe design, adjust angle at random, convenient for use. 3.

  • Page 5: Teeth Bleaching

    2.2 Teeth bleaching Specification: Broad Spectrum: 420nm~472.5nm (Host lamps) Light Output power: up to 2000Mw/CM 100-240V, 50/60Hz, 1.2 A for global use Weight: 8 Kg Max. Working Radius: 50cm High Uniformity of light output 2.3 Intra oral camera Specification: 1.1/4 CMOS 1.3 MP 2.Video or USB output 3.

  • Page 6: Operation

    6. 2 or 3 buttons control, can control previous picture, next picture, and delete picture from the cameras directly 7. 2 capture angles, display the clear images 8. Built in protection voltage 9. Camera with 512mb Micro TF card inside it, it can save more than 500 pictures. 3.
  • Page 7 Time down Time up Power Start/stop Pause Reverse: Power on/off Turn on the teeth Whitening Accelerator: A) plug in the teeth whitening Accelerator B) Turn on the power switch. Warning: When overload, bulit-in fuse blows, teeth whitening accelerator will power off, after change the fuse, the eeth whitening accelerator will be in normal operating condition.

  • Page 8: Intra Oral Camera

    Operating the Teeth whitening Accelerator: A) Start/ Stop Button: Turn on /off the light by pressing the “STOP/START “button. B) Pause button: Stop the time counting and emitting light by pressing the “Pause” button, the remaining whitening time will sparkle on the digital indicator. Press the “Pause” button again, light will emit and time will count continually.
  • Page 9 1.Freeze 2. Save The Camera lens and the six LED light 1. Press option 1, Power on the camera; press option 2 for a longer time, power off the camera 2. Press option 1, freeze the image; press option 2, save image into SD card. C.
  • Page 10 Notice: Please let the back of SD card insert into the camera. D, Let another side connect with this machine E. Use the camera Press the Freeze button, the camera will be power on, After capture the image, press Save button , the images will be saved into Micro SD card, press the previous and next buttons, customers can check the images which has been captured by camera , Micro SD card can save 500 pictures.
  • Page 11 Same as wired camera’s operation, press Freeze button, and the camera will be power on, after capture the image, press save button, the images can be saved in the SD card, and press the previous and next buttons, customers can check the images what had been captured by camera.

  • Page 12: Assembling Instruction Illustration

    3.3 Assembly Instruction illustration Warning: When this screw is loose, the spring will come out!

  • Page 14: How To Resolve Troubles

    4. How to solve troubles If there are some troubles of products, Please see below special case firstly. If still can’t be solved, please contact your local dealer. Item trouble states resolve methods 1.check the power socket if it is the products can't be startup when open (ON/OFF)switch) 2.check the cable if it is connected...

  • Page 15: Notice

    5. Notice Prior to installation and start-up of the unit, carefully read the instructions provided herein ,As with all technical devices, the proper function and safe operation of this unit depend on the users compliance with the safety recommendations presented in these operating instructions.
