Summary of Contents for CHIYU CYT-166GC

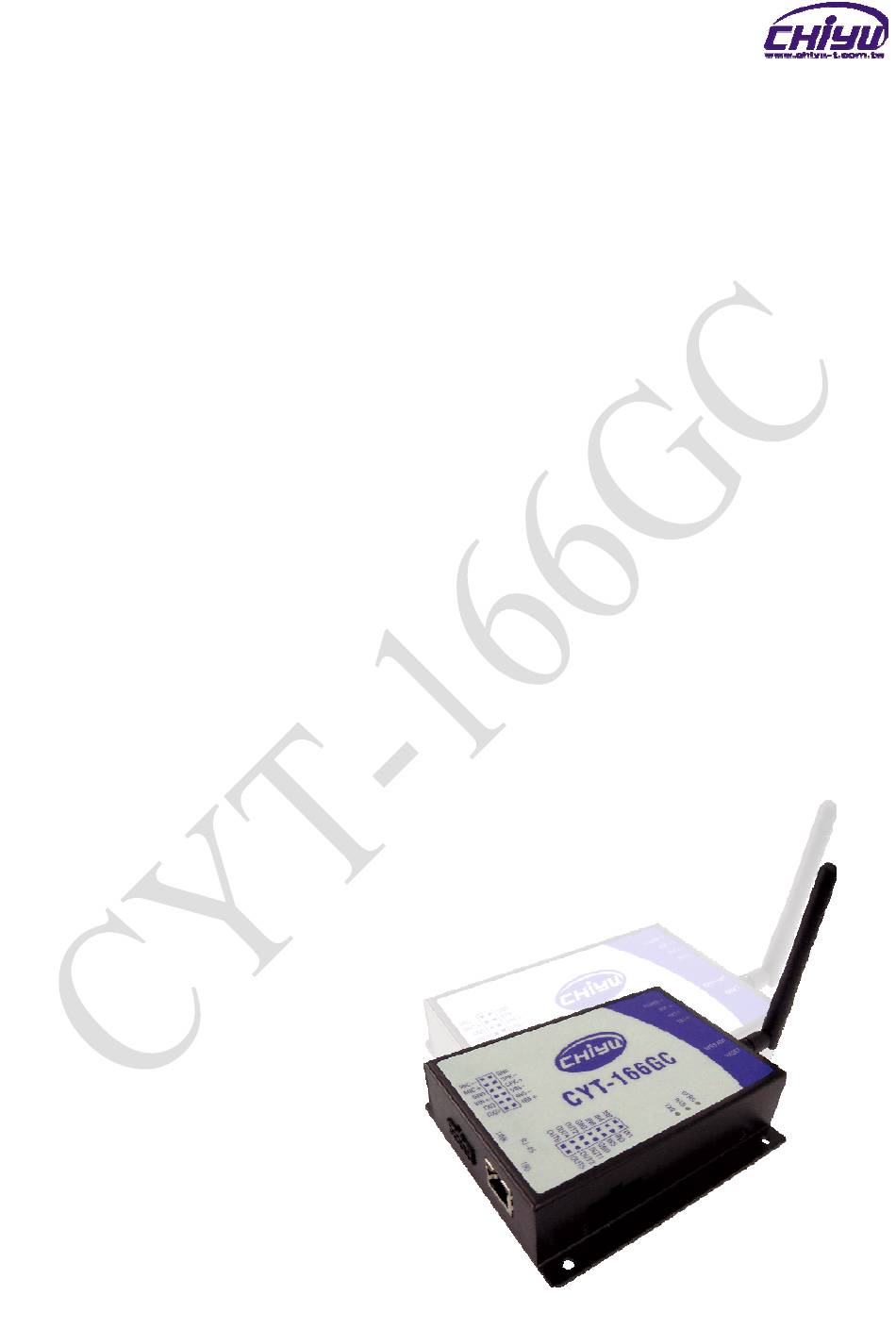

- Page 1 CYT-166GC User Manual Document Version 1.0 Web Version 1.2 2011-04-28 Firmware Version 1.03.00,May 20 2011...
-
Page 2: Table Of Contents
【Index】 Ⅰ、Hardware Introduction......................1 Ⅱ、Product Overview........................3 Ⅲ、WEB Login ..........................4 Ⅳ、Web Function Instruction ....................10 One Page Quick Setup ......................... 10 Advanced Setup .......................12 1、Operation Mode....................12 (1)TCP Server .......................12 (2)TCP Client......................13 (3)UDP ........................14 2、Serial Mode ......................15 Management........................16 1、Device Administration Setting ................16 2、Status Monitor ......................17 3、I/O Status ......................18 4、Backup &... -
Page 3: Ⅰ、Hardware Introduction
－CYT-166GC－ Ⅰ、Hardware Introduction Appearance Specification Item Specification 16 Bits, 100MHZ Memory 4MB Flash & 8M SDRAM System never halt Watchdog Ethernet 10/100 Base-T/Tx , Automatic MSI/MDI-x port Communication Port Choose one: RS232 or RS485 TXD,RXD,GND (1200BPS ~ 230.4KBPS) - Page 4 GPRS:UL 85.6kbps/DL 85.6kbps EDGE: DL 236.8 kbps/UL: 236.8 kbps WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbps UL/DL HSDPA: UL Mbps/DL 3.6Mbps Static Receiving Sensitivity for GPRS module WCDMA/HSDPA: Compliant with 3GPP TS 05.05(R99) GSM/GPRS/EDGE 850 MHz/900 MHz/1800 MHz/1900 MHz: Compliant with 3GPP TS 05.05 (R99) I/O Control 6 DI and 6 DO...
-
Page 5: Ⅱ、Product Overview
Real time operation system and complete TCP/IP protocol enable CHIYU’s CYT-166GC powerful converter not only providing complete system with highly efficiency but also able to link with network. Easy to install and wire. The Web interface of CYT-166GC is simple, easily to operate, and without operation system limitation. -
Page 6: Ⅲ、Web Login
Web browser, and then conduct setting. Preparation Before conducting CYT-166GC setting, please assure the following: PC has connected to CYT-166GC, and PC and CYT-166GC are situated in the same WAN with power supplied. If the default IP address (192.168.168.125... - Page 7 3 、While the IP Search window shows up, it will display all CYT-166GC in LAN, and show Device name, Location, Model Name, Address, Subnet Mark, Gateway, Address. Select particular CYT-166GC, then its related information will appear below the window, as shown: 4、The showed information of CYT-166GC can be revised directly in the window, the part...
- Page 8 WAN, if want to get access into the Web of CYT-166GC, has two methods: (1)Open IP Search, select and double click particular CYT-166GC, then to enter its webpage. (2)While the internet explorer opened, input CYT-166GC IP address to enter its webpage Remark：...
- Page 9 , open and search for , click Alter Interface Card on the upper-left side. 《Step 2》 Click LAN link, select content, then the LAN settings will be shown, click Internet Protocol(TCP/IPv4), click and input same setting as CYT-166GC, as below figure. - 7 -...
- Page 10 How to login to CYT-166GC Web via web browser 1、Start Web browser ( ig: WIN 7 IE ), input CYT-166GC’s IP Address, for example: use the default CYT-166GC IP Address: http://192.168.168.125 2、If connection failed, should check: If CYT-166GC installed and its power supplied properly ...
- Page 11 3 、 If the connection with CYT-166GC is successful, then it will display a message window for User name and Password, the default for user name and Password is: admin/admin, as shown below: 4、While the user name and password entered, a Web setting interface of CYT-166GC will be showed, enter it will then display a “...
-
Page 12: Ⅳ、Web Function Instruction
Ⅳ、Web Function Instruction One Page Quick Setup - 10 -... - Page 13 Function instruction Function Description IP Address Set the IP address of the CYT-166GC，default setting is 192.168.168.125 Subnet mask Set the subnet mask of the CYT-166GC，default setting is 255.255.255.0 Gateway Set the gateway of the CYT-166GC，default setting is 192.168.168.254 Set the DNS of the CYT-166GC，default setting is 168.95.1.1...
-
Page 14: Advanced Setup
The default setting of close connection time is 100 seconds and the range is from 0 ~ 32768 Close Connection When The value must set to be 0 if you want to keep CYT-166GC connect Remote Idle with monitoring side or the connection will be off automatically when remote idle. -
Page 15: Tcp Client
Remote Host IP Address is 0.0.0.0 There are 2 modes to set TCP connection to server： 1.Start Up：This mode means when CYT-166GC enable, it will build the TCP connection with SERVER immediately. It will automatically build the TCP connection after disable TCP Connection and then re-connect again. -
Page 16: Udp
(3)UDP Function instruction Function Description Set the remote connection port number ，the range is 0 ~ Remote Connection Port Number 65535，default setting is 2000 Set remote host IP address，default setting is 0.0.0.0 Remote Host IP Address Local Listen Port Set the local listen port，default setting is 2000 How many seconds to transmit a UDP heart beat to server can be selected. -
Page 17: 2、Serial Mode
2、Serial Mode Function instruction Function Description 1.Set serial port baud rate, the parameters can be selected：1200、2400、 4800、9600、19200、38400、57600、115200、230400 Baud Rate 2.Default setting is 19200 Data Bits Set the data bits， 5,6,7,8 parameters can be selected, default setting is 8 Set the parity check，4 parameters can be selected： 1.odd 2.Even Parity Check... -
Page 18: Management
Display and set the device management IP address , default setting is Address 192.168.200.200 Device Hostname Fill in the device hostname, default setting is CHIYU Device Location Fill in the device location , default setting is blank User Name：Fill in the user name ... -
Page 19: 2、Status Monitor
Subnet mask: Display CYT-166GC subnet mask, default setting is 255.255.255.0 Default Gateway Display CYT-166GC default gateway, default setting is 192.168.168.254 Primary DNS: Display CYT-166GC Primary DNS address, default setting is 168.95.1.1 STATUS Display CYT-166GC internet status M2M GPRS Status M2M State:... -
Page 20: 3、I/O Status
CYT-166GC INPUT 4 status display INPUT 5 CYT-166GC INPUT 5 status display INPUT 6 CYT-166GC INPUT 6 status display CYT-166GC OUTPUT 1 status display OUTPUT 1 Click SHORT-1 or OPEN-1 manual control OUTPUT 1 CYT-166GC OUTPUT 2 status display OUTPUT 2 ... -
Page 21: 4、Backup & Restore Configuration
4、Backup & Restore Configuration Function instruction Function Description After execution, can save the present system settings as a backup file, and save it in Backup hardware, the sub-name of the saved file is .cfg Restore Browse and select saved file( .cfg ), execute Restore to restore system settings - 19 -... -
Page 22: 5、Firmware Upgrade
5、Firmware Upgrade Function instruction Function Description Browse and select firmware, execute Upgrade to upgrade firmware Has to assure the possibility of power supply during the process of Please select a file to upgrade upgrading, or severe damage will be caused. What if upgrade different firmware to different products, and it will also cause severe damage. -
Page 23: 6、Ping
6、PING Function instruction Function Description Source IP Address Display CYT-166GC IP address Destination IP Address Input IP address of Remote Host Packet Number Set up the number of PING package, ranged 1 ~4 , the default 4 Ping Size Set up the size of PING package, the utmost setting 1460 bytes. -
Page 24: Appendix - Cyt-166Sc Dio Command Protocol
Appendix - CYT-166SC DIO Command Protocol This DIO command protocol is described here to let customer’s remote management software to access Digital I/O state through Ethernet network by a specific TCP/UDP port. Command Packet Format: (Host CYT-166GC) Length(Bytes) Start Flag... - Page 25 Data1 Data[0] Data[1] Data[2] Data[3] Data[30] Data[31] IN-1 IN-2 IN-3 reserved reserved reserved IN-1: state of IN1, 0 for SHORT, 1 for OPEN IN-2: state of IN2, 0 for SHORT, 1 for OPEN IN-3: state of IN3, 0 for SHORT, 1 for OPEN ︱...
