CYT-133SC
User Manual
Document Version 1.0
Web Version 1.2 2011-03-07
Firmware Version 1.02.00,Mar 8 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CYT-133SC and is the answer not in the manual?

Questions and answers

Related Manuals for CHIYU CYT-133SC

Summary of Contents for CHIYU CYT-133SC

  • Page 1 CYT-133SC User Manual Document Version 1.0 Web Version 1.2 2011-03-07 Firmware Version 1.02.00,Mar 8 2011...

  • Page 2: Table Of Contents

    4、Backup & Restore Configuration ................32 5、Firmware Upgrade....................33 6、PING ........................34 Appendix A- CYT-133SC DIO Command Protocol ..........Appendix A-1 Appendix B- Remote reset command..............Appendix B-1 Appendix C- CGI(URL) command for I/O control ........... Appendix C-1 Copyright @ 2011. All Rights Reserved.

  • Page 3: Ⅰ、Hardware Introduction

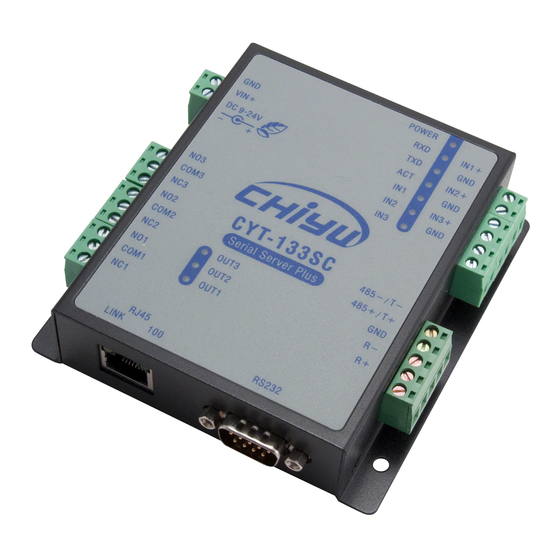

    －CYT-133SC－ Ⅰ、Hardware Introduction  Appearance  Specification Item Specification 16 Bits, 100MHZ Memory 256KB Flash & 2MB SDRAM Watchdog System never halt Ethernet 10/100 Base-T/Tx/, Automatic MSI/MDI-x port Communication Port RS232, RS 422, RS 485 Connectors DB9(MALE)/RJ-45 RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD,RI,GND...
  • Page 4  End point - 2 -...

  • Page 5: Ⅱ、Product Overview

    Real time operation system and complete TCP/IP protocol enable CHIYU’s CYT-133SC powerful converter not only providing complete system with highly efficiency but also able to link with network. Easy to install and wire. The Web interface of CYT-133SC is simple, easily to operate, and without operation system limitation.

  • Page 6: Ⅲ、Web Login

    Web browser, and then conduct setting.  Preparation Before conducting CYT-133SC setting, please assure the following:  PC has connected to CYT-133SC, and PC and CYT-133SC are situated in the same WAN with power supplied.  If the default IP address (192.168.168.125...
  • Page 7 3、While the IP Search window shows up, it will display all CYT-133SC in LAN, and show Device name, Location, Model Name, Address, Subnet Mark, Gateway, Address. Select particular CYT-133SC, then its related information will appear below the window, as shown: 4、The showed information of CYT-133SC can be revised directly in the window, the part...
  • Page 8 Web of CYT-133SC, has two methods: (1)Open IP Search, select and double click particular CTY-133SC, then to enter its webpage. (2)While the internet explorer opened, input CYT-133SC IP address to enter its webpage Remark： WINDOWS XP：...
  • Page 9 , open and search for , click Alter Interface Card on the upper-left side. 《Step 2》 Click LAN link, select content, then the LAN settings will be shown, click Internet Protocol(TCP/IPv4), click and input same setting as CYT-133SC, as below figure. - 7 -...
  • Page 10  How to login to CYT-133SC Web via web browser 1、Start Web browser ( ig: WIN 7 IE ), input CYT-133SC’s IP Address, for example: use the default CYT-133SC IP Address: http://192.168.168.125 2、If connection failed, should check:  If CYT-133SC installed and its power supplied properly ...
  • Page 11 3、If the connection with CYT-133SC is successful, then it will display a message window for User name and Password, the default for user name and Password is: admin/admin, as shown below: 4、While the user name and password entered, a Web setting interface of CTY-133SC will be showed, enter it will then display a “...

  • Page 12: Ⅳ、Web Function Instruction

    Function instruction of STATIC IP Function Description IP Address Set the IP address of the CYT-133SC，default setting is 192.168.168.125 Subnet mask Set the subnet mask of the CYT-133SC，default setting is 255.255.255.0 Set the gateway of the CYT-133SC，default setting is 192.168.168.254...
  • Page 13  Function instruction of DHCP CLIENT Function Description Host Name (optional) Fill in the host name , default setting is CHIYU (optional) Serial Port Mode ： 1.Set serial port baud rate, the parameters can be selected 1200、2400、4800、9600、19200、38400、57600、115200、230400 and Others Baud Rate 2.After selecting Others , fill custom baud rate into the user...
  • Page 14 Fill in the service name (optional), up to 47 characters  Default setting is 0 second, the range is from 0 ~ 4294967295  Keep the connection of CYT-133SC and ISP always must set the no Close Connection when Idle Time Over into 0 or the connection with PPPoE will be disabled when Idle time over.

  • Page 15: Advanced Setup

     The default setting of close connection time is 100 seconds and the range is from 0 ~ 32768 Close Connection When  The value must set to be 0 if you want to keep CYT-133SC connect Remote Idle with monitoring side or the connection will be off automatically when remote idle.

  • Page 16: Tcp Client

    Remote Host IP Address is 0.0.0.0  There are 2 modes to set TCP connection to server： 1.Start Up：This mode means when CYT-133SC enable, it will build the TCP connection with SERVER immediately. It will automatically build the TCP connection after disable and then re-connect again.

  • Page 17: Udp

    (3)UDP  Function instruction Function Description Set the remote connection port number ，the range is 0 ~ Remote Connection Port Number 65535，default setting is 50000 Set remote host IP address or domain name，default setting is Remote Host IP Address 0.0.0.0 Set the local listen port，default setting is 50000 Local Listen Port How many seconds to transmit a UDP heart beat to server...

  • Page 18: Extend I/O

    (4)Extend I/O When set CYT-133SC into Extend I/O mode, it won’t have the data conversion function. It can expend I/O by connect with BF-51. Structure： RS485 IN 4 to 6 BF51 TID 1 CTY-133SC OUT 4 to 6 Master IN 7 to 9...

  • Page 19: 2、Serial Port Setup

    Length (bytes) setting is 1000  Set the transmission data end by identified delimiter and if your transmission data includes the identified delimiter, CYT-133SC will send out packet at Delimiter 1 once.  Default setting is disabled. The range is from 0x00 ~ 0xFF ...

  • Page 20: 3、I/O Operation Mode

    3、I/O Operation Mode (1)Auto This page provides smart I/O control. No need to have any programming background, only set the connection of each I/O via this page, and can make the linked connection of each I/O. For instance, there are 2 devices to connect with IN1 /IN2 and OUTPUT1. The trigger mode is IN1/IN2 trigger OUTPUT1 at the same time.
  • Page 21  Function instruction Function Description  Triggered Rule Set trigger OUTPUT 1 condition, use IN1~3 ,AND and OR these conditions to set. For instance: When IN1、IN2 and IN3 enable at the same time, meanwhile OUTPUT1 will OUTPUT 1 be triggered. The setting condition must be IN1 AND IN2 AND IN3. ...

  • Page 22: Tcp Server

     The default setting of close connection time is 10 seconds and the range is from 0 ~ 32768 Close Connection When  The value must set to be 0 if you want to keep CYT-133SC connect Remote Idle with monitoring side or the connection will be off automatically when remote idle.

  • Page 23: Tcp Client

    (3)TCP Client  Function instruction Function Description  Set local I/O port, the range is from0 ~ 65535. Remote Connection Port Number  Default setting is 50001 Remote Host IP Address Default setting of remote host IP address is 0.0.0.0 ...

  • Page 24: Udp Mode

    (4) UDP Mode  Function instruction Function Description  Set local I/O port, the range is from0 ~ 65535. Remote Connection Port Number  Default setting is 50001 Remote Host IP Address Default setting of remote host IP address is 0.0.0.0 Local Listen Port Default setting of local I/O port is 50001 ...

  • Page 25: Peer To Peer

    (5) Peer to Peer  Function instruction Function Description Remote Peer IP Default setting of remote peer IP address is 0.0.0.0. Structure 1： OUT1 CYT-133SC CYT-133SC OUT2 LAN/WAN OUT3 Structure 2： Extend I/O Mode OUT1 CYT-133SC LAN/WAN CYT-133SC OUT2 OUT3...

  • Page 26: 4、I/O State Setup

    4、I/O State Setup This page is for I/O operation setting when selecting I/O Operation Mode Setup (Auto). According to the INOUT signal changes can control OUTPUT external driver device. You can insert device name in Device Description for identification. You can also set up OUTPUT Latch Time for output time length.

  • Page 27: 5、Alert Event E-Mail

    5、Alert Event E-Mail  Function instruction Function Description E-mail Alert Enable or Disable event alert mail setting, default setting is Disable. Domain name setting up to 59 characters, default setting is blank. Domain Name (optional) (Non-required) SMTP server setting, take msa.hinet.net for instance, the setting is up SMTP Mail Server to 47 characters.

  • Page 28: 6、Ddns Setup

    6、DDNS Setup (1)TZ0  Function instruction Function Description Fill in the E-mail address for DDNS , up to 47 characters E-mail Address Fill in the password key for DDNS ， up to 31 characters Password key Fill in the device DNS name ，...

  • Page 29: Dyndns

    (2) Dyndns  Function instruction Function Description for DDNS ，up to 31 characters Fill in the username Username for DDNS ，up to 31 characters Fill in the password Password Fill in the device DNS name，for example：hostname.dyndns.org Device DNS Name Display the registry IP address，when DDNS is enabled, It will show the Registry IP Address registry IP address Display DNS Serve status，when DDNS server does not enable ,it will show...

  • Page 30: Management

    Display and set the device management IP address , default setting is Address 192.168.200.200 Device Hostname Fill in the device hostname, default setting is CHIYU Device Location Fill in the device location , default setting is blank  User Name：Fill in the user name ...

  • Page 31: 2、System Status Monitor

    Display CYT-133SC Subnet mask, default setting is 255.255.255.0 Default Gateway Display CYT-133SC Default Gateway, default setting is 192.168.168.254 Primary DNS: Display CYT-133SC Primary DNS address, default setting is 168.95.1.1 STATUS Display CYT-133SC internet status Force Packet Time/Length: Display Force Packet Time/Length, default setting is 20ms/1000bytes...

  • Page 32: 3、I/O Status

    3、I/O Status (1)Non Extend I/O Mode  Function instruction Function Description INPUT 1 CYT-133SC INPUT 1 status display INPUT 2 CYT-133SC INPUT 2 status display INPUT 3 CYT-133SC INPUT 3 status display  CYT-133SCOUTPUT 1 status display OUTPUT 1  Click SHORT-1 or OPEN-1 manual control OUTPUT 1 ...

  • Page 33: Extend I/O Mode

    CYT-133SC INPUT 1 status display INPUT 2 CYT-133SC INPUT 2 status display INPUT 3 CYT-133SC INPUT 3 status display  CYT-133SC OUTPUT 1 status display OUTPUT 1  Click SHORT-1 or OPEN-1 manual control OUTPUT 1  CYT-133SCOUTPUT 2 status display OUTPUT 2 ...

  • Page 34: 4、Backup & Restore Configuration

    4、Backup & Restore Configuration  Function instruction Function Description After execution, can save the present system settings as a backup file, and save it in Backup hardware, the sub-name of the saved file is .cfg Browse and select saved file( .cfg ), execute Restore to restore system settings Restore - 32 -...

  • Page 35: 5、Firmware Upgrade

    5、Firmware Upgrade  Function instruction Function Description  Browse and select firmware, execute Upgrade to upgrade firmware  Has to assure the possibility of power supply during the process of Please select a file to upgrading, or severe damage will be caused. What if upgrade different upgrade firmware to different products, and it will also cause severe damage.

  • Page 36: 6、Ping

    6、PING  Function instruction Function Description Display CYT-133SC IP address Source IP Address Input IP address of Remote Host Destination IP Address Set up the number of PING package, ranged 1 ~4 , the default 4 Packet Number Set up the size of PING package, the utmost setting 1460 bytes.

  • Page 37: Appendix A- Cyt-133Sc Dio Command Protocol

    Length(Bytes) Start Flag Command Status Data1 Data2 End Flag CRC The CYT-133SC returns by Return packet. You can get command status to know the result after sending command packet and from Data1 and Data2 to know current I/O state. Note:...
  • Page 38 The format of each command code is as following: 1. Read Digital I/O state Length(Bytes) 0xF0F0 0x0001 0xF0F0 CRC (don’t care) (don’t care) Return Successful Packet Length(Bytes) 0xF0F0 0x0002 Data1 Data2 0xF0F0 CRC Data1 Data[0] Data[1] Data[28] Data[29] Data[30] Data[31] IN-1 IN-2 IN-29...
  • Page 39 (don’t care) (don’t care) 3. E-mail Alarm Trigger Length(Bytes) 0xF0F0 0x0005 Alarm Message Description 0xF0F0 CRC Alarm Message Description: string of alarm message by customer attach and CYT-133SC send this content by e-mail Return Successful Packet Length(Bytes) 0xF0F0 0x0006 0xF0F0 CRC (don’t care)
  • Page 40 OUT-1: state of OUT1, 0 for SHORT, 1 for OPEN OUT-2: state of OUT2, 0 for SHORT, 1 for OPEN OUT-3: state of OUT3, 0 for SHORT, 1 for OPEN 5. Keep Alive (Only useful when CYT-133SC’s I/O mode is acting as TCP Client) : (CYT-133SC  Host) Length(Bytes) 0xF0F0 0x0007 RESV 0xF0F0 CRC 0x0007 –...

  • Page 41: Appendix B- Remote Reset Command

    CGI (URL) command http://192.168.1.125/reboot.htm@admin:admin b. CHIYU proprietary command, UDP connection/port 5050 Byte SNG (16 bytes): signature data, should be “CHIYU Reboot CMD” case sensitive. CMD (4 bytes): 0x00 00 00 20 Return packet: Byte SNG (16 bytes): signature data, should be “CHIYU Reboot CMD” case sensitive.

  • Page 42: Appendix C- Cgi(Url) Command For I/O Control

    Appendix C- CGI(URL) command for I/O control  Get I/O Status : http://192.168.3.125/iostatus.htm@admin:admin Username Password  Energize Output Relay command: For example : Energize Relay No.1 all the time http://192.168.3.125/set_relay.php&no=1&time=0@admin:admin Energize Relay No.2 and latch 10 seconds http://192.168.3.125/set_relay.php&no=2&time=10@admin:admin  Clear Output Relay command: For example : Clear Relay No.1 http://192.168.3.125/clear_relay.php&no=1@admin:admin...
