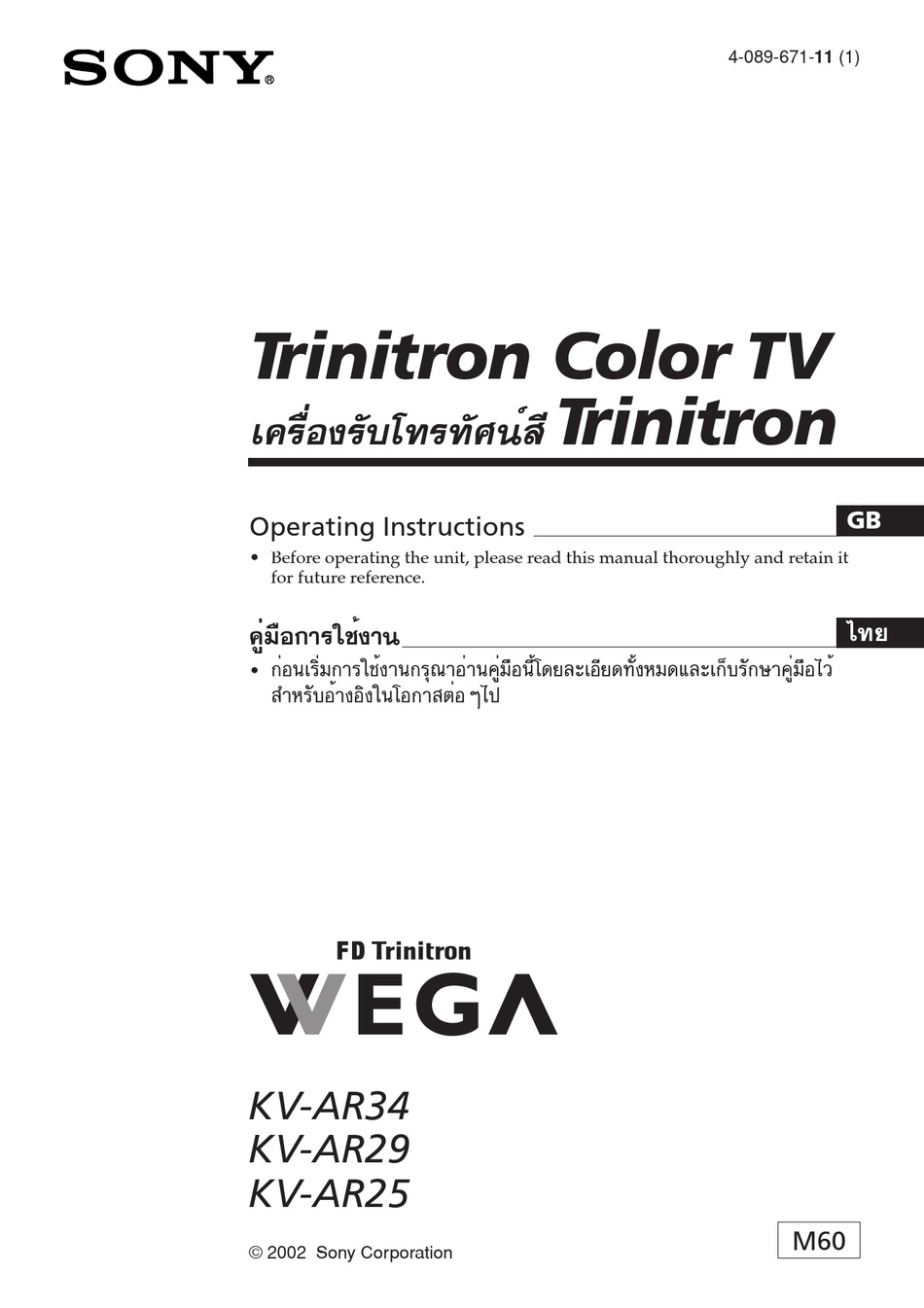

Trinitron Color TV
‡§√◊ Ë Õ ß√— ∫ ‚∑√∑— » πÏ   '
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain it
for future reference.
§Ÿ Ë ¡ ◊ Õ °"√„™È ß "π
°Ë Õ π‡√' Ë ¡ °"√„™È ß "π°√ÿ ≥ "ÕË " π§Ÿ Ë ¡ ◊ Õ π' È ‚ ¥¬≈–‡Õ' ¬ ¥∑— È ß À¡¥·≈–‡°Á ∫ √— ° ..."§Ÿ Ë ¡ ◊ Õ ‰«È
•
 "À√— ∫ ÕÈ " ßÕ' ß „π‚Õ°" µË Õ Ê‰ª
KV-AR34
KV-AR29
KV-AR25
© 2002 Sony Corporation
4-089-671-11 (1)
Trinitron
GB
‰∑¬
M60

Advertisement

Table of Contents
loading

Related Manuals for Sony Wega KV-AR25

Summary of Contents for Sony Wega KV-AR25

  • Page 1 °Ë Õ π‡√‘ Ë ¡ °“√„™È ß “π°√ÿ ≥ “ÕË “ π§Ÿ Ë ¡ ◊ Õ π’ È ‚ ¥¬≈–‡Õ’ ¬ ¥∑— È ß À¡¥·≈–‡°Á ∫ √— ° …“§Ÿ Ë ¡ ◊ Õ ‰«È •  ”À√— ∫ ÕÈ “ ßÕ‘ ß „π‚Õ°“ µË Õ Ê‰ª KV-AR34 KV-AR29 KV-AR25 © 2002 Sony Corporation...
  • Page 2 WARNING • Dangerously high voltages are present inside the TV. • TV operating voltage: 220-240 V AC. • Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground.
  • Page 3 Do not plug in too many appliances to the same Do not place any objects on the TV. power socket. Do not damage the power cord. Pull the power cord out by the plug. Do not pull the power cord itself. Even if your TV is turned off, it is still connected to the AC power source Install the TV on a stable TV stand and floor which (mains) as long as the power cord is plugged in.
  • Page 4 x Securing the TV To prevent the TV from falling, use the supplied screws, clamps and band to secure the TV. 20 mm 3.8 mm screws clamps band Screw the band to the TV stand and to the provided hole at the rear of your TV. (1) Put a cord or chain through the clamps.

  • Page 5: Table Of Contents

    Table of Contents Installation Menu Adjustment Getting Started ........6 Introducing the menu system ..15 Setting up your TV Changing the “PICTURE” setting ... 18 (“INITIAL SETUP”) ......7 Changing the “SOUND” setting ..20 Changing the “SETUP” setting ..22 Changing the Channel Preset Overview of Controls (“CH PRESET”) setting .....

  • Page 6: Installation

    Installation x Getting Started Step 1 Insert the batteries (supplied) into the remote. Note • Do not use old or different types of batteries together. Step 2 Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV. •...

  • Page 7: Setting Up Your Tv ("Initial Setup")

    x Setting up your TV (“INITIAL SETUP”) MENU SOUND When you turn on your TV for the first time, MENU PIP PROGR the “INITIAL SETUP” menu will appear. This menu allows you to change the menu V/v/ENTER ENTER language, adjust the picture position and preset the TV channels automatically.

  • Page 8: Overview Of Controls

    Overview of Controls TV front and rear panels TV rear panel ENTER SELECT L(MONO) MENU PROGR AUTO PROGR TV front panel ENTER SELECT L(MONO) AUTO MENU PROGR PROGR Button/Terminal Function Page Turn off or turn on the TV. Standby indicator. –...

  • Page 9: Remote Control

    Remote control Button Function Page 1 ?/1 Turn off temporarily or – turn on the TV. Display the TV input. – 4 0 – 9, - Input numbers. – 5 JUMP Jump to previous program – number. 9 SURROUND Select surround mode. 0 WIDE MODE Select wide-mode (16:9).
  • Page 10 continued Button Function Page Menu operations MENU Display or cancel the menu. ENTER Confirm selected items. V, v, B, b Select and adjust items. Teletext operations (green label) 0 – 9 JUMP PROGR +/– SOUND MENU PIP PROGR Not function for your TV. –...

  • Page 11: Advanced Operations

    Advanced Operations Selecting the picture and sound modes You can select picture and sound modes and adjust the setting to your preference in the “PERSONAL” option. Selecting the picture mode Press PIC MODE to select the desired picture mode. Select “DYNAMIC”...

  • Page 12: Viewing The Picture In Wide Mode

    Viewing the picture in wide mode When receiving a wide-mode (16:9) signal, the picture will appear “squeezed” (compressed) on your screen. Use the WIDE MODE button to view the picture with the optimal effect. ENTER Select DRC-MF PIP PROGR SOUND WIDE SURROUND WIDE...

  • Page 13: Setting The Timers

    x Setting the timers You can set your TV to turn on and off automatically by using the WAKE UP and SLEEP timers respectively. Setting the Wake Up timer Press until the desired period of time appears on the screen. WAKE UP TIMER:10M (After 10 minutes) JUMP...

  • Page 14: Enjoying Stereo Or Bilingual Programs

    x Enjoying stereo or bilingual programs You can enjoy stereo sound or bilingual programs of NICAM and A2 stereo systems by using the A/B button. When receiving a NICAM program Broadcasting On-screen display (Selected sound) NICAM MONO NICAM stereo (Regular sound) (Stereo sound) JUMP NICAM...

  • Page 15: Menu Adjustment

    Menu Adjustment x Introducing the menu system The MENU button lets you open a menu and change the settings of your TV. The following is an overview of the menu system. Return icon PICTURE icon Name of the current menu S E T UP SOUND icon L ANGUAGE :...
  • Page 16 “TV SYS” “B/G” t “I” t “D/K” t “M” * The BBE is manufactured by Sony Corporation under license from BBE Sound, Inc. It is covered by U.S. Patent No. 4,638,258 and No. 4,482,866. The word “BBE” and the BBE symbol are the trademarks of BBE Sound, Inc.
  • Page 17 How to use the menu Press MENU to display MENU PIP PROGR MENU P I C T URE the menu. P I C T URE MO DE : DYNAM I WI DE MODE : OF F ENTER I N T E L I GE N T P I C : OF F I C : OF F...

  • Page 18: Changing The "Picture" Setting

    x Changing the “PICTURE” setting The “PICTURE” menu allows you to adjust the picture settings. Press MENU. P I C T URE Make sure the “PICTURE” icon ( ) is P I C T URE MODE : DYNAM I selected, then press ENTER. WI DE MODE : OF F I N T E L L P I C : OF F...
  • Page 19 Adjusting the “ADJUST” items under “PICTURE MODE” Press V or v to select the desired item (e.g.,“COLOR”), then press ENTER. COLOR Adjust the value according to the following table, then press ENTER. Press v or B to Press V or b to “PICTURE”...

  • Page 20: Changing The "Sound" Setting

    x Changing the “SOUND” setting The “SOUND” menu allows you to adjust the sound settings. Press MENU. Press V or v to select the “SOUND” SOUND icon ( ), then press ENTER. SOUND MODE DYNAM I C SURROUND : OF F I N T E L L I GEN T VO L : OF F Press V or v to select the desired item SOUND...
  • Page 21 Adjusting the “ADJUST” items under “SOUND MODE” Press V or v to select the desired item (e.g., “BALANCE”), then press ENTER. BALANCE Adjust the value according to the following table, then press ENTER . Press v or B to Press V or b to “BASS”...

  • Page 22: Changing The "Setup" Setting

    Changing the “SETUP” setting The “SETUP” menu allows you to change the menu language, adjust the picture position, set up your program numbers and select the color system. Press MENU. Press V or v to select the “SETUP” S E T UP icon ( ), then press ENTER.
  • Page 23 Adjusting each program number settings (“PROGRAM SETUP”) Select “PROGRAM SETUP” from the “SETUP” menu. Select “PR” and press ENTER. Press V or v PROGRAM S E T to select the desired program number you PR : S K I P : OF F want to adjust, then press ENTER.

  • Page 24: Changing The Channel Preset ("Ch Preset") Setting

    x Changing the Channel Preset (“CH PRESET”) setting The “CH PRESET” menu allows you to preset channels automatically, manually preset channels and select the TV system. Press MENU. Press V or v to select the “CH PRESET” icon CH PRE S E T ), then press ENTER.
  • Page 25 Presetting channels manually After selecting “MANUAL PROGRAM”, MANUA L PROGRAM select the program number to which you PR : want to preset a channel. T V S Y S : B / G VH F L OW (1) Make sure “PR” is selected, then press F I NE : AU TO ENTER.
  • Page 26 continued If you are not satisfied with the picture and sound quality, you may be able to MANUA L PROGRAM improve them by using the “FINE” tuning PR : 1 0 AU TO T V S Y S : I MANUA L feature.

  • Page 27: Additional Information

    Additional Information x Connecting optional components Connecting to the video input terminal ( t ) S Video cable TV front panel (not supplied) Audio/Video cable (not supplied) Camcorder L(MONO) TV rear panel Video game equipment Antenna cable (not supplied) Audio/Video cable (not supplied) S Video cable (not supplied)
  • Page 28 continued Connecting a DVD player to the component video input terminal ( 1 Using an audio cable, connect R and L under (component video input) on your TV to the LINE OUT, AUDIO R and L output connectors on your DVD player. 2 Using a component video cable, connect Y, C , and C under...

  • Page 29: Troubleshooting

    TV, VCR and at the wall. damaged. • The antenna setup is • Check the antenna setup. – inappropriate. Contact a Sony dealer for advice. • Channel presetting is • Display the “CH PRESET” menu and Noisy sound inappropriate or select “MANUAL PROGRAM” to preset incomplete.
  • Page 30 Dotted lines or interference from cars, equipment near the TV. stripes neon signs, hair dryers, – • Check the antenna setup. Contact a Sony power generators, etc. dealer for advice. – • Broadcast signals are • Use a highly directional antenna.
  • Page 31 TV, VCR and on the wall. Stereo broadcast sound switches • The antenna setup is • Check the antenna setup. Contact a Sony on and off or – inappropriate. dealer for advice. is distorted.

  • Page 32: Specifications

    765 × 578 × 502 650 × 517 × 496 Dimensions (w/h/d, mm) Mass (kg) Design and specifications are subject to change without notice. Sony Thai Co., Ltd. 2126 Kromadit Building, New Petchburi Road, Bangkapi, Huaykwang, Bangkok 10320 Additional Information Sony Corporation...

This manual is also suitable for:
