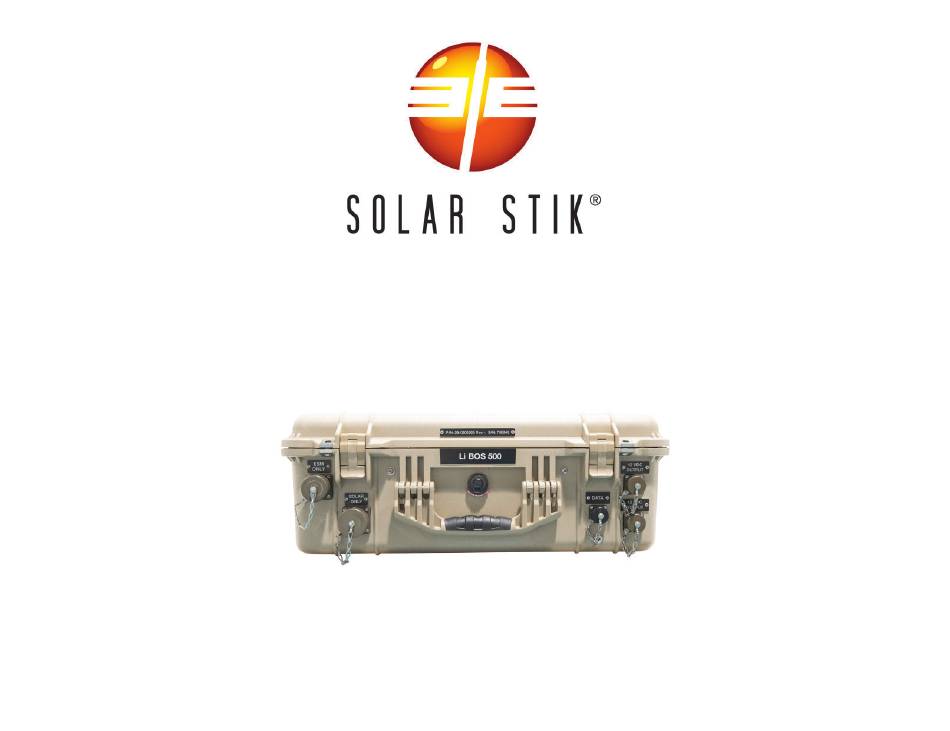

- Page 1 SETUP, OPERATION, AND MAINTENANCE GUIDE FOR THE 24VDC LI BOS 500-120 P/N: 20-0205205 DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited. May 2023 SS20230605...
-
Page 2: Specifications
Specifications General Connections • (1) Universal AC (Schurter 6100-3300-32) (100- Nominal Operating Voltage 24 VDC Inputs 230 VAC) Battery Chemistry Lithium Ion • (1) Solar (Cannon CB2-22-2SC) Storage Capacity 28 Ah Outputs • (2) 12 VDC (Amphenol MS3470W14-4S) Energy Storage 672 Wh Cycle Life* 3000 cycles (80% depth of discharge) - Page 3 Connectors and Specifications Data* 24 VDC ESM 12 VDC ONLY OUTPUT SOLAR INPUT *Custom Cable Required Connected to a Solar Array Solar Cable...
- Page 4 10 A ~120 W DC bus voltage. DATA: CAN data and comms from internal battery. Front Solar Stik use only. Custom cable required. Power Input Front 100–230 VAC, 50-60 Hz Left 33–100 VDC 5 A max...
- Page 5 E. Internal battery status display reports voltage, current (A), state of charge, status (fault or OK). F. Battery status DISPLAY REFRESH toggle switch G. Breaker switches and circuit-activity LEDs. H. Breaker switch for 12 VDC output. I. The TECH port for use by Solar Stik use only. Contact Solar Stik for further information.
- Page 6 BOS 500-120-5205 Electrical Circuits 24VDC Li-ion (NMC) Battery 48 Ah Power 672 Wh Supply 320 W *29.2 VDC Solar Charge Controller DC bus 480 W *29.2 V DC/DC Converter 12 VDC 10 A Max 120–230 VAC INPUT SOLAR 12 VDC ONLY INPUT OUTPUT (x2)
- Page 7 Battery Status Display Home Screen Battery voltage Status OK/FAULT Indicator. 5-segment Battery net current + charging/- discharging A. The DISPLAY REFRESH momentary toggle switch can be pressed and held to update the display during normal operation. During normal operation, the display is updated automatically at intervals of three (3) minutes. The SOC is reported visually by a ve- segment “fuel gauge”.
- Page 8 Additional Battery Details Fault Toggle the DISPLAY REFRESH switch twice to view additional battery metrics. CHC: Y/N: Charge FET on Yes / No, meaning yes the battery can be charged. No meaning the battery cannot be charged. DSG: Y/N: Discharge FET on Yes / No, meaning yes the battery is discharged or No meaning the battery cannot be discharged. Cyc: Number of complete charge / discharge cycles battery has experienced.
- Page 9 • The BOS should be shaded from direct sun exposure and Additional compatible batteries may be connected to the ESM sheltered from the elements as much as possible during ONLY port. Contact Solar Stik Technical Support for information operation. regarding battery compatibility. Connecting incompatible batteries •...
- Page 10 MAINTENANCE CHARGING INSTRUCTIONS In-storage BOS Internal Battery Status Information The Battery Status Monitor will display the last status acquired before the POWER switch was turned OFF. However, battery voltage will decrease during storage due to self-discharge. Toggle ON the POWER switch to update in-storage battery status. Never store BOS in a discharged state! Charge BOS fully before placing in storage.
