Owner's Manual
Assembly,
Operation, and
Service Manual for

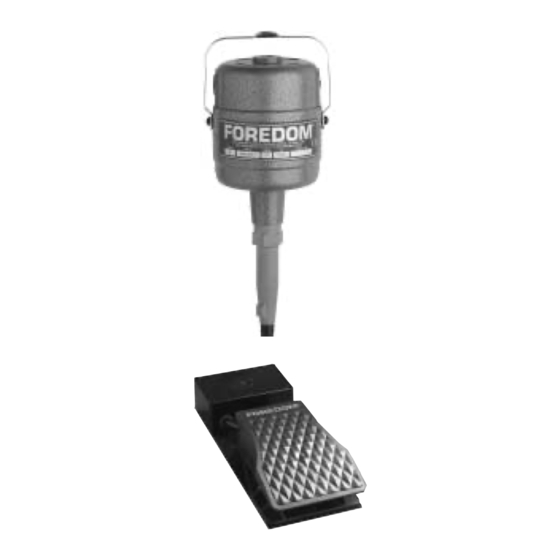

Series K
Ball Bearing
Power Tool and
Handpieces
For Your Own Safety:
Read Owner's Manual before operating your Foredom
•
power tool.
Always wear eye protection while using power tools.
•
Only use accessories with the same or higher speed
•
ratings as your power tool (18,000 RPM).
FOREDOM
power tools
®
Contents
Safety Instructions
The Series K
Assembly Instructions
Assembly & Adjustment of Shaft, Sheath & Handpiece
Connecting Foot Speed Control
Attaching Accessories
General Accessory Recommendations
Operation
Maintenance
Routine Cleaning & Lubrication
Replacement of Motor Brushes
Replacement of Worn Shaft and Sheath
Handpiece Lubrication
Other Service and Repair
Recommended Spare Parts & Supplies
Limited Warranty
Owner's Registration Card
For More Information
Safety Instructions
Before using your Foredom ® power tool, please read safety instructions.
They are for your protection and should always be followed to reduce the risk of
personal injury or damage to the tool.
• Always wear proper eye and face protection. Safety glasses or face shields
should be worn whenever you operate a Foredom or any power tool to prevent
serious eye or face injuries.
• Do not wear loose fitting clothing or jewelry. Loose clothing or jewelry can
become entangled in the rotating flexible shaft. Do not wear items such as neck
ties, necklaces, or bracelets when operating power tools. Be sure to tie back or
secure long hair.
• Secure power tool to motor hanger or work surface. Flexible shaft power
tools can vibrate during operation. The tool should be properly secured in order
to prevent it from vibrating off of the motor hanger or work bench.
• Never operate any accessory at speeds above it's maximum rated speed.
When properly used, all of Foredom's accessories can be operated at the speed
ratings listed in the Foredom Accessory Catalog or on the accessory kits and
packages. Always find out the manufacturer's speed rating before using
accessories other than Foredom accessories.
2
Page
2
3
4
4
5
5
7
9
10
10
10
10
11
11
12
12
12
Advertisement
Related Manuals for FOREDOM K Series
Summary of Contents for FOREDOM K Series
- Page 1 Always wear eye protection while using power tools. • • Always wear proper eye and face protection. Safety glasses or face shields should be worn whenever you operate a Foredom or any power tool to prevent Only use accessories with the same or higher speed •...
- Page 2 Proper assembly and adjustment of the flexible shaft and sheath are critical for • Do not stall the motor by jamming or using excessive pressure on the the correct operation of your Foredom power tool. accessory. This can result in damage to the motor or flexible shaft.
- Page 3 6. Finally, attach the handpiece by pushing it on the grooved QD (quick disconnect) Directions for attaching accessories to handpieces vary according to the type of handpiece being used. Locate the model number of your Foredom handpiece fitting on the sheath. Be sure that the keyed tip of the flexible shaft is properly from the illustrations on page 5.
- Page 4 Choose the right accessory for your special needs and for polishing. by referring to the Foredom Accessory Catalog No. 350. Accessories may be purchased through your local dealer or by contacting: The Foredom Electric 5. Brushes: Company, 16 Stony Hill Road, Bethel, CT 06801, (203)792-8622.
-
Page 5: Operation
Note: Ball Bearing Motors do Not Require Lubrication. Your Foredom motor may be operated in a vertical or horizontal position, but it should not be enclosed or confined so as to restrict air circulation. If the motor is 1. -
Page 6: Owner's Registration Card
Estimates of repair cost will be made upon request. It is our policy not every 20 hours of operation apply 1 or 2 drops of Foredom oil into the hole in to proceed with a repair without your approval if the cost (labor plus parts) is the duplex spring collar next to the sheath connector.
