FOREDOM
Operation & Maintenance Manual for

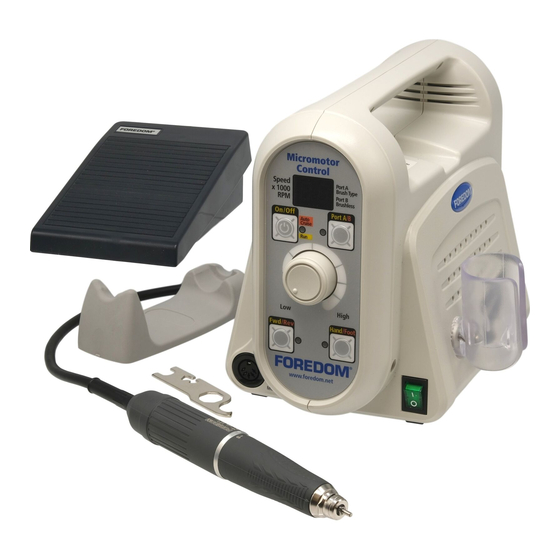

K. 1 050 Brushless Micromotor Kit
with additional Port for connecting a
Brush Type Handpiece
HP7-7060
Foot Control
For Your Safety:
Read this Manual before operating your
Foredom Micromotor Power Tool.
Always wear eye protection while operating
this Micromotor.
For More Information on Foredom machines, handpieces or ac ces so ries,
contact your local dealer. When no local dealer is available, write, call or fax:
Foredom Electric Company
16 Stony Hill Road, Bethel, CT 06801
(203)792-8622, Fax: 203-796-7861, Email: customerservice@blackstoneind.com
Visit our website: www.foredom.net for video
descriptions of this product.
F-1228 12/23

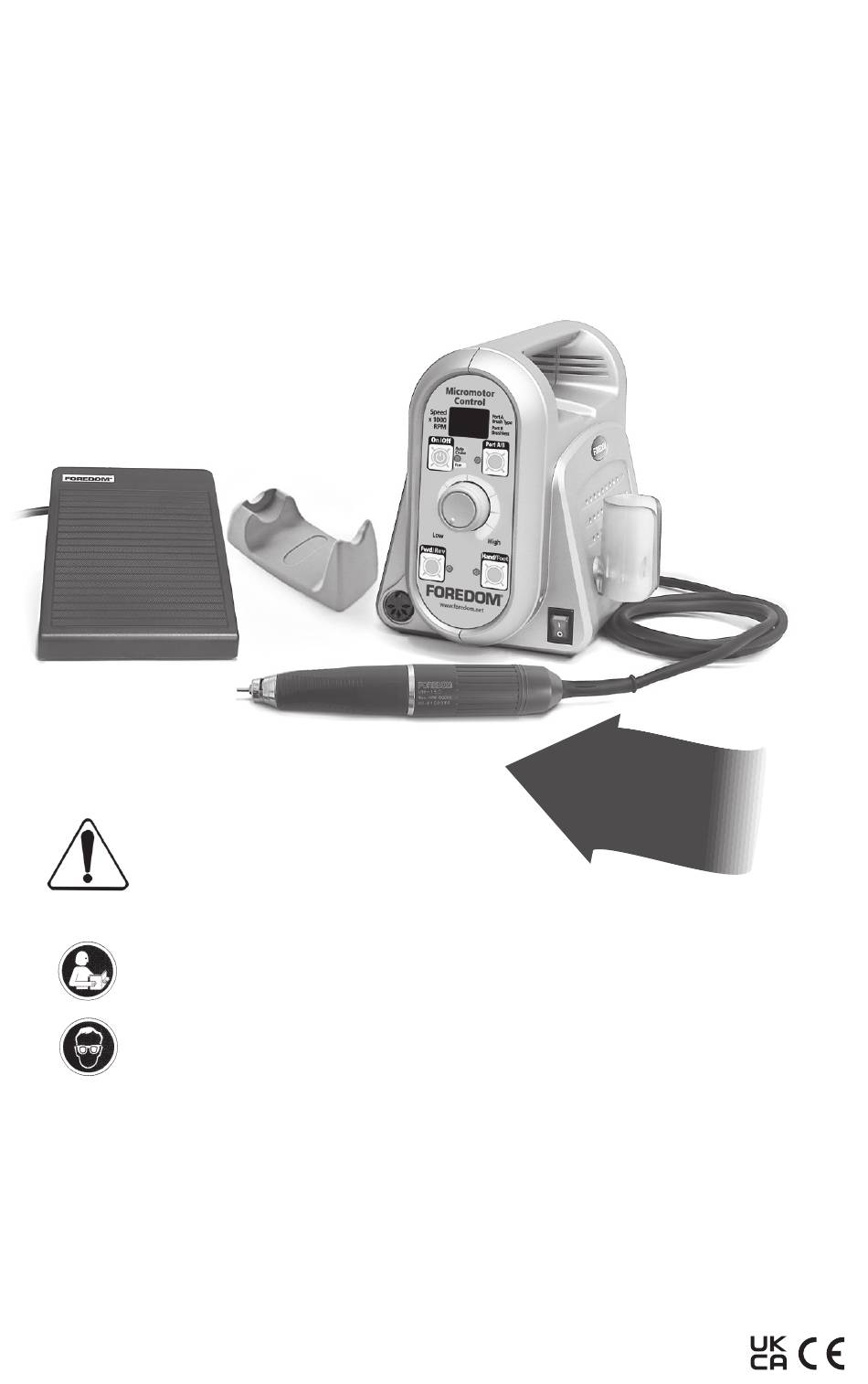

HP4-933
Cradle
H.MH-150 Brushless Handpiece
®
Do Not
Submerge the
Handpiece
in Liquids!
Printed in USA
HP4-817
Control
Advertisement
Table of Contents
Related Manuals for FOREDOM K.1050
Summary of Contents for FOREDOM K.1050
- Page 1 Foredom Micromotor Power Tool. Always wear eye protection while operating this Micromotor. For More Information on Foredom machines, handpieces or ac ces so ries, contact your local dealer. When no local dealer is available, write, call or fax: Foredom Electric Company 16 Stony Hill Road, Bethel, CT 06801 (203)792-8622, Fax: 203-796-7861, Email: customerservice@blackstoneind.com...
-
Page 2: Safety Instructions
This can result in damage to the motor. Foredom warrants its product to be free of defects in materi- • WEAR a dust protector, mask or respirator to prevent the al or work man ship for a period of two years after purchase. -
Page 3: Installation
Please retain your proof of purchase for warranty repairs. Authorized repair service is available at the Foredom factory in Bethel, CT. Send items for repair to the factory marked “Attention: Repair De part ment”. Enclose the item(s), a packing list, daytime phone number, return address, email address, and information regarding the problem or repairs required. - Page 4 Set-up 1. Fix the Handpiece Holder 23 to the right side of the Control Unit with screw and washer. (Fig.7). 2. An optional Brush Type Handpiece Motor Cord may be plugged into the Port A Outlet 13 located in the front of the Control Unit. (Fig.8). 3.
- Page 5 Foot Mode Operation continued In Foot Pedal Mode the micromotor will not exceed the preset dial speed. 3. Press the Foot Pedal 26 to run the motor from start to a maximum speed (set by the speed control knob). 4. To increase the maximum speed setting, release foot pedal and allow motor to stop.
- Page 6 “R” released position. Test to insure that new HP4-117C 3.00mm collet holds firmly in the “S” secure position and spindle rotates freely. HP7-5008 2.35mm (3/32") See video on 807xxxx HP7-5007 3.18mm (1/8") Changing Collets & and below Accessories at: HP7-5006 3.00mm www.foredom.net...
- Page 7 Be sure to insert the Bur shank all the way, until it touches the back of the Collet Chuck. Then • tighten the Collet Chuck. If the Bur is used while not inserted completely, it is very dangerous because vibration may cause it to come out, bend, or break. See videos of Product Features at: www.foredom.net...
- Page 8 Using an Optional Brush Type Motor Handpiece in Port A: Foredom currently has 3 brush type handpieces for use in Port A on Control Box (HP4-817). These brush type micromotor handpieces all have different speed ranges, as detailed below. However, since the hand-...
-
Page 9: Error Codes
Error codes Error Code Status Cause 1. One or more hall sensors defective “1E” Motor sensor error 2. The Brushless Motor Cord B is unplugged or defective. 3. The Motor Cord is broken. 1. The Collet Chuck is opened. “2E” Motor lock error 2. -
Page 10: Troubleshooting
Troubleshooting NOTE: When an error reading is displayed, turn off the power switch for a few seconds and then turn it on again. If “5E” is dis- played wait for about ten minutes. If the error reading re-appears, follow the Troubleshooting Chart below. Trouble Check Points Corrective Actions...
