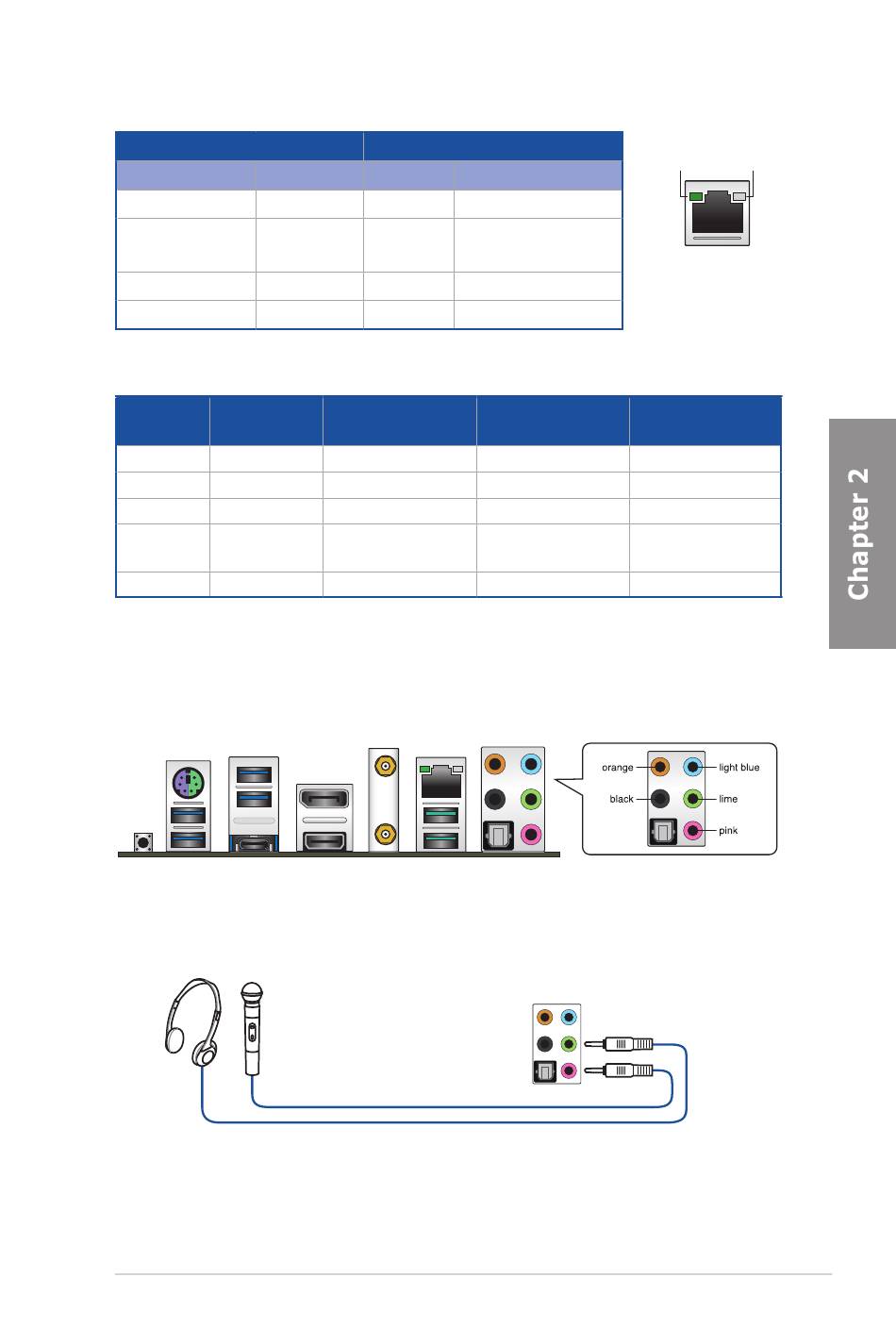

Audio I/O Connections - Asus TUF GAMING X570-PRO WI-FI Manual

* Ethernet port LED indications
Activity Link LED
Status Description Status
OFF No link
GREEN Blinking Data activity
GREEN Blinking Data activity
GREEN Blinking Data activity
** Audio 2, 4, 5.1 or 7.1-channel configuration
Headset
Port
2-channel
Light Blue Line In
Lime Line Out
Pink Mic In
Orange –
Black –
2.3.2

Audio I/O connections

Audio I/O ports
Connect to Headphone and Mic
TUF GAMING X570-PRO (WI-FI)
Speed LED
Description
No link
OFF
100 Mbps / 10 Mbps
OFF
connection
2.5 Gbps connection
GREEN
1 Gbps connection
ORANGE
4-channel
Line In Line In
Front Speaker Out Front Speaker Out Front Speaker Out
Mic In Mic In
– Center/Sub
woofer
Rear Speaker Out Rear Speaker Out
ACT/LINK
LED
5.1-channel 7.1-channel
Side Speaker Out
Mic In
Center/Sub
woofer
Rear Speaker Out
SPEED
LED
LAN port
2-17
