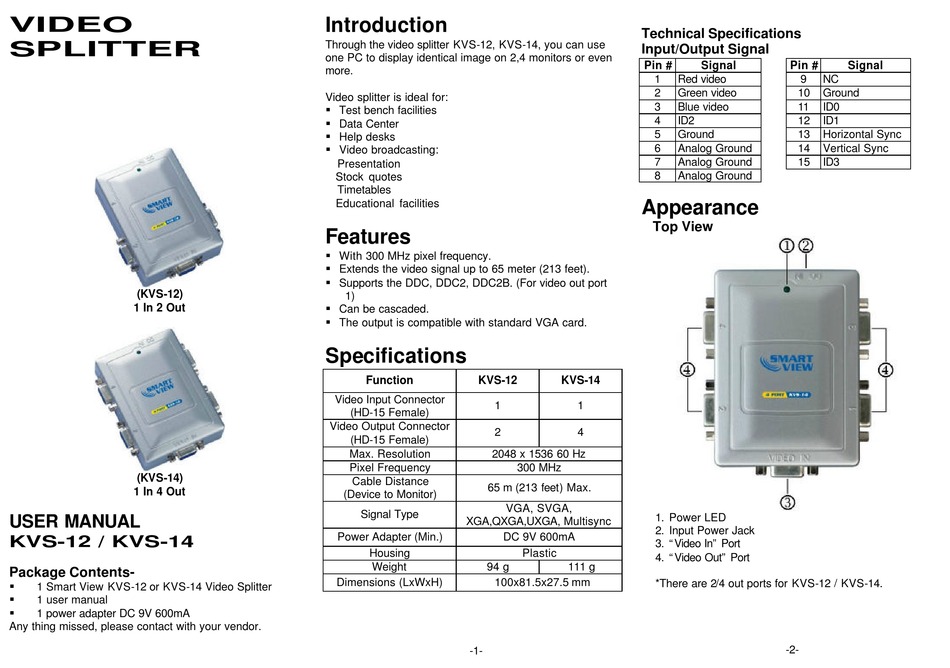

Smart view KVS-12 User Manual

VIDEO
SPLITTER
(KVS-12)
1 In 2 Out
(KVS-14)
1 In 4 Out
USER MANUAL
KVS-12 / KVS-14
Package Contents-
§
1 Smart View KVS-12 or KVS-14 Video Splitter
§
1 user manual
§
1 power adapter DC 9V 600mA
Any thing missed, please contact with your vendor.

Introduction

Through the video splitter KVS-12, KVS-14, you can use
one PC to display identical image on 2,4 monitors or even
more.
Video splitter is ideal for:
§ Test bench facilities
§ Data Center
§ Help desks
§ Video broadcasting:
Presentation
Stock quotes
Timetables
Educational facilities

Features

§ With 300 MHz pixel frequency.
§ Extends the video signal up to 65 meter (213 feet).
§ Supports the DDC, DDC2, DDC2B. (For video out port
1)
§ Can be cascaded.
§ The output is compatible with standard VGA card.

Specifications

Function KVS-12
Video Input Connector
1
(HD-15 Female)
Video Output Connector
2
(HD-15 Female)
Max. Resolution 2048 x 1536 60 Hz
Pixel Frequency
Cable Distance
65 m (213 feet) Max.
(Device to Monitor)
Signal Type
XGA,QXGA,UXGA, Multisync
Power Adapter (Min.) DC 9V 600mA
Housing
Weight 94 g
Dimensions (LxWxH) 100x81.5x27.5 mm
-1-

Technical Specifications

Input/Output Signal

Pin #
1 Red video
2 Green video
3 Blue video
4 ID2
5 Ground
6 Analog Ground
7 Analog Ground
8 Analog Ground

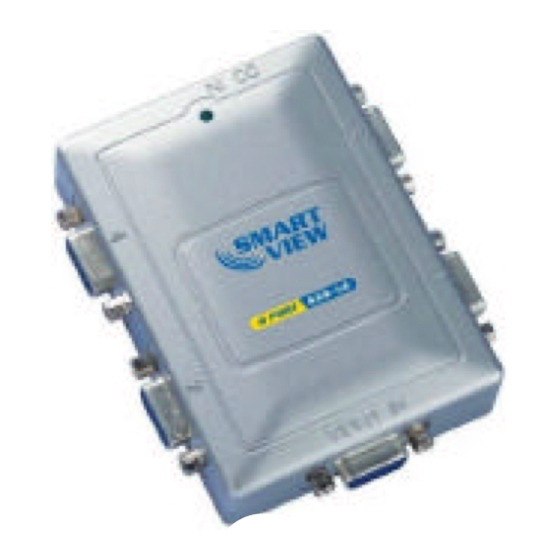

Appearance

Top View
KVS-14
1
4
300 MHz
VGA, SVGA,
1. Power LED
2. Input Power Jack
3. "Video In" Port
Plastic
4. "Video Out" Port
111 g
*There are 2/4 out ports for KVS-12 / KVS-14.
Signal Pin # Signal
9 NC
10 Ground
11 ID0
12 ID1
13 Horizontal Sync
14 Vertical Sync
15 ID3
-2-
