Smart view VAS-812PF User Manual

VIDEO/AUDIO
SPLITTER
USER MANUAL
VAS-812PF / VAS-814PF
/ VAS-818PF
Package Contents-
1 Smart View VAS-812PF or VAS-814PF or
VAS-818PF video/audio splitter
1 user manual
1 power adapter AC 7.5V 800mA for VAS-812PF
and VAS-814PF, DC 7.5V 1.5A for VAS-818PF
Any thing missed, please contact with your vendor.

Introduction

Through the VAS-812PF, VAS-814PF, VAS-818PF
video/audio splitter, by virtue of the video of VGA card and
the audio of sound card from the PC, can drive 2,4,8
monitors and earphones function concurrently.
Video/audio splitter is ideal for:
Test bench facilities
Data center
Help desks
Video broadcasting:
Presentation
Stock quotes
Timetables
(VAS-812PF)
Educational facilities
1 In 2 Out

Features

Multi-function.
1U rack design for VAS-818PF.
Video:
With 400 MHz pixel frequency.
Extends the video signal up to 65 meter (213").
(VAS-814PF)
Supports the DDC, DDC2, DDC2B. (For video out port
1 In 4 Out
1)
Can be cascaded.
The output is compatible with standard VGA card.
Audio:
General audio line level.
Can be cascaded.
Available for general earphone.
(VAS-818PF)
1 In 8 Out

Specifications

Video:
Extended Distance: Max. 65 meter.
Signal Type: VGA, SVGA, XGA, QXGA,UXGA, Multisync.
Input Connector: HD-15 female.
Audio:
Operation Frequency: 50Hz~15KHz.
Input Impedance: 20KΩ.
Max. Audio Input: 2.5Vp-p.
Input Connector: 3.5φmini-stereo jack.
Video Out Connector
Audio Out Connector
(3.5φMini-Stereo Jack)
Dimensions [LxWxH]mm 130x75x42 200X75X42 343x105X42

Technical Specifications

Input/Output Signal

Pin #
1. Power LED
-1-
Function VAS-812PF VAS-814PF VAS-818PF
2
(HD-15 Female)
Max. Resolution 2048 x 1536 60 Hz
Pixel Frequency 400 MHz
2
Power Adapter AC 7.5V 800mA
Housing
Weight 465 g
Signal Pin #
1 Red video 9 NC
2 Green video 10 Ground
3 Blue video 11 ID0
4 ID2 12 ID1
5 Ground 13 Horizontal sync
6 Analog ground 14 Vertical sync
7 Analog ground 15 ID3
8 Analog ground

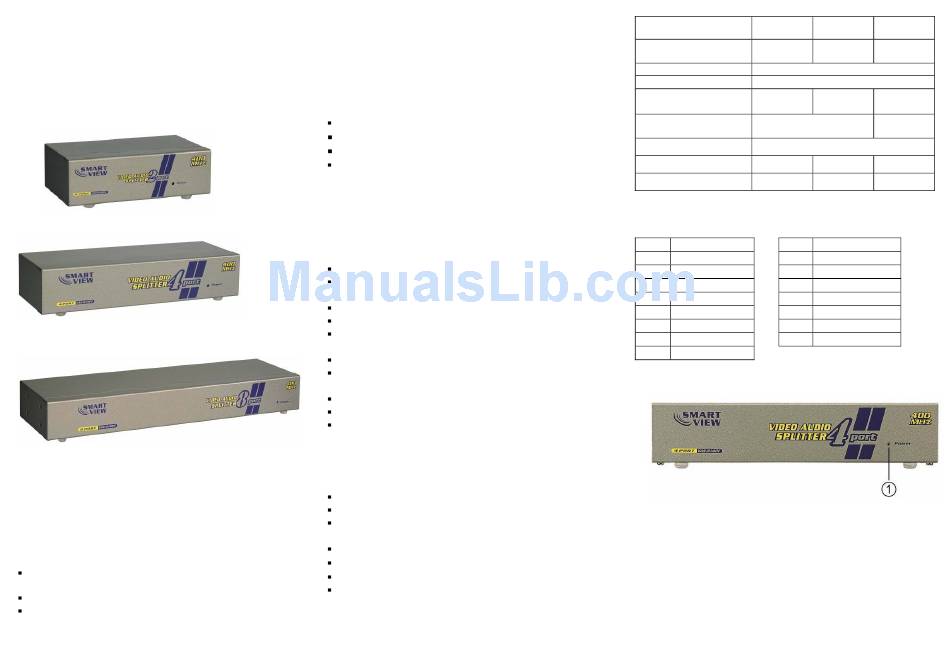

FRONT VIEW

-2-
4 8
4 8
DC 7.5V
1.5A
Metal
670 g 1325 g
Signal
