Smart view VS-812H User Manual

VIDEO
SPLITTER
USER MANUAL
VS-812H / VS-814H
/ VS-818H / VS-8116H
Package Contents-

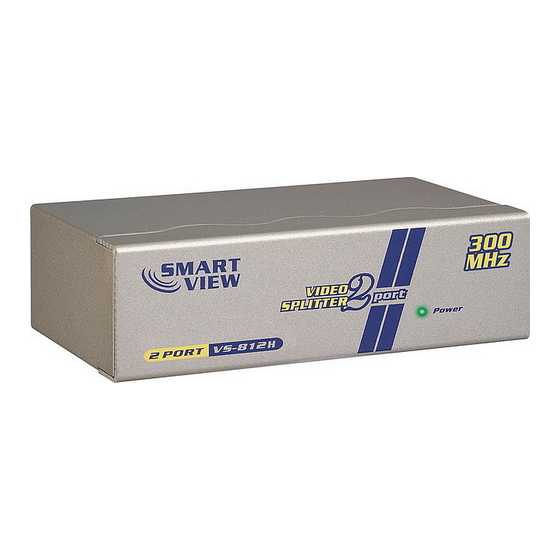

1 Smart View VS-812H or VS-814H or VS-818H or
VS-8116H Video Splitter
1 user manual
1 power adapter DC 12V 600mA for VS-812H, 814H,
818H or 1 DC 12V 1.25A for VS-8116H
2 rack rails, 8 screws for VS-8116H only
Any thing missed, please contact with your vendor.

Introduction

Through the video splitter VS-812H, VS-814H, VS-818H,
VS-8116H, you can use one PC to display identical image
on 2,4,8,16 monitors or even more.
Video splitter is ideal for:
Test bench facilities
Data Center
Help desks
Video broadcasting:
Presentation
(VS-812H)
Stock quotes
1 In 2 Out
Timetables
Educational facilities
Features
(VS-814H)
With 300 MHz pixel frequency.
1 In 4 Out
Extends the video signal up to 65 meter (213 feet).
Supports the DDC, DDC2, DDC2B. (For video out port
1)
Can be cascaded.
1U rack design for VS-8116H.
The output is compatible with standard VGA card.
(VS-818H)
1 In 8 Out
Specifications
Function
Video Input
Connector
(HD-15 Male)
Video Output
(VS-8116H)
Connector
1 In 16 Out
(HD-15 Female)
Max. Resolution
V1.0
Pixel Frequency
Cable Distance
(Device to Monitor)
Signal Type
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)
mm
VS-812H VS-814H VS-818H VS-8116H
1 1 1 1
2 4 8 16
1920 x 1440 60 Hz
300 MHz
65 m (213 feet) Max.
VGA, SVGA, XGA, Multisync
DC 12V
DC 12V 600mA
1.25A
Metal
420 g 455 g 680 g 1480 g
200x75 343x105
130x75x42
x42 x42
-1-

Technical Specifications

Input/Output Signal
Pin # Signal Pin #
1 Red video 9
2 Green video 10
3 Blue video 11
4 ID2 12
5 Ground 13
6 Analog Ground 14
7 Analog Ground 15
8 Analog Ground

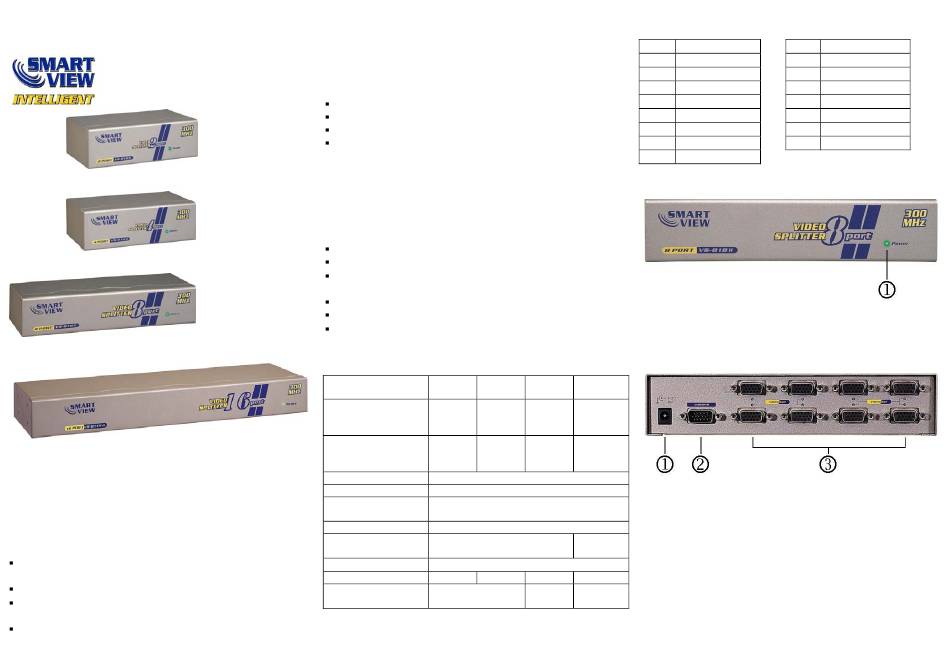

FRONT VIEW
1. Power LED
REAR VIEW
1. Input Power Jack
2. "Video In" Port
3. "Video Out" Port
*There are 2/4/8/16 out ports for VS-812H / VS-814H /
VS-818H / VS-8116H.
-2-
Signal
NC
Ground
ID0
ID1
Horizontal Sync
Vertical Sync
ID3
