3700 SERIES
IMPORTANT
Read this manual carefully before installing,
operating or servicing this equipment.
PERSONAL SAFETY
Personal injury and/or equipment damage may result
if proper safety precautions are not observed.
WARNING:
Even low pressure can
cause irreparable damage or death.
Exercise extreme caution while
operating or servicing this equipment.

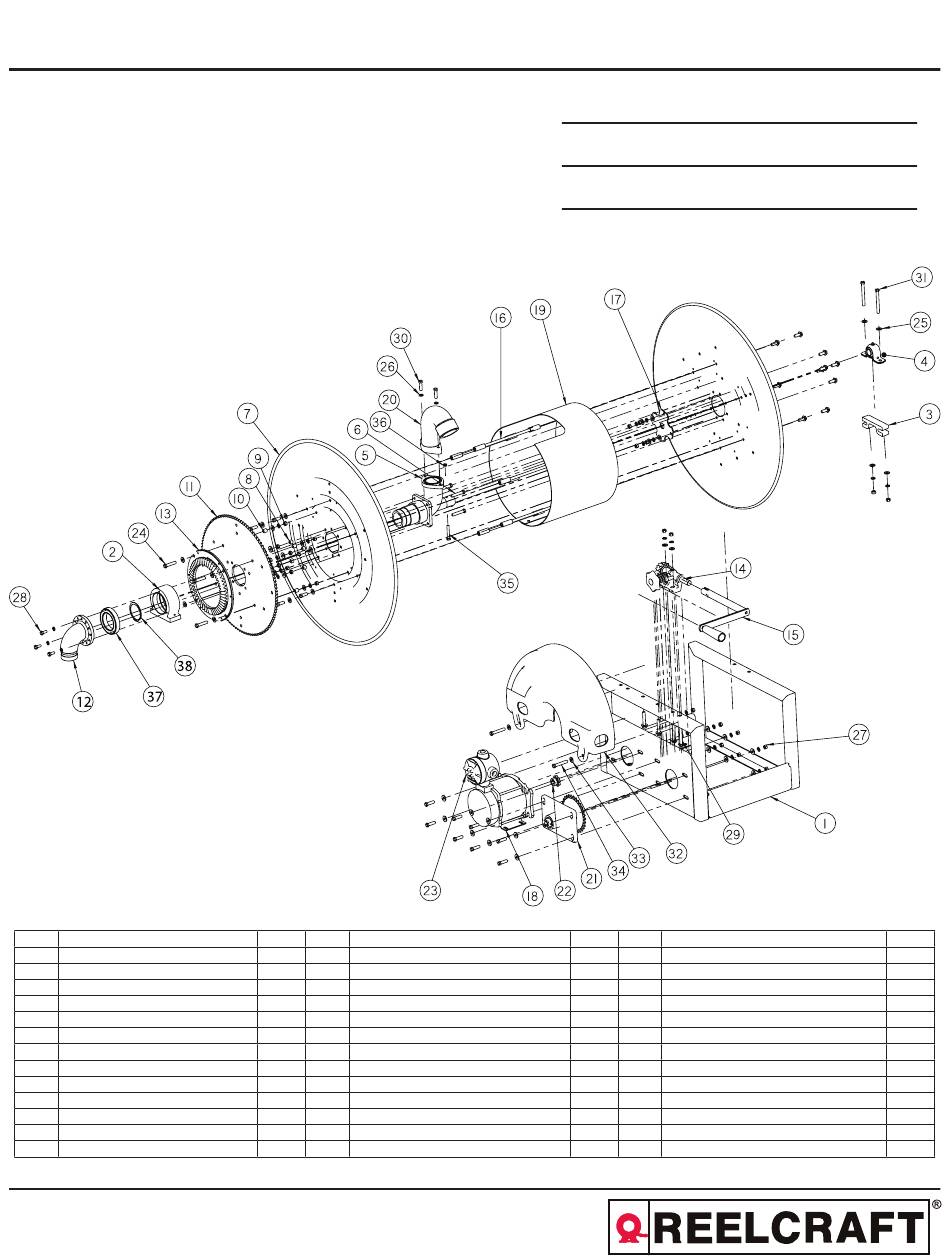

Item #
Description
1
FRAME WELDMENT ASSEMBLY
2
BEARING HOUSING SUB ASSEMBLY
3
PAT1075AL CASTING BEARING SPACER
4
PILLOW BLOCK ASSEMBLY
5
SPINDLE
6
SUPPORT SHAFT
7
HEAD
8
S390030-1 SPACER 3/8" X 7/16" LG
9
S338-5 HEX NUT
10
S390030-3 SPACER 3/8" X 3/4" LG
11
SPROCKET, LARGE
12
INLET
13
GEAR, BEVEL
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
Hose Reel Operations Manual
Quantity Item #
Description
1
14
HANDWIND ASSEMBLY
1
15
CRANK AND HANDLE ASSEMBLY
1
16
TIE ROD
1
17
HEAD INSERT
1
18
MOTOR
1
19
DRUM
2
20
GOOSENECK
4
21
IDLER ASSEMBLY / or CLUTCH ASSEMBLY
4
22
SPROCKET, MOTOR
4
23
JUNCTION BOX ASSEMBLY (OPTIONAL)
1
24
S347-69 HEX CAP SCREW 3/8"-16 UNC X 2"
1
25
S350-6 WASHER 3/8"
1
26
S339-616 LOCK WASHER 3/8"
ORDER #:
MODEL #:
SERIAL #:
Quantity Item #
1
27
1
28
6
29
1
30
1
31
1
32
1
33
1
34
1
35
1
36
10
37
56
38
30
Description
S338-6 HEX NUT 3/8"-16 UNC
S347-65 HEX CAP SCREW 3/8"-16 UNC X 1"
S347-611 HEX CAP SCREW 3/8"-16 UNC X 2.5"
S347-66 HEX CAP SCREW 3/8"-16 UNC X 1.25"
S347-616 HEX CAP SCREW 3/8"-16 X 3.75"
CHAIN GUARD
S350-41 WASHER SMALL 3/8"
S347-610 HEX CAP SCREW 3/8"-16 UNC X 2.25"
S376-59 HEX CAP SCREW (5/16-18 X 2)
S85-7 NYLOC NUT (5/16-18)
SEAL AND RING ASSEMBLY
SNAP RING
Quantity
26
19
2
10
2
1
2
2
1
1
1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3700 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ReelCraft 3700 Series

  • Page 1 S350-6 WASHER 3/8” SNAP RING GEAR, BEVEL S339-616 LOCK WASHER 3/8” Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725 Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605 Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com...
  • Page 2 NOTE: It is not proper to connect either power lead to any part of the motor, or to any part attached to the motor, such as the terminal box, as that would make the motor an integral part of the electrical power circuit. Page 2 www.reelcraft.com...
  • Page 3 Apply thread compound to connecting gooseneck (1) and output hose fitting threads (2). Hand thread output hose fi tting (2) into gooseneck (1). Using a wrench, fi rmly hold gooseneck (1) while tightening out put hose fit- ting (2). www.reelcraft.com Page 3...
  • Page 4 REPLACING THE MOTOR CAUTION: Before replacing the motor, remove electrical power and fluid pressure from reel. Loosen (do not remove) bolts (1) securing motor (2) to reel. Slide motor and remove chain. Remove bolts securing motor. Install replacement motor. Page 4 www.reelcraft.com...
