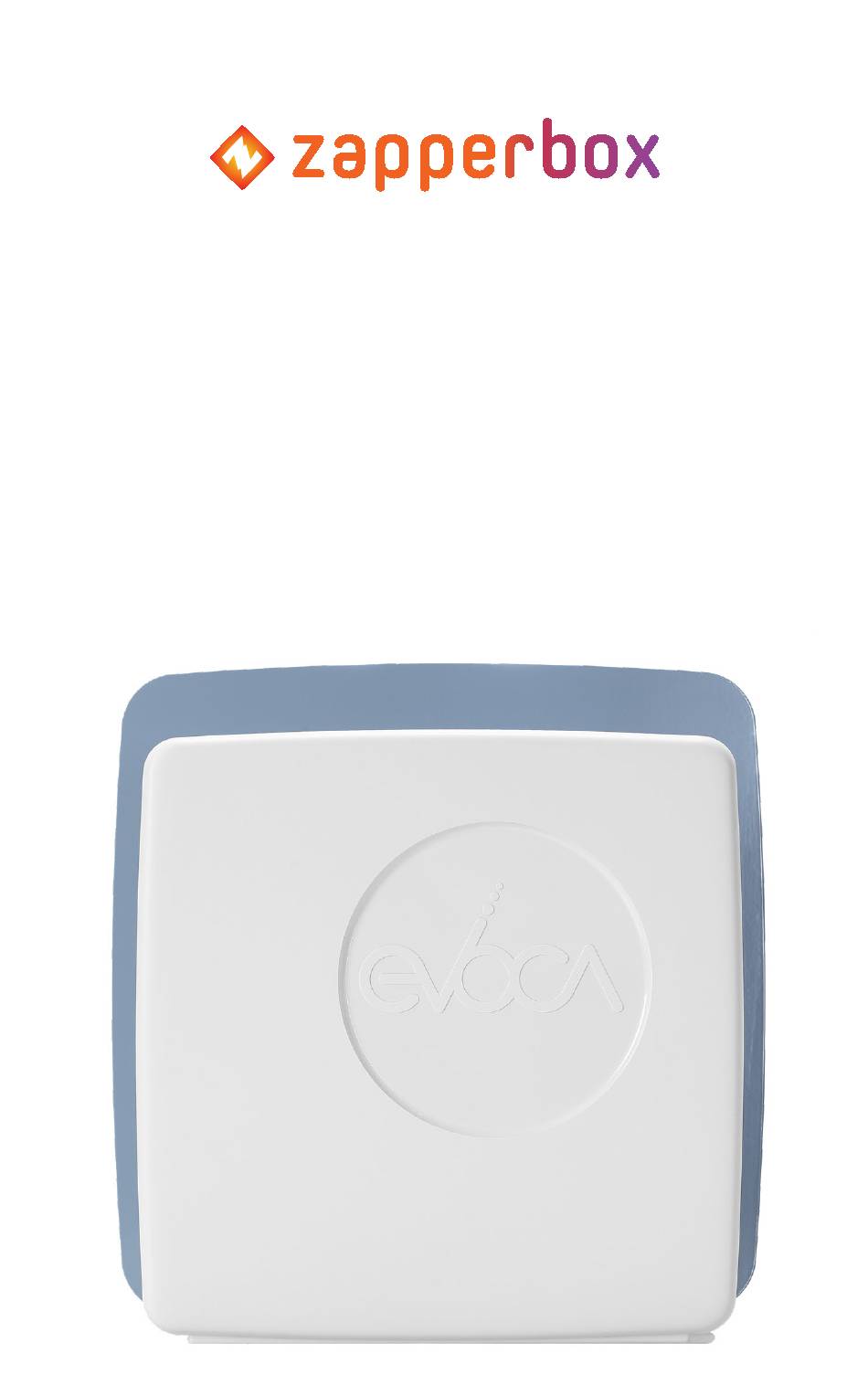

- Page 1 Indoor/Outdoor Antenna by Televes QUICK START GUIDE...

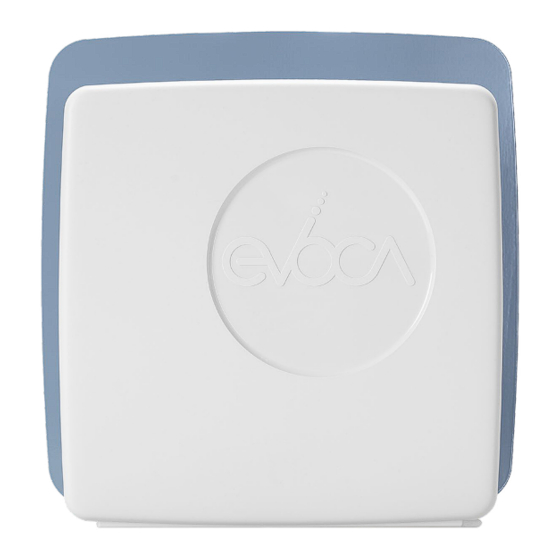

- Page 2 QUICK START GUIDE Indoor/Outdoor Antenna by Televes MODEL: ZXA1 FEATURES • Built-in amplifier • Removable reflector • Integrated LTE filter • Integrated 5G antenna IN THE BOX CLAMP WING NUTS SCREWS USB CABLE TO TV TO ANT ANTENNA REFLECTOR POWER INJECTOR...
-
Page 3: Installation Instructions
NOTE: SHOULD I USE THE REFLECTOR? Using the reflector can greatly enhance the forward gain of an antenna, particularly indoors where multipath reflections from bouncing signals cause reception issues. With a reflector, interference from the rear is minimized and gain in the forward direction is increased, resulting in better performance. - Page 4 WALL MOUNT (WITH REFLECTOR) Step 1 Step 2 Remove the pole mounting hardware from the Place the Reflector (E) in the position shown Reflector (E) using the included Wrench (J). below and fasten with included Screws (D). Step 3 Attach to wall using 2 screws (not included). Continue on page 5 with Connection Steps.
-
Page 5: Antenna Connections
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Manufactured and Imported by: Distributed by: Televes USA LLC, Norfolk Tech Center ZapperBox 16596 E. 2nd Ave, Aurora, CO 80011 1776 22nd Street, Suite 200 televes.usa@televes.com... -
Page 6: Safety Instructions
Safety Instructions LIGHTNING PROTECTION WARNINGS • If installed outdoors, be sure the antenna system • To prevent fire or shock hazard, do not expose the is grounded so as to provide protection against included power supply to rain or moisture. voltage surges and built-up static charges. - Page 7 Notes v1.0 Page 7...
