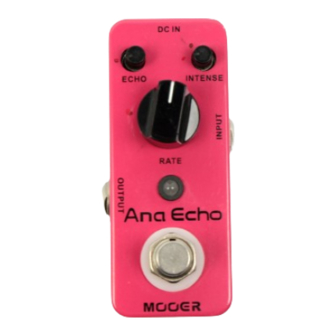

Mooer Micro Series Owner's Manual

Analog Delay Pedal
Main Features
Ÿ Full analog circuit, warm, clear, smooth analog delay sound
Ÿ
Full metal shell
Ÿ Very small and exquisite
Ÿ True bypass
Ÿ
DC 9V Adapter power supply
3
6 7
8
4
5
6. ECHO Knob:
Adjust the level of delay effects.
7. INTENSE Knob:
Adjust the feedback of delay effects.
8. RATE Knob:
Adjust the delay time.
Delay Time: 20ms-300ms
Input: 1/4" monaural jack (impedance: 470k Ohms)
Output: 1/4" monaural jack (impedance: 470 Ohms)
Power Requirements: AC adapter 9V DC (center minus plug)
Current Draw: 26 mA
Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
Weight: 160g
Accessories: Owner's Manual
*
Disclaimer: Any specification's update won't be amended in this manual.
