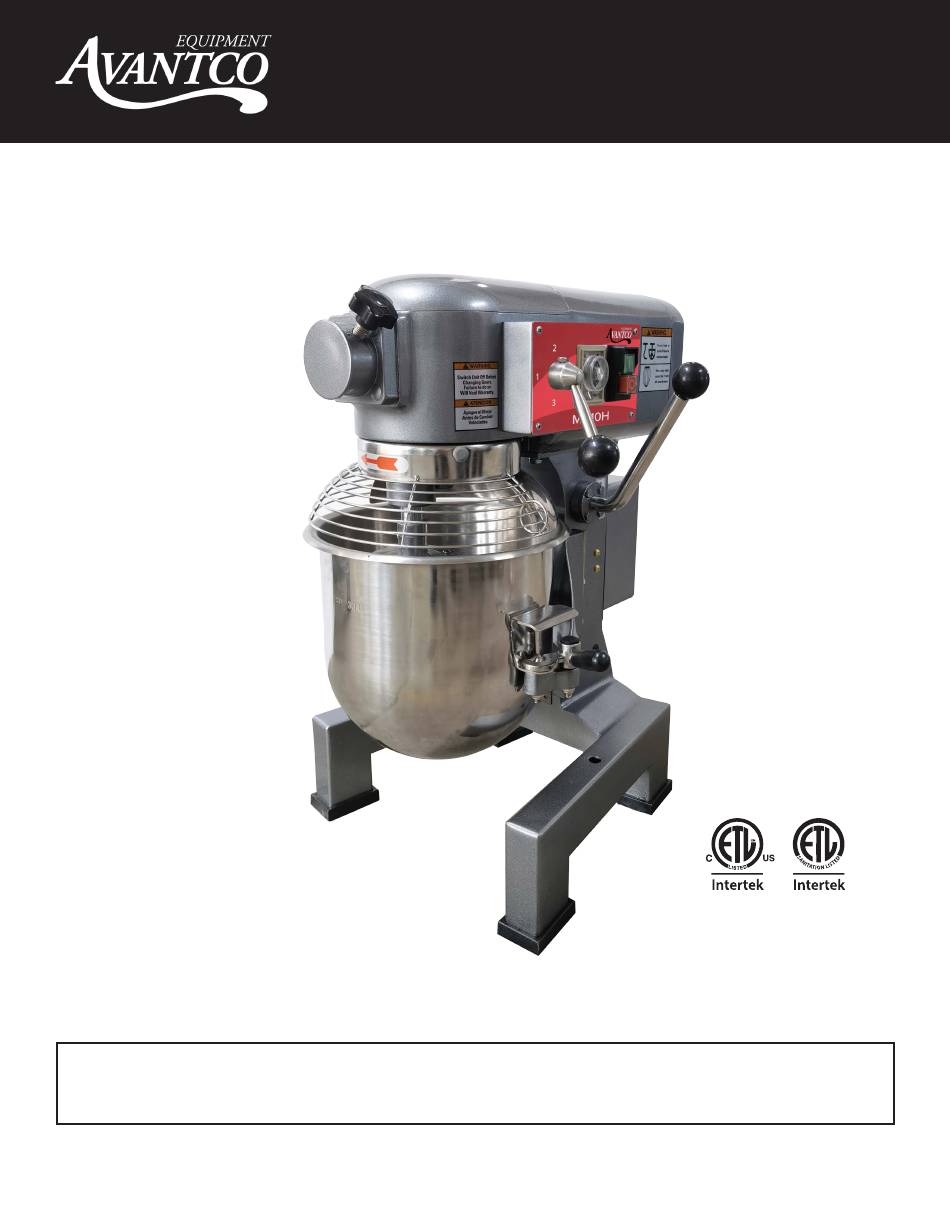

Gear Driven 10 Qt. Commercial Mixer
Models: 177MX10H
9/2022
Please read and keep these instructions. Indoor use only.
www.AvantcoEquipment.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 177MX10H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avantco 177MX10H

  • Page 1 User Manual 4009293 4009293 CONFORMS TO NSF STD. 8 CONFORMS TO UL STD. 763 CONFORMS TO CSA STD.C22.2 NO 195 Gear Driven 10 Qt. Commercial Mixer Models: 177MX10H 9/2022 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
  • Page 2: Table Of Contents

    User Manual Index Safety instructions .............. 3 Installation and cleaning ............. 4 Removal and refitting instructions mixer safety guard..5 Parts overview ..............6 Operating instructions ............7 Mixer capacity chart and Specifications ......8 Accessories ................. 9 Troubleshooting ..............10 Warranty information ............11 www.AvantcoEquipment.com...
  • Page 3: Safety Instructions

    User Manual Important Safety Instructions When using electrical appliances, basic safety precautions should be followed, including the following: Read all instructions carefully and completely. For commercial use only. Protect against electrical shock by keeping all cords, plugs, and other electrical components away from water or other liquids.
  • Page 4: Installation And Cleaning

    User Manual Installation Prior to installation the electrical supply to the unit must be checked to ensure it complies to the electrical rating of the machine as detailed on the serial plate. The unit must be positioned to ensure there is sufficient space around the machine to operate the controls and to raise and lower the mixing bowl.
  • Page 5: Removal And Refitting Instructions Mixer Safety Guard

    User Manual REMOVAL AND REFITTING INSTRUCTIONS MIXER SAFETY GUARD 1. To remove the wire guard adjust the position to align the edge of the wire guard with the single indentation marker on the fixed rear guard. See figure 1. Figure 1 2.
  • Page 6: Parts Overview

    User Manual PARTS CATALOG OVER Parts Overview ITEM DESCRIPTION #12 Hub ITEM Mixing Speed Handle Safety Guard Mixing Device (Not shown in drawing) Bowl Lift Handle Bowl Timer Power Switch NOTE • Do no • Do no opera • Unlpu Notes: suppl •...
  • Page 7: Operating Instructions

    STANDARD ACCESSORIES OPERATION INSTR User Manual FIGURE 10 Please ensure power supply m Please ensure power supply m NEMA 5015P 110V 110V FOR CHANGING THE SPEED: before changing speed in order t Operating Instructions for Normal Using STANDARD ACCESSORIES OPERATION INSTRUCTION FOR CHANGING THE SPEED: before changing speed in order t FIGURE 10...
  • Page 8: Mixer Capacity Chart And Specifications

    • 2nd Speed should never be used on mixtures with less than 50% AR. When calculating the correct size mixer for your application, here are some helpful weights & measures: • 8.3 lb. = 1 gallon of water – 2.08 lb. = 1 Quart. TYPE 177MX10H Capacity 10 qt Power Supply (V)
  • Page 9: Accessories

    STANDARD ACCESSORIES OPERATION INSTR User Manual FIGURE 10 Please ensure power supply m Please ensure power supply m NEMA 5015P 110V 110V FOR CHANGING THE SPEED: Standard Accessories before changing speed in order t STANDARD ACCESSORIES OPERATION INSTRUCTION FOR CHANGING THE SPEED: before changing speed in order t FIGURE 10 MIXING: According to the diff...
  • Page 10: Troubleshooting

    User Manual Troubleshooting Trouble Possible Causes Solution The axles can’t work when operating Poor contact of the electrical Check the Plug the machine equipment The mixing bowl is out of position Moving direction is not correct Change Leaks oil Sealing washer is damaged Change Difficult to move the bowl up and down Slideway is rusted...
  • Page 11: Warranty Information

    177MIX8 series countertop mixers only 1 Year Parts and Labor Warranty Avantco warrants the following models to be free of defects in material and workmanship for a period of 1 year when purchased from an authorized dealer and appropriately installed in the United States.
  • Page 12 • Damage caused by improper electrical connection or voltage fluctuations. • Avantco has the sole discretion on wearable parts not covered under warranty. Warranty Inquiries and to Make a Claim For all equipment covered by this replacement warranty, please contact your authorized dealer.
