AKM 888/01
Operation of cooking zones
The cooktop control knobs are on the control
panel on the oven
• Set the knob to one of position 1-6, which correspond to
different temperatures.
• To switch off the cooking zones, set the knob to
position "0".
• The hob is provided with 4 indicator lights showing
when the cooking zones are hot. These indicators lights
switch on as soon as the cooking zones reach a high
temperature.

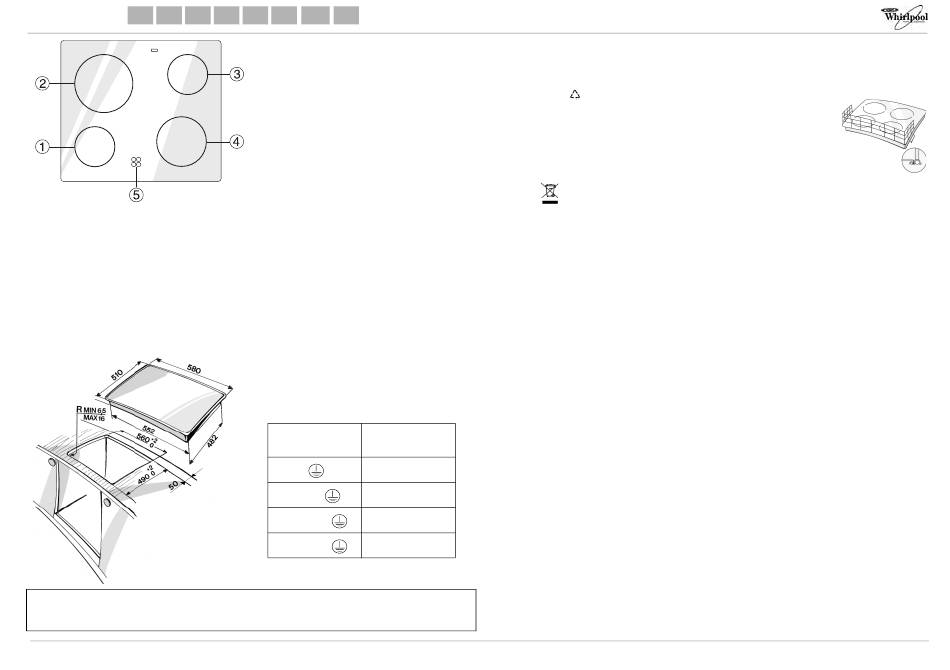

DIMENSIONS OF THE COOKTOP AND WORKTOP (mm)
Type PFEVS 230V~ 50 Hz 6.2Kw
5019 319 62110
PRODUCT DESCRIPTION SHEET
Radiant cooking zone Ø 145
1.
Radiant cooking zone Ø 210
2.
Radiant cooking zone Ø 145
3.
4. Radiant cooking zone Ø 180
5. Residual heat indicator lamps
These indicator lights remain on even after switching off
of the relevant cooking zone and they switch off only
when the temperature of the cooking zone is no longer
dangerous.
Important:
To avoid permanently damaging the glass-ceramic top,
do not use:
- Pots with bottoms that are not perfectly flat.
- Metal pots with enamelled bottom.
Make sure that the voltage indicated on the rating
plate is the same as the mains voltage. Technical
data is given on the rating plate on the edge of the
hob and also below:
ELECTRICAL CONNECTION
Conductors
Supply voltage
(number and size)
2
3 X 2.5 mm
230 V ~
2
4 X 1.5 mm
230 V 3 ~ +
5 X 1.5 mm 2
400 V 3N ~ +
4 X 1.5 mm 2
400 V 2N ~ +
To get full satisfaction from the hob, please read these instructions carefully and keep them for future consultation.
To get full satisfaction from the hob, please read these
instructions carefully and keep them for future consultation.
PROTECTING THE ENVIRONMENT
Disposal of packaging materials
• The packing material can all be fully recycled, as confirmed by
the recycling symbol .
• The various parts of the packing must not be sent for waste,
but recycled in conformity with the regulations imposed by
local authorities.
Disposal of used household appliances
• This appliance is marked according to the European directive
2002/96/EC on Waste Electrical and Electronic Equipment
(WEEE). By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents
accompanying the product, indicates that this appliance may
not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for
waste disposal. For more detailed information about
treatment, recovery and recycling of this product, please
contact your local city office, your household waste disposal
service or the shop where you purchased the product.
Energy saving
• Use pots and pans whose bottom diameter is equal to that of
the cooker plates, or slightly larger.
• Only use flat-bottomed pots and pans.
• If possible, keep the pot covered when cooking.
• Cook vegetables, potatoes, etc. with little water in order to
cut down cooking time.
• A pressure cooker allows you to save even more energy and
time.
CAUTION
• Should the hob become cracked or broken, do not use it and
call the After Sales Service immediately.
• If the hob incorporates halogen cooking elements, do not stare
at them.
• The hob is designed for use as a domestic food cooker only.
No other type of use is allowed. The Manufacturer declines all
responsibility for inappropriate use or incorrect setting of the
controls.
• Do not expose the hob to atmospheric agents.
• Any repairs or adjustments must be carried out exclusively by
an authorised technician.
• Avoid touching the hob with wet hands or using it when
barefoot.
• Do not allow children to touch:
- the hob in general, to avoid burns.
During and immediately after use the hob reaches extremely
high temperatures;
- packing materials (bags, polystyrene, metal parts, etc.);
- the hob to be scrapped.
• Make sure that the electrical wires of other electrical
appliances near the hob do not come into contact with hot
parts of the hob itself.
• Always keep a watch on pans when cooking with oil and
grease. The oil and grease might overheat and catch fire!
• Do not use the hob as a support or worktop.
• Do not leave the hot plates/cookers turned on when they are
empty.
• Do not rest plastic, aluminium foil, cloths, paper etc. on the hot
plates/cookers.
• The hob is fitted with hot plates/cookers of different sizes.
Use pans whose bottom diameter is equal to that of the hot
plates/cookers, or slightly larger.
BEFORE USING THE COOKING HOB
Before use, remove:
- adhesives stuck on the hob;
- cardboard guards and protective plastic film;
- check whether the hob has been damaged during transport.
If in doubt, contact the After Sales Service.
ACCESSORY
Child guard AMH 122
This accessory can be obtained from
the After Sales Service under code
number 4819 310 18436 or from your
dealer under reference number
017124.
Care and maintenance
Important: never clean the appliance
with high pressure water or steam cleaning equipment.
• Clean the hob, when it is cool, after each use. This will prevent
the build-up of dirt and make cleaning easier.
• Use a clean cloth, absorbent kitchen wipes and washing up
liquid or a specific glass ceramic cleaner.
• Remove baked-on dirt with the special scraper tool
(if provided) and specific cleaning products.
• Any food spills should be cleaned off before they dry.
• Do not use abrasive products, chlorine-based cleaners, oven-
cleaner spray or pan scourers.
• The hob should be treated periodically with specific products
available from the shops, following the manufacturer's
instructions.
TROUBLESHOOTING GUIDE
The hob does not work:
- Make sure that the power supply is on.
- Turn the hob off and on again, to make sure that the problem
has been solved.
- Make sure that the knob is not turned to "0".
Turn the multi-pole switch to "Off" for a few minutes and
then turn it back to "On".
AFTER SALES SERVICE
Before you call the After Sales Service
• Make sure that you cannot solve the problem yourself following
the points described in chapter "Troubleshooting Guide".
If after the above checks the fault still occurs, get in touch
with the nearest After Sales Service.
Please give:
• a short description of the fault;
• the exact type and model of hob;
• service number (i.e., the number that follows the word
SERVICE on the rating plate under the hob itself). The service
number is also indicated on the guarantee booklet;
• your full address;
• your telephone number.
If any repairs are required, please contact an authorised After Sales
Service (to guarantee that original spare parts will be used and
repairs carried out correctly).
Failure to comply with these instructions may compromise
the safety and quality of the product.
