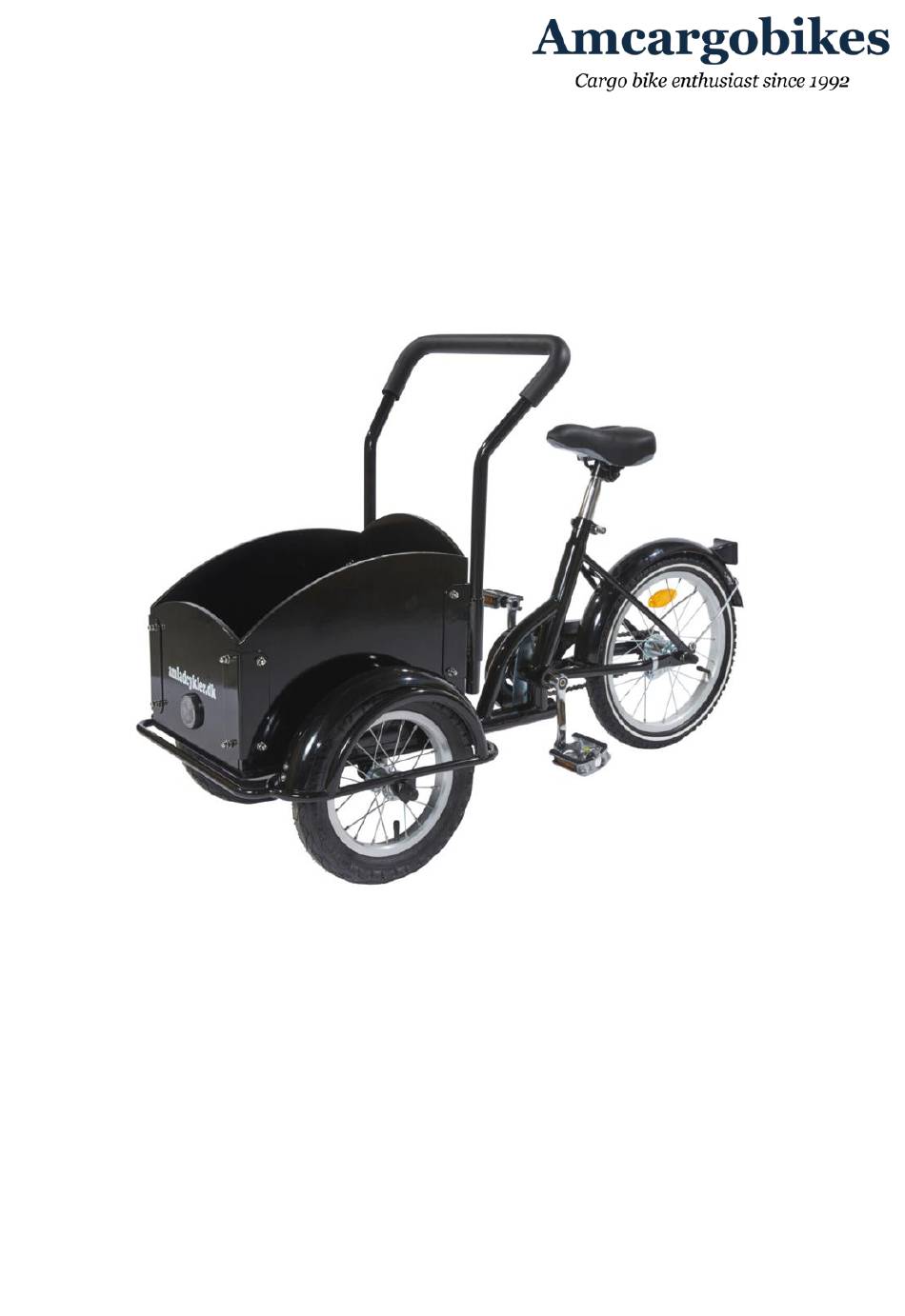

KIDS CARGO BIKE
ASSEMBLE MANUAL
Read and understand these instructions before you begin the assembly. The bike
comes partly assembled, and it is important to read the manual carefully before
starting assembly, so the bicycle will be assembled in the correct order.
Be aware that the bike must be re-tightened after approx. 20 km. Make sure to
check all parts of the bike and re-tighten all moving parts, including breaks, spokes,
bolts and nuts.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIDS CARGO BIKE and is the answer not in the manual?

Questions and answers

Related Manuals for Amcargobikes KIDS CARGO BIKE

Summary of Contents for Amcargobikes KIDS CARGO BIKE

  • Page 1 KIDS CARGO BIKE ASSEMBLE MANUAL Read and understand these instructions before you begin the assembly. The bike comes partly assembled, and it is important to read the manual carefully before starting assembly, so the bicycle will be assembled in the correct order.
  • Page 2 Step 1: Mounting of the cargo bike box • When the parts have been taken out of the boxes and wrapping, the four corner brackets are mounted as shown in picture 1A and 1B. Notice that the brackets with the bushings for the steer must face the back end of the bike.
  • Page 3 • The two bolts for mounting of the handle bar is placed in the corner brackets – see picture 1D and 1E. Picture 1E Picture 1D • The angle brackets are mounted on the side plates as shown in picture 1F and 1G. •...
  • Page 4 Picture 1F Picture 1G Step 2: Mounting of front fenders and front wheels • The front fenders are mounted – ses picture 2A and 2B. • 2 pc. front fenders • 8 pc. small bolts • 8 pc. small washers Picture 2A Picture 2B Page 4...
  • Page 5 • The front wheels are mounted – see picture 2C. Picture 2C Step 3: Mounting of the box on the frame and mounting of the handle bar • The box and the bottom plate are mounted on the frame – see picture 3A and 3B. The four long bolts should sit through the angle brackets, through the bottom plate and through the holes in the frame.
  • Page 6 • The handle bar is mounted – see picture 3C. Picture 3C Step 4: Assembly of the frame and the back frame - and the rest • The cargo box frame and back frame are assembled using the bearings and bit nuts - see picture 4A and 4B.
  • Page 7 • The pedals and the sadle is mounted – see picture 4C, 4D and 4E. Picture 4C Picture 4D Picture 4E ENJOY YOUR NEW CARGO BIKE! Page 7...
