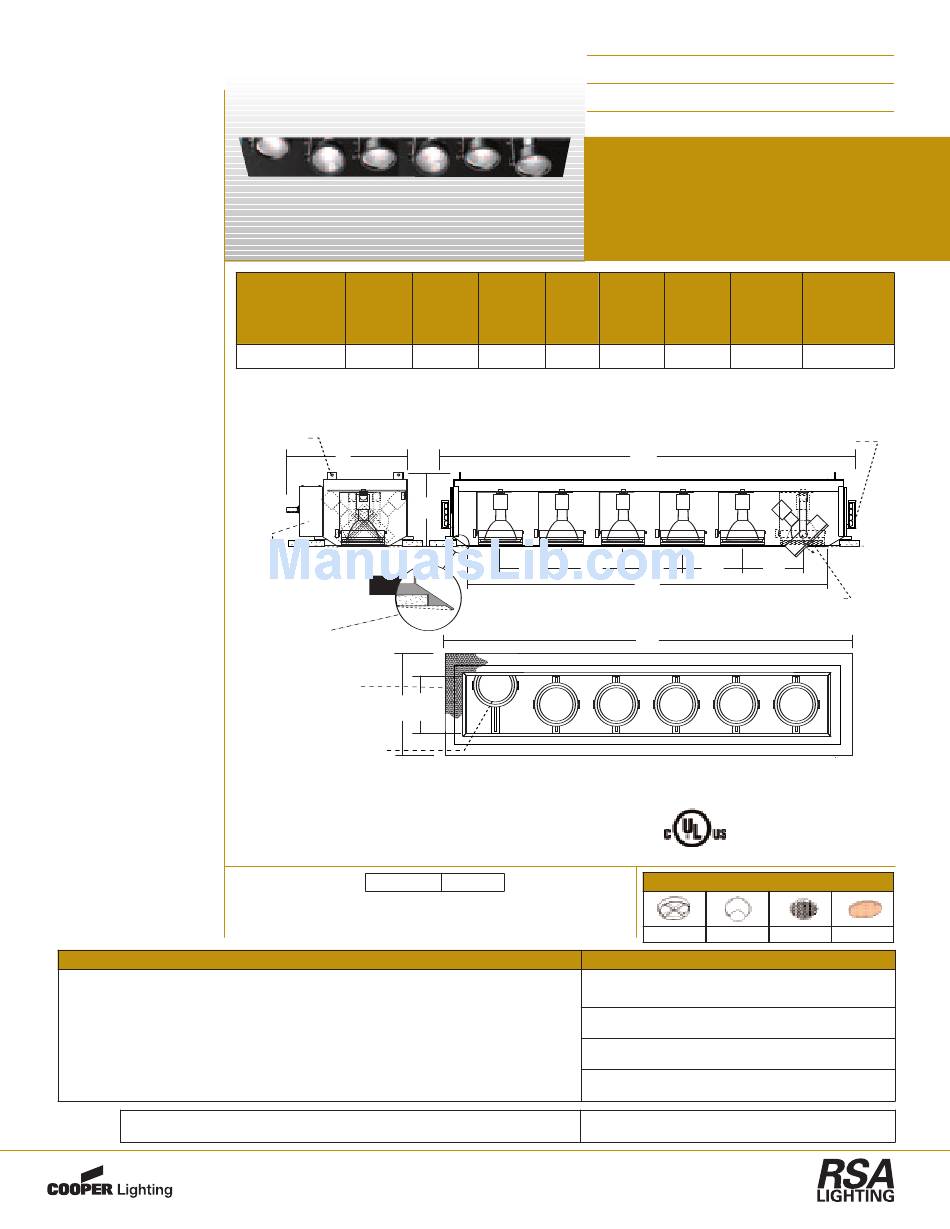

Cooper Lighting COMBOLIGHT LV3060IS Specification Sheet

RECESSED PAR30
LV TRIMLESS
DESCRIPTION:
An adjustable PAR30 fixture suit-
able for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All aluminum construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless trimless mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50" or
0.625" drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
6 - PAR30 lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Junction box is UL listed for
through branch wiring, (access
above ceiling not required) for 8
#12, 90°C supply conductors or
60°C for end of run. J-Box and
wiring accessible through ceil-
ing opening via access door on
housing sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Cat. # / Description
LV3060IS : 6 Light Recessed Next Generation Trimless Combo Fixture 120V PAR30
SPECIFY -
A
Dimensions
Housing
Length
48.77"
Tabs for aircraft
cable suspension
above ceiling
G
Side mounted compartment
houses wiring and thermal
Trimless
protector. Accessible
Detail
through fixture opening.
Ceiling mudding
compound is applied
directly to the edge
of the aperture.
Perforated mesh plaster
frame adheres to ceiling
compound for seamless
trimless mounting. E D
Beveled housing interior and
standard retractable yokes allow
lamp holders to slide within the
housing for added adjustability.
LV3060IS
ORDERING EXAMPLE:
= Six Light Trimless Recessed PAR30 - White Interior
LV3060IS
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
B C D
Housing Aperture Aperture
Height Length Width
8.40" 43.00" 7.00"
B
6.75" 6.75"
WH
Interior Finish
BK - Black
WH - White
S - Silver
PT - Custom (Specify)
___
COMBOLIGHT
®
SIX (6) Light Recessed
Next Generation Trimless
Multi-Lamp Luminaire
PAR30 Line Voltage
E F G
Plaster Frame Plaster Frame Above Ceiling
Width Length Width
12.75" 48.75" 14.95"
Butterfly Brackets
for Black Iron mounting
A
6.75" 6.75" 6.75"
C
380º x 45º locking
angular adjustment
45º visual cut-off
F
Other Adders
CC - Two Circuit
CP - Chicago Plenum
Optional Accessories - Details on Other Side
Baffle Snoots Louvers
LV Series
Ceiling
Cut-Out
46.25" x 10.25"
Lenses
