Cooper Lighting Combolight LV360MH Specification Sheet

RECESSED PAR30MH
LV TRIMLESS
DESCRIPTION:
An adjustable PAR30MH fixture
suitable for multiple downlighting
applications with one point of
electrical entry. Powder coat fin-
ish on housing & lamp assembly.
Housing suitable for new con-
struction applications.
CONSTRUCTION:
All aluminum construction.
Perforated mesh plaster frame
adheres to ceiling compound for
seamless trimless mounting.
Beveled fixture opening provides
easy mudding compound applica-
tion. Can accommodate 0.50" or
0.625" drywall. Includes butterfly
brackets for black iron commer-
cial mounting.
LAMP ASSEMBLY:
6 - PAR30MH lamps mounted in
adjustable bezels. Each lamp can
accept up to two optical acces-
sories. 380º x 45º locking adjust-
ment. Fixture provides 45º visual
cut-off. Lamp holders retract for
added internal adjustment.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Aromat® electronic metal halide
ballsts in remote housing.
Junction box is UL listed for
through branch wiring, (access
above ceiling not required) for 8
#12, 90°C supply conductors or
60°C for end of run. Ballasts and
electrical accessible through ceil-
ing opening via access door on
housing sidewall.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Cat. # / Description
LV360MH : 6 Light Recessed Next Generation Trimless
Combo Fixture
PAR30MH
SPECIFY -
A

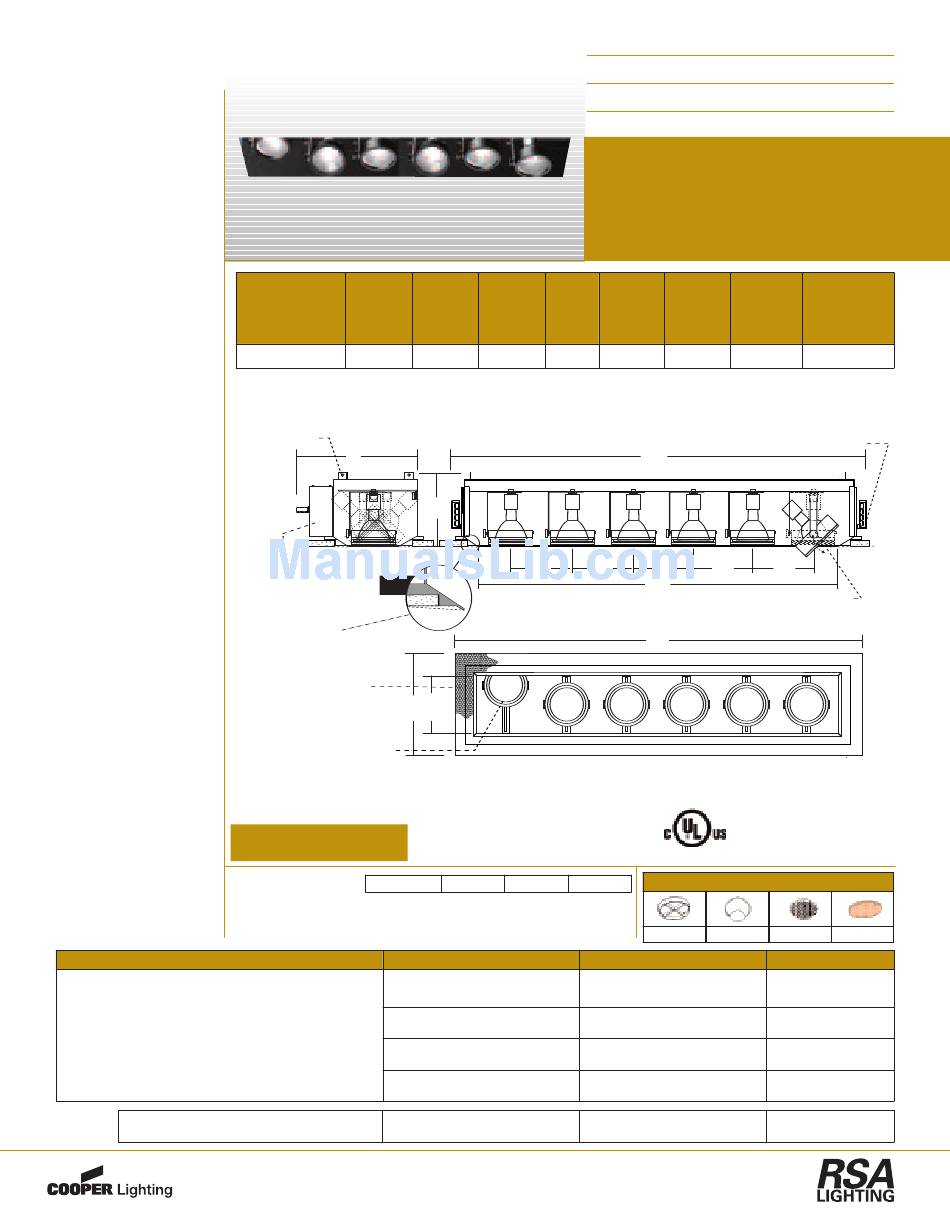

Dimensions
Housing
Length
48.77"
Tabs for aircraft
cable suspension
above ceiling
G
Side mounted compartment
houses wiring, Aromat®
Trimless
electronic and thermal
Detail
protector. Accessible
through fixture opening.
Ceiling mudding
compound is applied
directly to the edge
of the aperture.
Perforated mesh plaster
frame adheres to ceiling
compound for seamless
trimless mounting.
Beveled housing interior and
standard retractable yokes allow
lamp holders to slide within the
housing for added adjustability.
Includes Aromat® Electronic
Metal Halide Ballasts
LV360MH
ORDERING EXAMPLE:
= Six Light Trimless Recessed PAR30MH - White Interior - 70 watt lamps -
120 Volt
Interior Finish
BK - Black
WH - White
S - Silver
PT - Custom (Specify)
LV360MH
___
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
B C D
Housing Aperture Aperture
Height Length Width
8.40" 43.00" 7.00"
B
6.75"
E D
WH 70 120
Lamp Wattage
39 - 39 Watt PAR30MH
70 - 70 Watt PAR30MH
___
COMBOLIGHT
®
SIX (6) Light Recessed
Next Generation Trimless
Multi-Lamp Luminaire
PAR30 Metal Halide
E F G
Plaster Frame Plaster Frame Above Ceiling
Width Length Width
12.75" 48.75" 14.95"
A
6.75" 6.75" 6.75"
C
F
Other Adders
CC - Two Circuit
CP - Chicago Plenum
Optional Accessories - Details on Other Side
Baffle Snoots
Voltage
120 - 120 Volt
277 - 277 Volt
___
LV Series
Ceiling
Cut-Out
46.25" x 10.25"
Butterfly Brackets
for Black Iron mounting
6.75"
380º x 45º locking
angular adjustment
45º visual cut-off
Louvers Lenses
(Standard)
