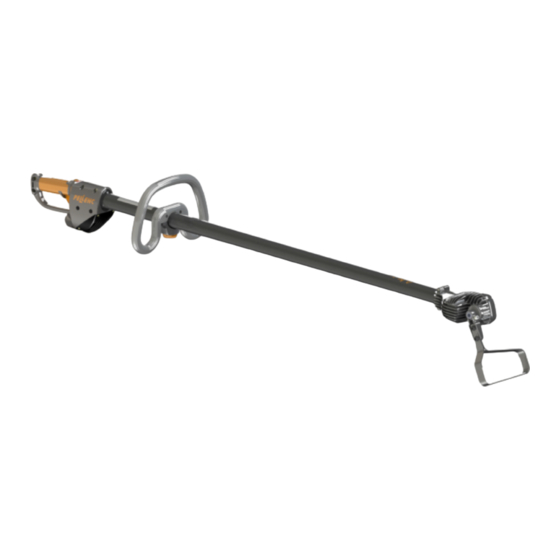

- Page 1 Translation of the original op- erating instructions manual SOIL CULTIVATOR CULTIVION 58_80347-R Operating instructions 10/2021 READ THE USER GUIDE CAREFULLY BEFORE USE...
-
Page 3: Table Of Contents
2.2.6. SERVICE ............................2.2.7. TOOL’S END OF LIFE MANAGEMENT ....................2.3. SAFETY INSTRUCTIONS FOR THE SOIL CULTIVATOR CULTIVION ......... 2.4. SAFETY MEASURES ASSOCIATED WITH PELLENC CHARGER AND BATTERY USE .... 2.5. SAFETY SIGNAGE .......................... 2.6. PERSONAL PROTECTION EQUIPMENT ..................2.7. GOOD PRACTICES FOR SAFE WORKING ................ - Page 4 10. WARRANTIES ........................37 10.1. GENERAL WARRANTIES ......................10.1.1. STATUTORY WARRANTY ......................10.1.2. COMMERCIAL WARRANTYPELLENC .................... 10.1.3. PAID AFTER-SALES SERVICE ...................... 11. COMPLIANCE STATEMENTS: CULTIVION ..............40 11.1. STATEMENT OF COMPLIANCE: CULTIVION ..............11.2. UK DECLARATION OF CONFORMITY : CULTIVION ............
-
Page 5: Introduction
SOIL CULTIVATOR CULTIVION 58_80347-R 1. INTRODUCTION Dear Customer, Thank you for purchasing your Soil Cultivator Cultivion. Properly used and maintained, this equipment will give you years of satisfaction. Warning Your machine contains numerous recoverable or recyclable materials. Return it to your dealer or, failing this, to an approved servicing centre to be treated. -
Page 6: Safety
2. SAFETY 2.1. INTENDED USAGE • The Cultivion is a tool for working in soil only. It is used for weeding, aerating, cultivating and mixing fertiliser with the soil. • The Cultivion can also be used to dig furrows using the appropriate work tool attachment (ref. 83849). -
Page 7: Personal Safety
SOIL CULTIVATOR CULTIVION 58_80347-R 2.2.3. PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating the power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when using a power tool can result in serious personal injury. -
Page 8: Tool's End Of Life Management
58_80347-R 2.2.7. TOOL’S END OF LIFE MANAGEMENT When the tool reaches the end of its life, PELLENC keeps the end of life sheet of the equipment at disposal. The end of life sheet provides instructions for safely removing components. 2.3. SAFETY INSTRUCTIONS FOR THE SOIL CULTIVATOR CULTIVION Clear your work area before starting work. -
Page 9: Personal Protection Equipment
SOIL CULTIVATOR CULTIVION 58_80347-R 2.6. PERSONAL PROTECTION EQUIPMENT Equipment Wearing of Description Safety helmet Protec- tive visor Protec- Wear hand protection especially Recommended tive gloves when working on the cutting tool. When operating the machine, al- Robust, non- ways wear non-slip safety shoes. -
Page 10: Good Practices For Safe Working
58_80347-R 2.7. GOOD PRACTICES FOR SAFE WORKING • Always hold the rear handle of the Cultivion with your right hand, and the front handle with your left hand. • Keep your left arm straight for better control. • Use PELLENC working tools. -
Page 11: Description And Technical Characteristics
11. Joints clip Front handle 12. Power cord Note The handle of your Soil Cultivator Cultivion is com- mon to several different PELLENC tools. The part shown opposite is a safety button locked in the pressed position. No action on your part is necessary. -
Page 12: Contents Of The Kit
SOIL CULTIVATOR CULTIVION 58_80347-R 3.2. CONTENTS OF THE KIT Check that the box contains the following items: Name reference The Soil Cultivator Cultivion 79775 One 22 cm weeding blade + clip joints 84125 A front handle assembly 73861 A blade mounting part... - Page 13 SOIL CULTIVATOR CULTIVION 58_80347-R The measured sound level and the guaranteed sound power level were measured according to a procedure in accordance with Directive 2000/14 / EC Annex V. CULTIVION soil cultivator Speed 1 (705 strokes/min) Speed 4 (885 strokes/ min)
-
Page 14: Commissioning
SOIL CULTIVATOR CULTIVION 58_80347-R 4. COMMISSIONING Caution Before any maintenance intervention on the tool: Check that the battery is turned off. Depending on the battery model, turn off either via the push button or via the on/off switch (stop position is "0") located on the battery. -
Page 15: Fitting The Tool Head
SOIL CULTIVATOR CULTIVION 58_80347-R 4.2. FITTING THE TOOL HEAD Caution Always wear protective gloves when handling the tool. 4.2.1. MOUNTING THE BLADE ASSEMBLY Insert the two nuts (15) in the spaces provided in the mounting part (16). Position the weeding blade (10) on the mounting part (16). -
Page 16: Fitting The Blade Mounting Assembly Onto The Tool
SOIL CULTIVATOR CULTIVION 58_80347-R 4.2.2. FITTING THE BLADE MOUNTING ASSEMBLY ONTO THE TOOL Once fitted together, position the blade mounting as- sembly (9) on the shaft (18), aligning the mark on the mounting part (16) with the "0" mark on the head casing(19). -
Page 17: Fitting The Battery On The Harness
SOIL CULTIVATOR CULTIVION 58_80347-R 4.3. FITTING THE BATTERY ON THE HARNESS To mount the battery on your harness, refer to the mounting instructions provided with your harness. Important After mounting, the battery must be solidly attached and secured on your harness. If this is not the case then the mounting needs to be re-checked. -
Page 18: Connecting Pellenc Batteries To The Tool
SOIL CULTIVATOR CULTIVION 58_80347-R 4.5. CONNECTING PELLENC BATTERIES TO THE TOOL Important Always check the remaining battery-life before use. If necessary, recharge the battery using the charger. To prolong the life of the connectors, it is advisable to protect them when they are disconnected. Avoid leaving the connectors in contact with abrasive or dirty surfaces, or subjecting them to major impacts (falls). -
Page 19: 750 / 1200 / 1500 Ulib Batteries
SOIL CULTIVATOR CULTIVION 58_80347-R 4.5.2. 750 / 1200 / 1500 ULIB BATTERIES Make sure that the battery is correctly fitted on the harness, see Section 4.3, “Fitting the battery on the harness”. Ensure that the quick connector (23) is properly con- nected to the battery. -
Page 20: Alpha 520 Battery
SOIL CULTIVATOR CULTIVION 58_80347-R 4.5.3. ALPHA 520 BATTERY Make sure that the battery is correctly fitted on the harness, see Section 4.3, “Fitting the battery on the harness”. Ensure that the quick connector (23) is properly con- nected to the harness. -
Page 21: Using The Tool
Hold the tool by the rear handle (1) and the front handle (6). Be sure to check that the tool is not touching any- thing. The Cultivion is in ‘start’ position. Important Do not work anywhere other than in soil. Never disconnect the battery cable without checking that the battery switch is at 0. -
Page 22: Start-Up In Continuous Mode
Release the drive trigger (4) to stop the tool. 5.5. START-UP IN CONTINUOUS MODE The Cultivion has a continuous mode which allows the user to work with the tool at constant speed without having to keep the trigger pressed. For improved stability hold the machine in its oper- ating position, with the tool attachment held off the ground. - Page 23 SOIL CULTIVATOR CULTIVION 58_80347-R Keep the drive trigger (4) pressed. While holding down the activation trigger (4), turn on the battery. Wait until the On.Off LEDs (3) light up on the Cul- tivion, and release the drive trigger (4). The tool is now ‘On’ and ready to operate in “con- tinuous”...
-
Page 24: Speed Selector
Always start the motor before bringing the tool head into contact with the ground. Note Let the Cultivion do the work by drawing it towards you without over-forcing. 5.6. SPEED SELECTOR Your Cultivion has a speed selector (2) on the rear han- dle. -
Page 25: Adjusting The Tool Head Tilting Positions
SOIL CULTIVATOR CULTIVION 58_80347-R 5.7. ADJUSTING THE TOOL HEAD TILTING POSITIONS Warning Always disconnect the battery before working on the tool. Wear protective gloves when handling the tool. Remove the assembly: tightening screw (22), wash- er (21) and nut (20) using a 5 mm hex. wrench. - Page 26 SOIL CULTIVATOR CULTIVION 58_80347-R Fit the washer (21) and screw (22). Tighten the screw (22) using a 5 mm hex socket and a torque wrench. Important Tightening torque: 12 N.m Note The correct setting is reached when the machine moves back with almost no effort by the user.
-
Page 27: Various Uses
The ideal working position is: left arm extended, left hand on the front handle, right arm slightly bent, right hand on the rear handle. 5.8. VARIOUS USES The Cultivion is a soil cultivating or hoeing machine, that enables: • aerating and cultivating the soil •... -
Page 28: Maintenance
Checking working tool tightening (see Section 6.3, “Checking the work tool tightening”) Have the tool inspected by an authorised distributor Important Have your Cultivion overhauled every 200 hours or at least once a year. 6.2. CLEANING THE TOOL • Clean the tool with a damp cloth. Important... -
Page 29: Checking The Work Tool Tightening
SOIL CULTIVATOR CULTIVION 58_80347-R 6.3. CHECKING THE WORK TOOL TIGHTENING Warning Always disconnect the battery before working on the tool. Battery is off, check the screw tightening torque: • (22): tightening torque 12 N.m. • (17): tightening torque 6 N.m. - Page 30 SOIL CULTIVATOR CULTIVION 58_80347-R Remove the assembly: tightening screw (22), wash- er (21) and nut (20) using a 5 mm hex. wrench. Remove the tool head attachment from the shaft. Remove the tightening screws (17) using a 5 mm hex wrench.
-
Page 31: Incidents And Troubleshooting
SOIL CULTIVATOR CULTIVION 58_80347-R 7. INCIDENTS AND TROUBLESHOOTING... - Page 32 SOIL CULTIVATOR CULTIVION 58_80347-R...
-
Page 33: Storage And Transport
SOIL CULTIVATOR CULTIVION 58_80347-R 8. STORAGE AND TRANSPORT Caution Wear protective gloves when handling the tool. 8.1. STORAGE Switch off the tool (see Section 5, “Using the tool”). Disconnect the battery. Store the battery (refer to the battery operating in- structions). -
Page 34: Accessories And Consumables
SOIL CULTIVATOR CULTIVION 58_80347-R 9. ACCESSORIES AND CONSUMABLES 9.1. ACCESSORIES INCLUDED For a list of accessories included with the tool, see Section 3.2, “Contents of the kit”. 9.2. OPTIONAL ACCESSORIES Name reference Working tool with 220 mm width blade. 79779 Used for deep working of the soil Working tool with 160 mm width blade. - Page 35 SOIL CULTIVATOR CULTIVION 58_80347-R Name reference Working tool with 80 mm wide blade. 100422 Used for digging between plants, in confined spaces. Its size helps reduce vibrations. Quick connector adapter 57262 9-point quick-connect power cord + 1/4 turn 57238 plate...
-
Page 36: Consumables
SOIL CULTIVATOR CULTIVION 58_80347-R Name reference Alpha long 9-point quick-connect power cord 57248 10 m extension power cord 100994 9.3. CONSUMABLES Name reference Cultivion blade attachment kit. 101003... -
Page 37: Warranties
The warranty is fully integral to the product sold by PELLENC. 10.1.2.1.2. SPARE PARTS The commercial warranty also covers original PELLENCspare parts, excluding labour and to the exclusion of certain... -
Page 38: Paid After-Sales Service
PELLENC Products are guaranteed under the commercial warranty as from delivery to the customer for a period of two (2) years for products connected to a PELLENC battery, and for a period of one (1) year for other PELLENC products. - Page 39 Paid after-sales service also covers original PELLENC spare parts, excluding labour and outside the legal and commercial warranty period. In case of replacement of original PELLENC spare parts in the context of after-sales service, said latter are covered by a warranty of one year as from the installation date.
-
Page 40: Compliance Statements: Cultivion
SOIL CULTIVATOR CULTIVION 58_80347-R 11. COMPLIANCE STATEMENTS: CULTIVION 11.1. STATEMENT OF COMPLIANCE: CULTIVION MANUFACTURER/ENTITY AUTHORISED TO COM- PELLENC PILE THE TECHNICAL FILE ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) We hereby declare that the machine referred to below as: GENERIC DENOMINATION... -
Page 41: Declaration Of Conformity
SOIL CULTIVATOR CULTIVION 58_80347-R 11.2. UK DECLARATION OF CONFORMITY : CULTIVION MANUFACTURER / ENTITY AUTHORIZED TO COMPILE THE PELLENC TECHNICAL FILE ADDRESS Quartier Notre-Dame - 84120 Pertuis (France) We hereby declare that the machine referred to below as: GENERIC DENOMINATION... - Page 44 PELLENC Quartier Notre Dame - 84120 Pertuis (France)
