Description
These test leads allow you to make multiple measurement connections, depending on your testing needs. There
are three different types of probe tips included with the test leads:
• Standard probe (quantity: 2)
• Needle probe (quantity: 2)
• Spring hook (quantity: 2)
These test leads should only be used by qualified personnel who recognize shock hazards and
are familiar with the safety precautions required to avoid possible injury.
The test lead's ratings may be greater than those of the instrument. Do not exceed the ratings
of the instrument. Also, do not exceed the maximum signal levels of this accessory (as defined
in the Characteristics paragraph) or any attached instrument.
Inspect the probes, lead insulation, and insulating sheaths for wear, cracks, or breaks before
each use.
For maximum safety, never touch or change the leads or power connections when power is
applied to the circuit under test.
Always turn off test system power and discharge all capacitors before connecting or
disconnecting the leads.
To prevent exposed voltages or shorting between connections, make sure both ends of the
cables are properly connected before applying power.
071339300 / November 2014
General Purpose Test Lead Information

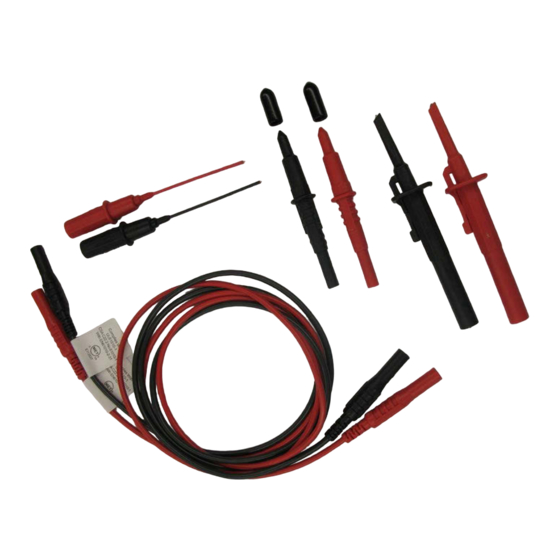

Figure 1: Model 1756 General Purpose Test Lead Kit
*071339300*
Model 1756 Test Lead Kit
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix Keithley 1756
Summary of Contents for Tektronix Keithley 1756
- Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com Model 1756 Test Lead Kit General Purpose Test Lead Information Description These test leads allow you to make multiple measurement connections, depending on your testing needs. There are three different types of probe tips included with the test leads: •...
- Page 2 Model 1756 Test Lead Kit Characteristics Standard probe specifications Characteristic Specification Category Maximum voltage 1000 V II and III Maximum current 20 A Needle probe specifications Characteristic Specification Category Maximum voltage 1000 V Maximum voltage 600 V Maximum current 10 A Spring hook specifications Characteristic Specification...
- Page 3 Model 1756 Test Lead Kit Dimensions Standard probe: Figure 2: Model 1756 standard probe dimensions Needle probe: Figure 3: Model 1756 needle probe dimensions Spring hook probe: Figure 4: Model 1756 spring hook dimensions 071339300 / November 2014...
- Page 4 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 5 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories, as defined in the specifications and operating information, and as shown on the instrument or test fixture panels, or switching card.
