Summary of Contents for Adexa ALTAY900

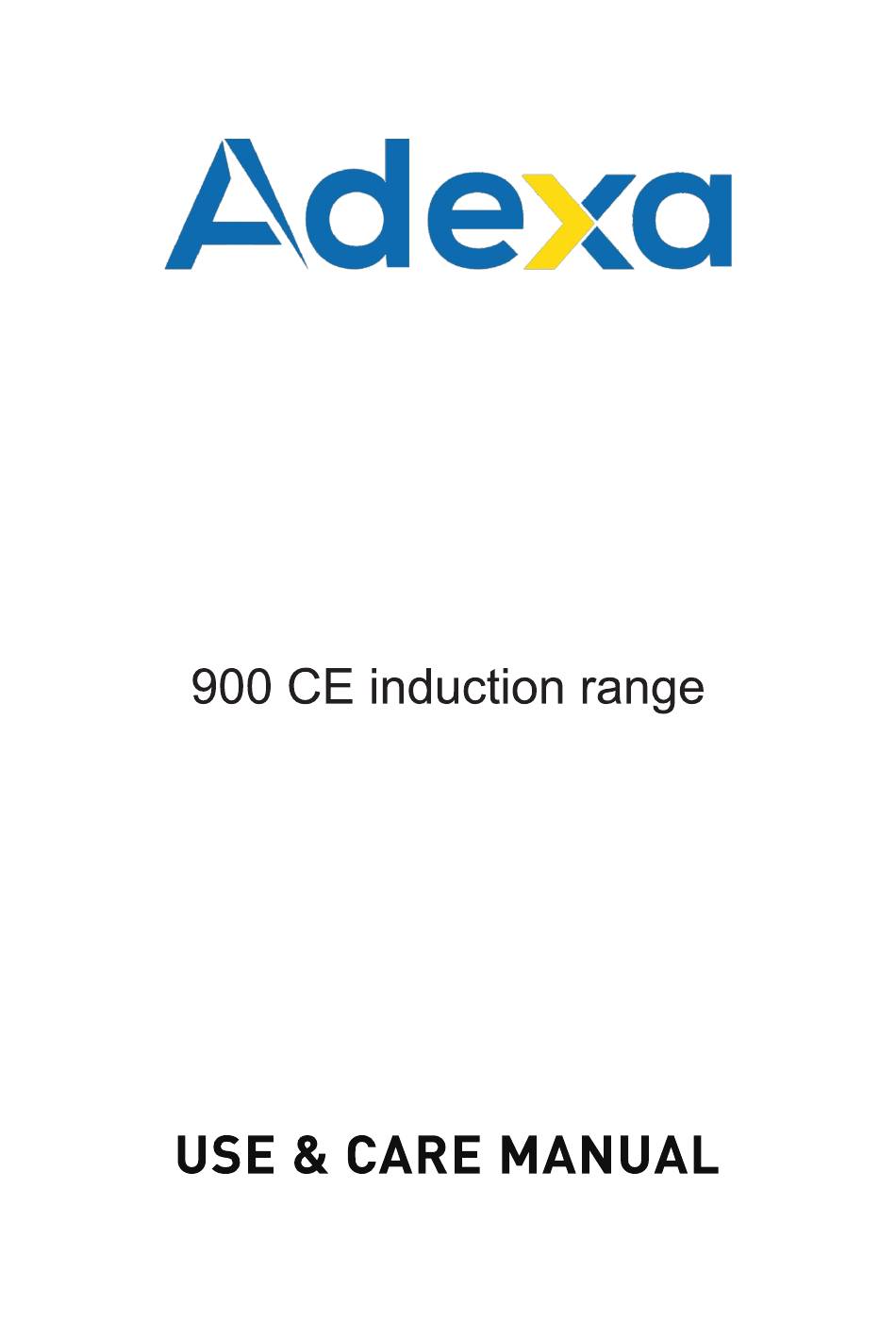

- Page 1 ALTAY900...
-
Page 2: Table Of Contents
Table of contents Instruction for the use - Installation advice ..................................... Dear customer 1.Product overview ..................................... 2.Use of the hob ..................................... 3.Multifunction oven ..................................... 9~13 4.Cleaning and maintenance ..................................... 13~14 5.Maintenance ..................................... 14~17 6. Installation ..................................... 17~20... -
Page 3: Instruction For The Use - Installation Advice
Instruction for the use - Installation advice Descriptions and illustrations in this book let are simply given as an indicative. The manufacturer reserves the right , considering the characteristics of the models described here at any time and without notice to make eventual necessary modifications for their construction or for commercial needs. - Page 4 Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around with in easy reach of children, as these may cause serious injuries. Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the appliance.
- Page 5 First use of the oven Warning It is advised to follow these instructions: Take care NOT to lift the cooker by the door handle. Caution Furnish the interior of the oven. Switch on the empty oven on max to eliminate The cooking process has to be supervised.
-
Page 6: Product Overview
1.Product overview 1.1 Hob elements... - Page 7 1.2 Notes on using the touch controls The controls respond to touch, so you don't need to apply any pressure. Use the ball of your finger, not its tip. You will hear a beep each time a touch is registered. Make sure the controls are always clean, dry and that there is no object ( e.g.
-
Page 8: Use Of The Hob
2.Use of the hob 2.1 Starting to cook Press the ON/OFF button. After switching on, a signal tone sounds, all displays light up for about one second and show .The hob is in standby mode. Now place suitable cookware centrally on the desired coo-king zone(s). Make sure that the surface of the hob and the bottom of the cookware are clean and dry! Touch the selection key of the desired cooking zone. - Page 9 2.2 The booster function With the booster function you can maximize the power of a cooking zone for 5 minutes. Activating the booster function Press the selection control of the cooking zone for which you want to activate the booster. Press the booster key.The power of the cooking zone is maximized;...
- Page 10 2.4. Using the timer function Setting the timer with automatic switch-off of one or more cooking zone(s). Select the desired cooking zone with the corresponding selection control. Then press the Timer key. The timer display will show "30". As long as the tens digit is flashing, you can adjust it by using the slider. After 3 seconds without further input, the setting is accepted and the ones digit starts flashing.
-
Page 11: Multifunction Oven
3 Multifunction oven Warning The oven door becomes very hot during operation. Keep children away. 3.1 General features As its name indicates, this is an oven that presents particular features from an operational point of view. In fact, It is possible to insert 8 different programs to satisfy every cooking need. The 8 positions, thermostatically controlled, are obtained by 4 heating elements which are: Bottom element Top element... - Page 12 Function Name Default time Default temperature Defrost 3 hour 70 ℃ Dewatering 3 hour 30 ℃ Ferment 3 hour 30 ℃ Keep warm 3 hour 60 ℃ Sous Vide 3 hour 55 ℃ Pizza 3 hour ℃ Air fry 3 hour 220 ℃...
- Page 13 1-The movement of the light indicates that the oven is running. If the running light does not move, it indicates that the oven is not working or is suspended. 2 and 4 The Function mode area is selected using a Function knob that indicates the selected function mode when the icon is lit.
- Page 14 Preheat After the appointment is completed, you can click the function knob to start the set program and start working. At this time, the corresponding icons will be displayed in the function area and status area, and the outer frame of the oven-shaped icon will be displayed.
-
Page 15: Cleaning And Maintenance
Note: Steam Clean and Self Clean do not allow temperature and time Settings: Cooking function operation: Revolving around "function/start" knob (left the oven knobs) to the oven function, display shows the default cooking time and temperature, the user can rotate around "temperature/time" button (right oven knobs) change the temperature and cooking time, rotating around to the required temperature, press the right oven knobs set hours value, according to the right oven knobs set the minutes value again, To complete the temperature and cooking time Settings, press the right oven knob in turn to reset the temperature, hour value and minute value Settings. -
Page 16: Maintenance
Make sure that the hob is not hot. Scrubbing Everyday soiling of the Switch off the hob. Apply a cooktop cleaner while sponges, some nylon sponges and harsh/ glass surface( the glass is still warm (but not hot!) Clean the glass abrasive cleaning agents scratch the glass. - Page 17 Disconnect the hob from the power supply for Fluctuations in the power supply system about 20 minutes (switch off the fuse) and then switch it on again. Malfunction/Display of an error code Note down the error code,disconnect the hob Technical error/ Code meaning see corresponding from the power supply and contact a certified table electrician.
- Page 18 Contact the customer service or a certified Indicates that the irrigation fan does not rotate. elecrician. 5.4 Replacing the oven lamp Warning Ensure the appliance is switched off and disconnected from the electrical power supply before replacing the lamp to avoid the possibility of electric shock.
- Page 19 5.7 After cleaning, replace the inner glass pane When replacing the inner glass pane, make sure that: You replace the pane correctly. The pane must be in the position described below in order to fit into the door and to ensure that the appliance operates safely and correctly.
- Page 20 6.1 Moving the cooker Warning Heavy appliance Crushing hazard Position the appliance into the cabinet cut-out with the help of a second person. Warning Pressure on the open door Risk of damage to the appliance Never use the oven door to lever the appliance into place when fifitting. Avoid exerting too much pressure on the oven door when open.
- Page 21 6.2 Inserting the hob The hob must be installed by a qualified electrician. A circuit breaker (fuse) providing full disconnection from the mains power supply must be integrated into the permanent wiring and comply with local regulations. This fuse must be tested and have at least 3 mm clearance around all poles ( or around all active [phases] conductors, if provided for in the regulations).
- Page 22 Warning This appliance must be earthed. Important Before effecting any intervention on the electrical parts of the appliance, the connection to the network must be interrupted. Warning If the power supply cable is damaged, it must be replaced only by an authorised service agent in order to avoid a hazard.
- Page 23 WARRANTY AND SERVICE For full warranty details on this product,please contact: EMAIL: service@adexa.co.uk TEL: (+44 ) 01788222410...
