RGR36X RGR24X

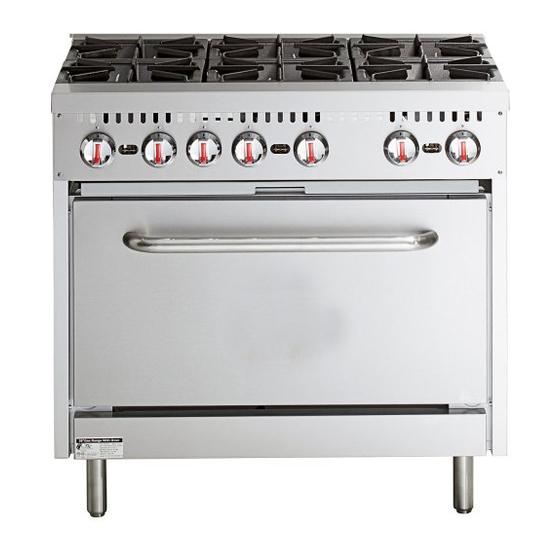

GAS RANGES WITH OVEN
Installation and operation manual
Models:
Page 1
GB
Advertisement
Table of Contents
Related Manuals for Adexa RGR36X
Summary of Contents for Adexa RGR36X
- Page 1 Models: RGR36X RGR24X GAS RANGES WITH OVEN Installation and operation manual Important: You are advised to read these instructions first before installation commences. This manual must be handed to the end user after installation and commissioning. These instructions are only valid if the country code appears on the appliance. If the code does not appear on the appliance, refer to the technical instructions for adapting the appliance to the conditions for use in that country.
-
Page 3: Table Of Contents
Index Technical specifications………………………………………………………… 4 1. General information ………………………………………………....… 7 2. Safety …………………………………………………………....………7 Using the appliance safely Safety instructions in case of malfunction Additional prohibitions (hazardous procedures) Disposing of the appliance 3. Functional description……………………………………………....…8 Application of the appliance Prohibited use Construction Construction features Cooking surfaces Electric oven... - Page 4 5. Adjustment instructions………………………………………....… 13 Replacing open burner nozzles Replacing the nozzle of open burner pilot flames Adjusting minimum output Functional check 6. Operating instructions……………………………………………....15 Before using the appliance Preparing the appliance for use Using the appliance Operating controls Turning the open burners on and off Turning on the electric oven After-use care Cleaning...
-
Page 5: Technical Specifications
Technical specifications a. Installation drawings RGR36X b. Technical specifications table Gas Range orifice size & heat input Dimension（mm） Model G25.3 29mbar 37 mbar 50 mbar 20 mbar 25 mbar 1.3mm 1.2mm 1.1mm 1.9mm 1.9mm RGR36X 914*855*1524 36kW 36kW 39kW 36kW 36kW 1.3mm... - Page 6 Drawing d. Exploded RGR36X Page 5...
- Page 7 Part list Part Name Part Name Chimney assy ￠10 nut Guide trough for rear protect plate φ10 oval clamp rear plate assy orifice connector grate orifice fixation plate short burner assy orifice stove body assy orifice connector nut left side plate ￠8 nut M14X1.25 oven thermostat knob scale ￠8 clamp...
-
Page 8: General Information
1. General information Read the instructions in this manual carefully, as they contain important information on how to install, use and service the appliance safely, properly, and effectively. Keep this manual in a safe place so that it can be used as reference by other operators of the appliance. This appliance should be installed following the instructions provided by the manufacturer and in compliance with all applicable ... -
Page 9: Prohibited Use
3.2.2 Cooking surfaces 1. Unit RGR24X with 4 stabilized-flame gas burners made of cast iron and controlled by pilot flames; Unit RGR36X with 6 stabilized-flame gas burners made of cast iron and controlled by pilot flames; High-to-low output control; ... -
Page 10: Installation
The user can set the temperature according to different food. It is recommended that the normal working temperature should be 180--250℃. It would take approximately 22~26 minutes for the oven temperature to reach 250℃. When the temperature reached the pre-set temperature, the thermostat would cut-off the power supply automatically. ... -
Page 11: Preparing For Installation
4.4 Preparing for installation Check that the appliance is pre-set to use the gas family available at the place of use. If the available gas is different, you will need to "Adjustment instructions" convert the appliance to use with other type of gas. For directions, please refer to section below. - Page 12 Table 1: gas categories and pressure values MAXIMUM MINIMUM PRESSUR APPLIANCE RATED PRESSURE COUNTRY PRESSURE CATEGORY (mbar) (mbar) (mbar) IT GB CH CY CZ CZ ES FR LT SK PT IE GR AT BE DE IT CH NO PT ES SE DE GR AT I3B/P 42.5...
- Page 13 1. Gas ramp 2. Pressure port 3. Pressure port sealing screw 4.12 Gas technical specifications Technical specifications table " " The appliance should be started up at its rated output with the nozzles shown in . All the necessary nozzles are provided in a small bag together with the appliance. The nozzles of the main burners are marked in hundredths of mm, while those of pilot flames have a reference number.
- Page 14 Gas Type Oven Pilot Oven Nozzle NG Pilot Nozzle RGR36X 0.4mm 0.25mm RGR24X 0.4mm 0.25mm Note: When replacing the nozzles, please follow the requirements described in the table. If the gas type is not listed in the table, please contact the manufacturer or supplier directly.
- Page 15 Before cooking food for the first time, we recommend cleaning the appliance thoroughly, and especially the oven cooking chamber. Remove all packaging materials and adhesive films from the appliance very carefully. Before cleaning the stainless steel parts, make sure that the detergent you intend to use does not contain any abrasive substances and that it is suitable for stainless steel surfaces. Wipe the appliance dry with a clean cloth.
- Page 16 NOTICE: An unpleasant smell the very first time it is operated can be considered as completely normal. In fact, this is due to the overheating of insulating materials and residues of oil used during the metal working process. The first time you turn the oven on, don’t place any food in the cooking chamber and set the temperature to 330°C until the smell disappears.
- Page 17 Rust Should you need to eliminate rust stains, contact manufacturers of industrial detergents to find a detergent that can remove such stains. Industrial descaling products can also be used to that end. After rubbing off the stain and rinsing with clean water, an alkaline detergent may be required to neutralize any acid compounds left on the surface.
- Page 18 Aforementioned failures are just for reference. If any failure occurs, please stop using and inform professional technician to check and repair! Page 17...
- Page 19 ADEXA DIRECT LIMITED GROUND FLOOR UNIT 1 214 PURLEY WAY CROYDON CR0 4XG LONDON UNITED KINGDOM service@adexa.co.uk www.adexa.co.uk +44 1483 931040 EC Declaration of Conformity Adexa Direct Limited declares that: Equipment Type: Gas ranges with oven Model: RGR24X, RGR36X Imported By: ADEXA DIRECT LIMITED GROUND FLOOR UNIT 1 214 PURLEY WAY CROYDON CR0 4XG LONDON, UNITED KINGDOM Serial Number: Year of Manufacture: Brand: ADEXA ...
