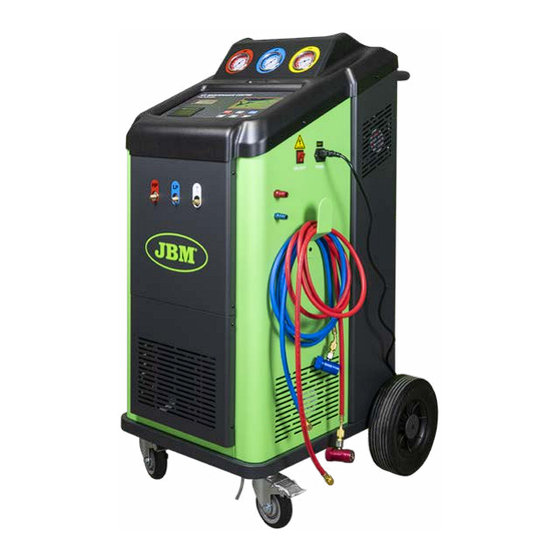

Air conditioning charging machine
Hide thumbs Also See for 54291:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

MANUAL DE INSTRUCCIONES · INSTRUCTION MANUAL · GUIDE D'UTILISATION · BEDIENUNGSANLEITUNG ·
 MANUALE D'USO · MANUAL DE INSTRUÇÕES · MANUAL DE INSTRUCŢIUNI · HANDLEIDING ·
ÜZEMELTETÉSI UTASÍTÁS · РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ · INSTRUKCJA OBSŁUGI
54291
MÁQUINA PARA CARGA DE AIRE ACONDICIONADO...........................2
AIR CONDITIONING CHARGING MACHINE..........................................12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 54291 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JBM 54291

  • Page 1 MANUAL DE INSTRUCCIONES · INSTRUCTION MANUAL · GUIDE D’UTILISATION · BEDIENUNGSANLEITUNG ·  MANUALE D’USO · MANUAL DE INSTRUÇÕES · MANUAL DE INSTRUCŢIUNI · HANDLEIDING ·  ÜZEMELTETÉSI UTASÍTÁS · РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ · INSTRUKCJA OBSŁUGI  54291 MÁQUINA PARA CARGA DE AIRE ACONDICIONADO......2 AIR CONDITIONING CHARGING MACHINE..........12...
  • Page 2: Instrucciones De Seguridad

    REF.54291 MANUAL DE INSTRUCCIONES LISTADO DE PARTES PRESENTACIÓN DEL PRODUCTO Esta máquina ha sido diseñada para hacer trabajos de limpieza, recuperación de refrigerante, vacío, inyección de aceite y recarga de refrigerante en el sistema de aire acon- dicionado del vehículo.
  • Page 3: Primer Uso

    REF.54291 FUNCIONAMIENTO Limpieza/recuperación Use esta función para limpiar el sistema PRIMER USO de A/C. Seleccione el idioma (Inglés/Español) y presione ENTER. Una vez realizada la limpieza, la máquina Seleccione el tipo de refrigerante que desea utilizar. recuperará el aceite y el refrigerante del sistema de A/C.
  • Page 4: Presentación Del Producto

    REF.54291 PRESENTACIÓN DEL PRODUCTO en modo de vació, no presione el botón para aceite usado. Podría provocar una explosión de las botellas. Usando esta función podrá limpiar el aceite del sistema de Ponga aceite nuevo en la botella de aceite nuevo.
  • Page 5: Modo Automático

    REF.54291 MODO AUTOMÁTICO Introduzca el código del filtro usando las teclas ARRIBA/ ABAJO. Utilice esta función para que la máquina realice automática- mente las operaciones seleccionadas. Primero, usted debe introducir los parámetros y a continua- ción la maquina realizará todas las operaciones automáti- camente.
  • Page 6: Configuración Del Sistema

    REF.54291 Hay dos maneras para llenar el tanque de refrigerante. Componente Peso del objeto Método 1 Tanque principal 10-20kg Conecte un nuevo tanque con refrigerante al puerto de baja presión de la máquina. Botella 1-3kg Nota: Debe conectar la manguera en el orificio de líquido del tanque.
  • Page 7 REF.54291 - Horas de trabajo del compresor - Tapones para sellado (x2) - Horas de trabajo de la bomba (total) - Adaptador para autolimpieza - Horas de trabajo de la bomba (ciclo) - Cable de potencia - Número de veces que se ha usado la máquina Información del taller...
  • Page 8: Parts List (Exploded View)

    REF.54291 PARTS LIST (EXPLODED VIEW) Parts diagram Name Quantity High-pressure manometer,35bar Printer Weighing sensor Hexagonal screws Condenser assembly Compressor components (220V 50/60Hz) Control module assembly The ship type switch Power outlet Low pressure gauge15bar · 8 ·...
  • Page 9 REF.54291 Parts diagram Name Quantity Cross recessed flat head screws Cross recessed pan head screws Fan, with iron mesh, 120*120*38mm Dry filter Vacuum pump, AC220V-50/60HZ Used oil bottle assembly New oil bottle assembly Metal button switch Blister cover · 9 ·...
  • Page 10 REF.54291 Parts diagram Name Quantity Drive plate Alarm indicator High pressure hanging pipe joint - Red-R134a Low pressure hanging pipe joint - Blue-R134a Hexagon socket head cap screws, M6*25 Load cell 30kg, with terminal Cylinder, r134a Fan, DC12V Window Component...
  • Page 11 REF.54291 Parts diagram Name Quantity Cabinet components Hexagon socket head cap screw, m6*12 Flat gasket, 6*18*1.5 Hexagon nut, M6 Cross recessed outer hexagon bolt, m6*25 Fan, with iron mesh, 150*150*50mm, AC220V Cross recessed pan head screw, m4*40 Switching Mode Power Supply...
  • Page 12: Parts List

    REF.54291 INSTRUCTION MANUAL PARTS LIST PRODUCT’S PRESENTATION This machine is designed for flushing, refrigerant recovery, vacuum, oil injection and refrigerant recharging in the vehi- cle’s air condition system. It is fully automatic. Once the configuration parameters are set, the machine will do all the processes without any need to pay attention to it.
  • Page 13: Operation

    REF.54291 OPERATION Flushing/recovery Use this function to flush the A/C system. FIRST USE After flushing, the machine will automatica- Select the language (English/Spanish) and press ENTER. lly recover oil and refrigerant from the A/C Set the refrigerant type: select one you will use.
  • Page 14 REF.54291 FLUSHING/RECOVERY Otherwise it could cause an explosion of the bottles. Using this function, you will be able to clean out the oil of the Pour new oil into the new oil bottle. A/C system and recover the refrigerant in the system.
  • Page 15: Automatic Mode

    REF.54291 AUTOMATIC MODE Enter the code of the dry-filter by pressing UP/DOWN keys. Using this function, the machine will perform automatically the selected operations. First, you need to set the parameters and then the machine will go through all the processes automatically.
  • Page 16: System Configuration

    REF.54291 Vacuum pump oil Make sure that the oil level in the vacuum pump is always enough. You can check the oil level on the side of the machine. Open the valve of the new tank. In the System function menu, select the supply main tank function.
  • Page 17 REF.54291 Servicer info Here you can set and check the servicer and dealer information. Press at the same time to setup. Name Quantity Use the keys to select. High-pressure manometer,35bar Printer Use the keys to set the content. Weighing sensor...
  • Page 18 REF.54291 PARTS LIST (EXPLODED VIEW) Parts diagram Name Quantity High-pressure manometer,35bar Printer Weighing sensor Hexagonal screws Condenser assembly Compressor components (220V 50/60Hz) Control module assembly The ship type switch Power outlet Low pressure gauge15bar · 18 ·...
  • Page 19 REF.54291 Parts diagram Name Quantity Cross recessed flat head screws Cross recessed pan head screws Fan, with iron mesh, 120*120*38mm Dry filter Vacuum pump, AC220V-50/60HZ Used oil bottle assembly New oil bottle assembly Metal button switch Blister cover · 19 ·...
  • Page 20 REF.54291 Parts diagram Name Quantity Drive plate Alarm indicator High pressure hanging pipe joint - Red-R134a Low pressure hanging pipe joint - Blue-R134a Hexagon socket head cap screws, M6*25 Load cell 30kg, with terminal Cylinder, r134a Fan, DC12V Window Component...
  • Page 21 REF.54291 Parts diagram Name Quantity Cabinet components Hexagon socket head cap screw, m6*12 Flat gasket, 6*18*1.5 Hexagon nut, M6 Cross recessed outer hexagon bolt, m6*25 Fan, with iron mesh, 150*150*50mm, AC220V Cross recessed pan head screw, m4*40 Switching Mode Power Supply...
  • Page 22 REF.54291 54291 www.jbmcamp.com JBM CAMPLLONG, S.L.U. CIM La Selva - Ctra. Aeropuerto km. 1,6 Nave 2.2 - CP 17185 Vilobí d’Onyar - GIRONA jbm@jbmcamp.com Tel. +34 972 405 721 Fax. +34 972 245 437 · 22 ·...
