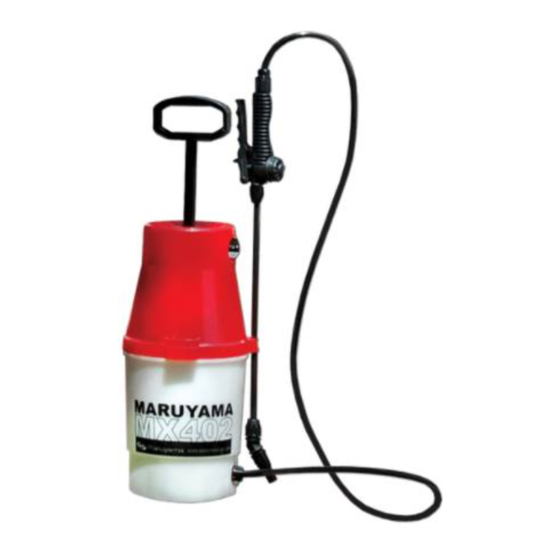

Maruyama MX402 Quick Start Manual

MARUYAMA RESERVES THE RIGHT TO CHANGE PRODUCT SPECIFICATIONS WITHOUT NOTICE.
842521 AN-8 NITRILE GASKET
101N
PARTS LIST
842522 VALVE SPRING
105
842523 ELBOW
120
842524 MIXER VALVE
121
842525 1mm. DIAMETER NOZZLE
122
842526 CONIC NUT
127
842527 16x2 FLAT GASKET
131
842528 AN-5 NITRILE GASKET
136N
842529 10mm DIAMETER CONE
138
842530 BLACK TUBE LANCE
141
842531 40mm X 1.50 m. STRAP
151
842532 HANDLE
156
842533 COVER SCREW
157
842534 CHAMBER COVER
158
842535 AN-30 NITRILE GASKET
159N
842536 CHAMBER
160
842537 NECK SEAL
164
842538 VITON CHAMBER VALVE
165
842539 2-104 VITON GASKET
168V
842540 NOZZLE NUT
191
842541 HOSE NUT
195
842542 HOSE BUSHING
196
842543 HANDLE BODY
530
842544 BUTTON
531
842545 BUTTON BOLT
532
842546 HANDLE CLIP
533
842547 HANDLE NUT
534
842548 HANDLE FILTER
535
842549 HANDLE SPRING
536
842550 SHUTTER
537
842551 2-121 NITRILE GASKET
538
842552 2-109 VITON GASKET
539
842553 2-107 VITON GASKET
540
842554 ELBOW WITH NOZZLE
726
842555 TUBE WITH NUTS
728
842556 COMPLETE CHAMBER
739
842557 SEALING VALVE
743
842558 COMPLETE HANDLE
750
842559 COMPLETE SHUTTER
751
842560 COMPLETE HOSE
757
842562 7 LITER TANK
785
842564 COMPLETE LANCE
795
842642 REPAIR KIT (842521, 842528,
1415

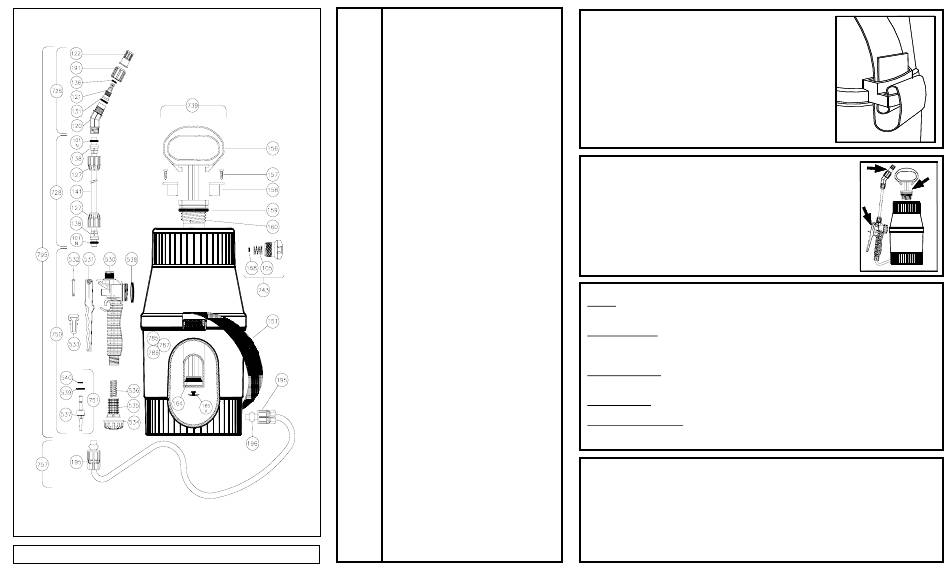

START-UP
Place strap on both sides of the bottle and follow the drawing. Fit the hose
(757) to the bottom of the tank and to the lance handle (750) firmly
adjusting the nuts (195). Place one end of the tube (728) on the handle
assembly (750) and the other end on the elbow assembly (726). Once the
tank is filled, screw in the chamber assembly (739) to the tank using the
grip (156). Pressurize by pumping 25 to 30 times with the pump handle
(156). In case that the maximum pressure is exceeded, the sealing valve
will activate (743) releasing excess pressure. To work, pump the handle
(750) and adjust the nozzle (122) rotating to one side or another to
achieve the desired atomization. During usage, pressure will diminish and
additional pumping will be required.
MAINTENANCE – MORE FREQUENT DAMAGES
Clean the equipment and its liquid circuits, including the filter at the completion
of each working day. Cleaning should be done with clean water or as small
amount of household detergent to the tank.
NEVER LEAVE THE EQUIPMENT PRESSURIZED OR WITH CHEMICAL
IN THE TANK.
Avoid gaskets drying out or add some drops of oil (non edible) in the parts
indicated in the drawing. If the nozzle is obstructed, (122) clean it with a stream
of water or non metallic instruments taking care that the outlet hole is not
SAFETY STANDARDS AND HANDLING OF CHEMICAL SPRAY PRODUCTS
Storage. Place the product in an exclusive, ventilated and locked storeroom with key box, out of the
reach of children and pets. Store the product in its original packing. Use the same room to store mixing,
preparation and application utensils.
Product Preparation. Verify that that the product and treatment equipment are not expired and are in good
condition. Read and follow the instructions provided in the products labels and manuals. Use proper utensils
for mixing and preparing and mark them correctly. After preparation, wash your hands and face. Dispose
properly of empty packages and leftover products.
Treatment Procedure. Use suitable protective equipment. Avoid contact with the skin and eyes and, do not
eat, drink or smoke. Do not apply under windy conditions or against the wind. Avoid any product drifting into
adjacent land and crops. Avoid any drift into neighboring springs, rivers, streams, lakes, etc.
Cleanup After Use. Destroy empty packaging and bottles by burning or burying 1 ft/ 30 cm deep, away from
water (streams, wells). Clean all spray equipment thoroughly. Wash yourself and your clothes.
Advice in case of poisoning. Go to the doctor with the product label, or take the affected person to the
nearest hospital. Avoid use of home medicines and, in all cases wash the affected skin areas with plenty of
fresh water.
GENERAL PRECAUTIONS
Strictly follow recommendations and warnings on labels for products marked "dangerous" and
"poisonous. Comply with the application time and expiration date of each product. Avoid spraying in
extremely hot weather. Take precaution when spraying near electrical installations. Never use alkaline, acids,
flammable materials or those which may produce combustion processes. The sprayers are intended to be
used only with herbicides, insecticides and fungicides for plants. Do not expose them to the sunshine. These
sprayers must be safety tested at least annually by specialized personnel. At the time of manufacturing, the
842535, 842537, 842538, 842552,
manufacturer is aware of no harmful influences from the material of which the device is made. The sprayer
hose must be original equipment from the manufacturer. Do not substitute aftermarket components
842553)
