SIP (Industrial Products) Ltd
Limited Gelders Hall Road
Shepshed
Loughborough
Leicestershire
LE12 9NH
United Kingdom
For help or advice please
contact your distributor, or
sip directly on:
Tel.: 01509 500400 Email:
sales@sip‐group.com
or
customerservice@sip‐group.com
www.sip‐group.com
SIP 8" Bench Polisher / Buffer
SIP Code 07698
Advertisement
Table of Contents
Related Manuals for SIP 07698
Summary of Contents for SIP 07698

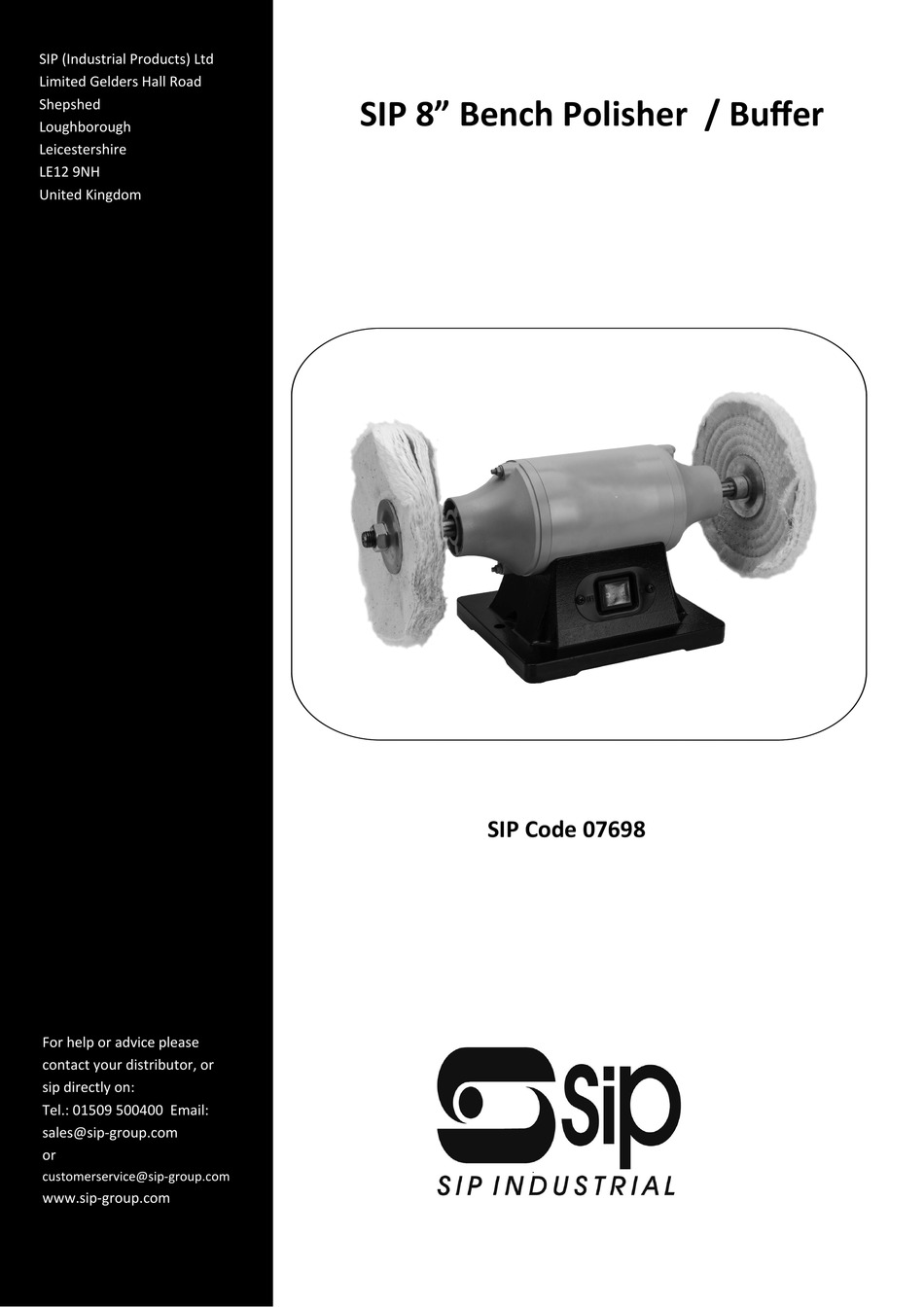

- Page 1 SIP (Industrial Products) Ltd Limited Gelders Hall Road Shepshed SIP 8” Bench Polisher / Buffer Loughborough Leicestershire LE12 9NH United Kingdom SIP Code 07698 For help or advice please contact your distributor, or sip directly on: Tel.: 01509 500400 Email: sales@sip‐group.com or customerservice@sip‐group.com www.sip‐group.com ...
- Page 2 2 ...
- Page 3 INDEX Page No. Descrip on 4. Safety Symbols Used Throughout This Manual 4. Safety Instruc ons 6. Guarantee 7. Ge ng to know your Bench Polisher 8. Electrical Connec on / Technical Specifica on 9. Opera ng Instruc ons 12. Maintenance 12. Cleaning & Storage 13. Exploded Drawing 14. Parts Informa on 15. UK & EU Declara on of Conformity 3 ...
-
Page 4: Safety Instructions
SAFETY SYMBOLS USED THROUGHOUT THIS Danger / Cau on: Indicates risk of personal injury and/or the possibility of damage. Note: Supplementary Informa on. Important: Please read the following instruc ons carefully, failure to do so could lead to serious personal injury and / or damage to the jack. SAFETY INSTRUCTIONS KNOW YOUR TOOL Read and understand the owners manual and labels affixed to the tool. Learn its applica on and limita ons as well as its specific poten al hazards. KEEP GUARDS IN PLACE. Keep in good working order, properly adjusted and aligned. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjus ng wrenches are removed from tool before turning it on. KEEP WORK AREA CLEAN. Clu ered areas and benches invite accidents. Make sure the floor is clean and not slippery due to wax and sawdust build‐up. AVOID DANGEROUS ENVIRONMENT. Don’t use power tools in damp or wet loca ons or expose them to rain. Keep work area well lit and provide ade‐ quate surrounding work space. KEEP CHILDREN AWAY. All visitors should be kept a safe distance from work area. MAKE WORKSHOP CHILD‐PROOF. Make workshop child‐proof with padlocks, master switches or by removing starter keys. USE PROPER SPEED. A tool will do a be er and safer job when operated at the proper speed. USE RIGHT TOOL. Don’t force the tool or the a achment to do a job for which it was not designed. 4 ... -
Page 5: Specific Safety Instructions
SAFETY INSTRUCTIONS CONT... WEAR CORRECT PPE. Do not wear loose clothing, gloves, neck es or jewellery (rings, watch) because they could get caught in moving parts. Non‐slip footwear is recommended. Wear protec ve hair covering to contain long hair. Roll up long sleeves above the elbows. ALWAYS WEAR SAFETY GLASSES. Always CE / UKCA approved wear safety glasses . Everyday eyeglasses only have impact resistant lenses, they are NOT safety glasses. Also use a face or dust mask if opera on is dusty. DON’T OVERREACH. Keep proper foo ng and balance at all mes. MAINTAIN TOOL WITH CARE. Keep tools sharp and clean for best and safest performance. Follow instruc ons for lubrica ng and changing accessories. DISCONNECT TOOLS. Before servicing, when changing accessories or a achments. AVOID ACCIDENTAL STARTING. Make sure the switch is in the ‘’OFF’’ posi on before plugging in. USE RECOMMENDED ACCESSORIES. Consult the manual for recommended accessories. Follow the instruc ons that accompany the accessories. The use of improp‐ er accessories may cause hazards. NEVER STAND ON TOOL. Serious injury could occur if the tool ps over. Do not store materials such that it is necessary to stand on the tool to reach them. CHECK DAMAGED PARTS. Before further use of a tool, the guard or other parts should be carefully checked to ensure that they will operate properly and perform their intended func on. Check for alignment of moving parts, breakage of parts, moun ng, and any other condi ons that may affect its opera on. A guard or other parts that are damaged should be properly repaired or replaced. NEVER LEAVE MACHINE RUNNING UNATTENDED. - Page 6 SPECIFIC SAFETY INSTRUCTIONS CONT... NEVER POLISH SMALL WORKPIECES without them being properly held by pliers or clamps, or they will be ripped out of your hands and possibly cause harm to you or damage the item. DO NOT STAND IN FRONT OF THE POLISHER. Stand to one side of the Buffer and turn it “ON”. Wait at the side for one minute un l the machine comes up to full speed. There is always a possibility that debris from a glazed or damaged buffing wheel may be discharged towards the operator. ALLOW THE POLISHER TO REACH FULL SPEED BEFORE BEGINNING WORK. Hold the work piece securely, and slowly ease the work into the buffing wheel. Be careful of any sharp edges or corners that may catch on the wheel and be torn from your hands. DO NOT polish using the sides or the rear of the buffing wheels. Polish only on the wheel slightly below the wheel cen‐ tre. NEVER STOP THE POLISHER BY FORCING MATERIAL INTO THE WHEEL. Let the polisher stop rota ng on its own. RESURFACE/DRESS THE POLISHING WHEEL OFTEN. This will keep the wheel surface free of residue and glaze. Use a metal rake or s ff wire brush. THE DIAMETER OF THE POLISHING WHEELS WILL DECREASE WITH USE. Replace the wheels when they become too small for effec ve buffing, or when the sewn or bonded material break apart. REPLACE A DAMAGED POLISHING WHEEL IMMEDIATELY. A damaged wheel can discharge debris at a high velocity to‐ wards the operator. Tighten the spindle nuts just enough to hold the wheels firmly on the arbors. DO NOT over ghten the spindle nuts. Only use the wheel flanges provided with the polisher. When selec ng a replacement wheel, use only properly sized wheels, and verify that the wheel has a higher RPM ra ng than the maximum RPM of the Buffer. GUARANTEE This SIP Bench Polisher is covered by a 24 month parts and labour warranty covering failure due to manufacturers defects. This does not cover failure due to misuse or opera ng the product outside the scope of this manual ‐ any claims deemed to be outside the scope of the warranty may be subject to charges Including, but not limited to parts, labour and carriage costs. This guarantee does not cover consumables such as polishing wheels. Contact the seller for returns informa on. Proof of purchase will be require to honour the warranty 6 ...
- Page 7 GETTING TO KNOW YOUR BENCH POLISHER Item Descrip on Item Descrip on 1 Inner Flange Washer 6 Polishing Wheel 2 Arbor Bush 7 Outer Flange Washer 3 Sha Machined Flat Surface 8 Retaining Nut 4 Motor 9 Base c/w Moun ng Holes 5 Sha / Spindle 10 ON / OFF Switch *Image may vary from actual product. 7 ...
-
Page 8: Electrical Connection
You must ensure that the risk of electric shock is minimised by the installa on of appropriate safety devices; A residual current circuit Breaker (RCCB) should be incorporated in the main distribu on board. We also recommend that a residual current de‐ vice (RCD) is used. It is par cularly important to use an RCD with portable products that are plugged into a supply which is not protected by an RCCB. If in any doubt consult a qualified electrician. Connec ng to the power supply: This item is fi ed with a standard 230v ~ 13 amp type plug. Before using the polisher, inspect the mains lead and plug to ensure that neither are damaged. If any damage is visible have the product inspected / repaired by a suitably qualified person. If it is necessary to replace the plug a heavy duty impact resistant plug would be preferable The wires are coloured in the following way:‐ Yellow / Green ‐ Earth Blue ‐ Neutral Brown ‐ Live TECHNICAL SPECIFICATION Model 07698 SIP 8” Polisher / Buffer Voltage 220—240v ~ 50Hz Motor 550wa s Motor No Load Speed 2980rpm Motor Ra ng S2 / 30Mins Polishing / Buffing Wheel 8” / 200mm Ø Arbor / Motor Sha 5/8” / 16mm Spindle / Sha Length 3 1/2” / 85mm approx. ... - Page 9 OPERATING INSTRUCTIONS MOUNTING YOUR POLISHER / BUFFER: To avoid serious injury, IT IS HIGHLY RECOMMENDED to mount your Polisher / Buffer to a workbench before using. If the Pol‐ isher is not securely mounted, it could move or p over during opera ons, and possibly causing damage to your workpiece or buffer and any surrounding items. This Buffer comes with 2 moun ng holes (A) Fig.1 in the base to secure the Buffer to a solid support or workbench (moun ng hardware, support and workbench are not included). Moun ng Holes (A) Fig.1 9 ...
- Page 10 OPERATING INSTRUCTIONS CONT... FITTING THE POLISHING / BUFFING WHEELS (MOPS): B A C D Fig. 2 E Fit the spacer on the sha / spindle. Fig.2 A Fit the inner flange washer. Fig.2 B Place the polishing wheel (mop) onto the sha and up to the inner flange washer. Fig.2 C Place the outer flange washer onto the sha up to the polishing wheel. Fig.2 D Fit & ghten the retaining nut, without crushing the wheel. Fig.2 E The sha threaded ends are handed LH and RH. Repeat for both sides. NOTE: When in use, the wheel rota on will ghten the retaining nut. 10 ...
- Page 11 OPERATING INSTRUCTIONSCONT…. POLISHING / BUFFING Plug the polisher into the mains power supply. Switch the polisher on. Slowly bring the workpiece into contact with the polishing wheel. See Fig.3 4 . A er use, unplug the polisher from the mains power supply. Clean the polisher so it ready for when you use it next. Contact the wheel in the areas in the image below. Fig.3 Don’t contact the wheel outside of this quadrant. Polishing compound will be require to achieve your desired finish. Compound is not supplied with this item. A: Polishing Quadrant A Fig.3 11 ...
-
Page 12: Maintenance
MAINTENANCE Warning: Always make sure the polisher is unplugged from the mains supply prior to any maintenance. Inspect the buffing / polishing wheels regularly. Replace when worn. Keep the buffer/polisher clean and dry. DO NOT use abrasives. The motor and bearing are sealed units and require no maintenance CLEANING & STORAGE Clean the exterior the machine if & when required. Use a mild detergent or mild solvent. Never immerse the buffer/polisher in water. Keep any cooling vents on the base of the polisher free of debris. 12 ... -
Page 13: Exploded Drawing
EXPLODED DRAWING 13 ... - Page 14 PARTS LIST Item Description Qty Item Description Hex Nut M16 LH Grommet Flange Switch Wheel 200 x 10 16mmØ Screw M5 x 8mm Spacer Switch Plate Hex Nut M5 Base End Cover Hex Nut M8 Shim Washer Capacitor Bracket Bearing 6203 Capacitor Mains Lead...
-
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY 15 ... - Page 16 FOR HELP OR ADVICE ON THIS PRODUCT PLEASE CONTACT YOUR DISTRIBU‐ TOR, OR SIP DIRECTLY ON: Please dispose of packaging for the product in a responsible manner. It is TEL: 01509 500400 suitable for recycling. Help to protect the environment, take the packag‐ EMAIL: ing to the local amenity p and place into the appropriate recycling bin. sales@sip‐group.com Never dispose of electrical equipment or ba eries in with your domes c or waste. If your supplier offers a disposal facility please use it or alterna ve‐ customerservice@sip‐ ly use a recognised recycling agent. This will allow the recycling of raw group.com materials and help protect the environment. www.sip‐group.com *Photographs are for illustra on purposes only. Ref: 12NOV2022 ...
