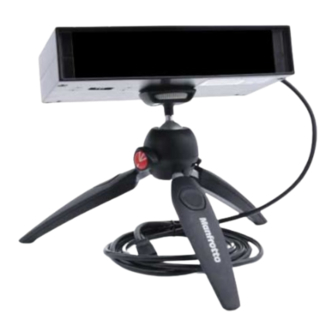

SR Research EyeLink Portable Duo Quick Start Manual

1
Basic PC Setup
With the Laptop Host PC (included) powered off, connect its power supply. Set up the basic
components of the Display PC as you would any other computer. The Display PC can be any
modern 15" or 17" laptop computer running on Windows (XP, Vista, 7, or 10), Mac OS X
(10.6.8 or later), or Linux PC with an Ethernet port. This computer may have been optionally
acquired from SR Research.
Laptop Host PC
4
Host PC to Display PC Connection
Using the Ethernet cable supplied, connect the Host PC
Ethernet port to an Ethernet port on your Display PC.
Configure that Display PC Ethernet port with the
following static IP address:
IP Address: 100.1.1.2 Subnet Mask: 255.255.255.0
Leave the default gateway and other settings blank.
See Chapter 6 of the EyeLink Portable Duo Installation Guide for detailed instructions
EyeLink Portable Duo Quick Start Guide
Surge Protector
Display PC
5
Test that the Setup is Working
Turn on the Host PC to verify that the Host
Application starts. Once the Host PC is up and
running you should see the Camera Setup
screen.
Display PC
R
Laptop Host PC with Laptop Mount
2
Attach the Laptop Mount to the Camera
Adjust the span of the laptop mount with the
supplied tools to fit the intended Display laptop
PC. Place the camera upside down on a desk
with the screw holes facing up, then the laptop
mount on the camera, and install the two screws
through the mount and into the camera with the
supplied tools. Place the laptop mount on the
Display laptop PC with the two side rails resting
on the edges of the laptop.
See Chapter 4 of the EyeLink Portable Duo Installation Guide for detailed instructions
3
Camera Connection
Connect both plugs at the end of
the eye tracker's cable into the USB
3.0 ports on the Host PC.
To exit to the File Manager from the Host Application, press Ctrl-Alt-Q (or click the "Exit"
button on the Setup screen and then select "Exit"). The File Manager interface is illustrated
below. You can use the buttons highlighted below to start the Host PC Application or shut
down the Host PC.
Starts Host Application
2
Install two camera screws with the supplied Allen Key
3
Version 1.02L
Shuts down Host PC
Continued
on back
