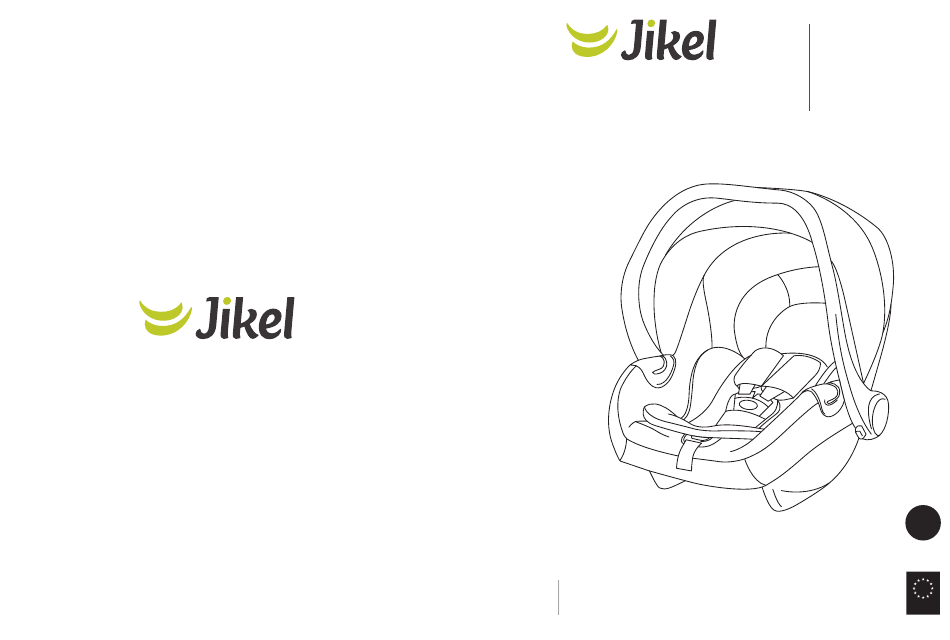

- Page 1 PLUTO Carseat F R A N C E D E S I G N E D USER MANUAL 0-13Kg IMPORTANT www.jikelbaby.com Retain for Future Reference & Read Carefully E C E R 0 4 /4 4...
-
Page 2: Table Of Contents
User Instruction Content 1 Application scope 2 Important notes 3 Vehicle related notes 4 Assembly indicator 4.1 Handle adjustment 4.2 Seat cushion and Canopy 4.3 Baby fixation and notes 4.4 Y-belt position adjustment 4.5 Installation in vehicle 4.6 Check the belt and make sure its route goes on correctly 5 Fabric covers Notes 5.1 Remove the canopy and fabric cover 5.2Fabric cover installation... -
Page 3: Application Scope
1.Application scope Certificated by ECE R44/04 , this baby safety seat is applicable for Group 0+ infants. Baby safety seat Group Range of baby weight 0-13kg BC100B Certification ● This baby safety seat is designed and tested with the European Children Ristraint System standard (ECE R44/04) . -
Page 4: Vehicle Related Notes
Operate the product may cause safety risk and put your child into dangers. ● Please follow the instruction to install this product. Make sure all parts are correctly assembled or stored. When using on a normal vehicle, please make sure the baby car seat is not stuck by car seat or vehicle door. ●... -
Page 5: Assembly Indicator
● Do not use this seat on side-facing or rear-facing car seats ( 1a 1b in drawing below). Only applicable for front-facing car seats. Crash statistic shows that children are safer in back row seats. ● Make sure the baby car seat is not stuck by foldable or movable seat and door. ? optional：Only applicable for seat with no airbags（1d）. -
Page 6: Handle Adjustment
4.1 Handle adjustment Level adjustment： ● Push the handle adjustment button on both sides ( Figure 1 A ) at the same time.Then rotate the handle towards the wanted position.Release the button when near the ideal position,adjust the handle slightly until you hear the ＂click＂. Level description (Figure 2 ): D .Balance position ——... -
Page 7: Baby Fixation And Notes
4.3 Baby fixation and notes Length adjustment: ● Extend the Y-shaped belt——press the adjusting button( Figure 5), mean while stretching out the belt. Note: Do not put shoulder pad. ● Push the red button on buckle to release Y-shaped belt. ●... -
Page 8: Installation In Vehicle
4.5 Installation in vehicle 1）Switch the seat handle to “carrier position”,then place this seat onto the back row car seat near the vertical cushion. The seat should be opposite to the driving direction ( Figure 12 ). 2）Pull out the car belt as long as possible. Place the lap belt over this seat and lock the car belt. Then put the lap belt into the belt route guider(Figure 13). -
Page 9: Fabric Covers Notes
5.Fabric covers notes 5.1 Remove the canopy and fabric cover ● Pull out the fabric cover fixed PP board (Figure 19). ● Loosen the canopy fixed black elastic (Figure 20). PP board ● Using the tool,pull the canopy button outward,pull the canopy rod upward,remove the canopy （Figure 21）. -
Page 10: Fabric Cover Installation
5.2Fabric cover installation ● Put the fabric cover on the plastic shell ,insert the cover along the edge of the car seat shell ,and fix well the safety belt guider cover(Figure 26) Insert the canopy rod into the fixed slot(Figure 27). ●... -
Page 11: Cover Cleaning
6.2 Cover cleaning Baby safety seat must not be used without cover. ● The cover can be removed. Clean the cover in warm water ( lower than 30 ℃ ) with mild detergent, dry naturally. No drying. ● Plastic parts can be cleaned with soap water. Do not use strong detergent ( for example, dissolvant ). ●...
